Throttle Position Sensor: Testing and Inspection
NO. 2

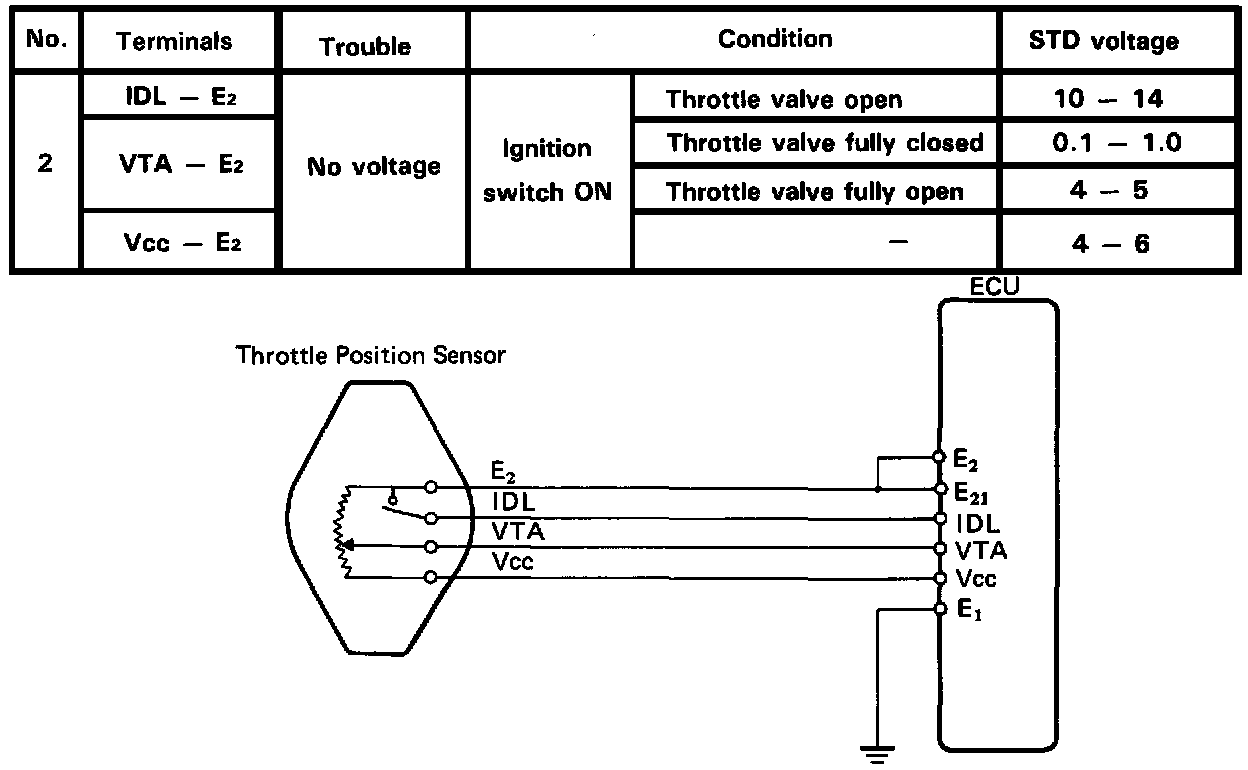

Test No. 2 Summary:

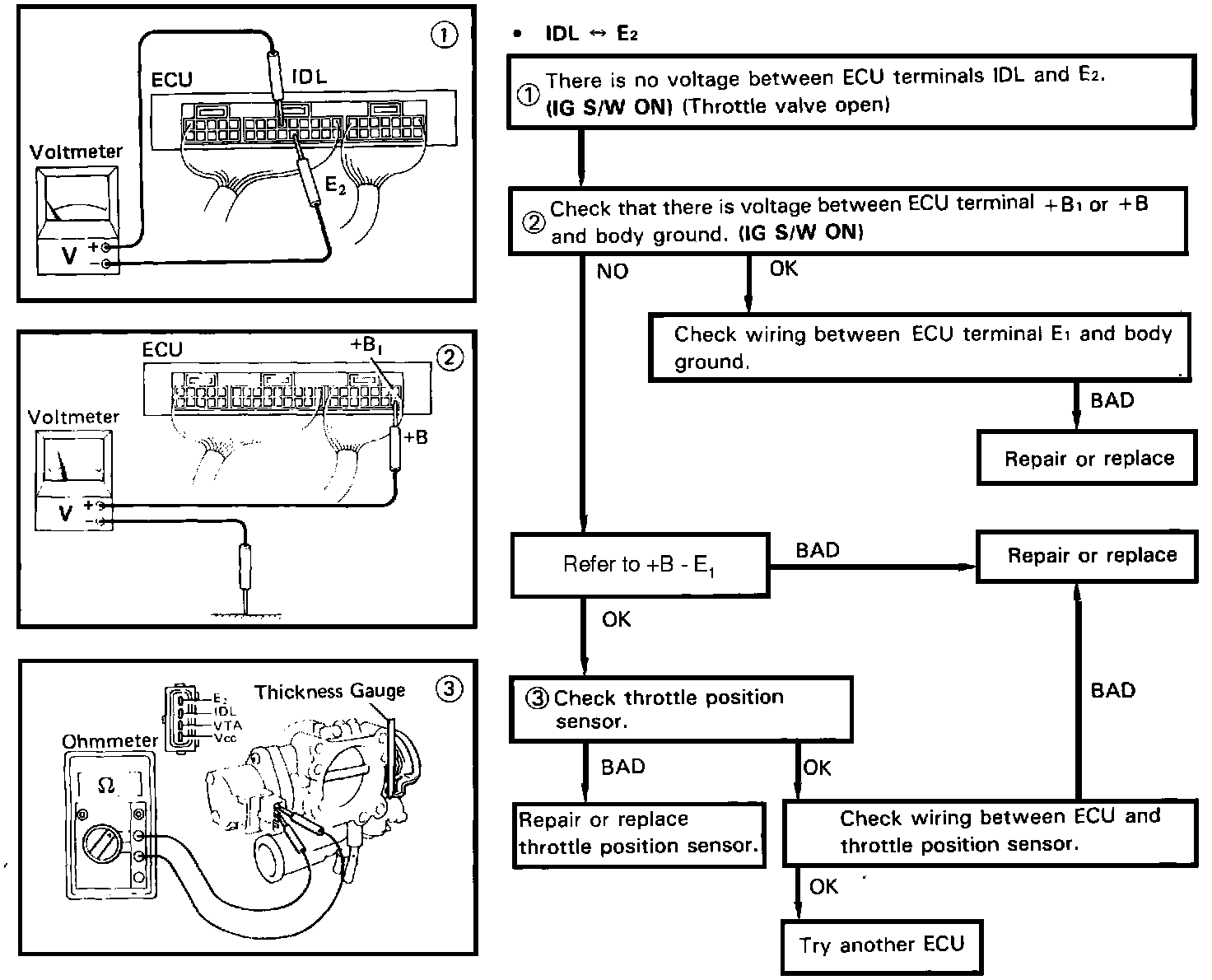

IDL - E2:

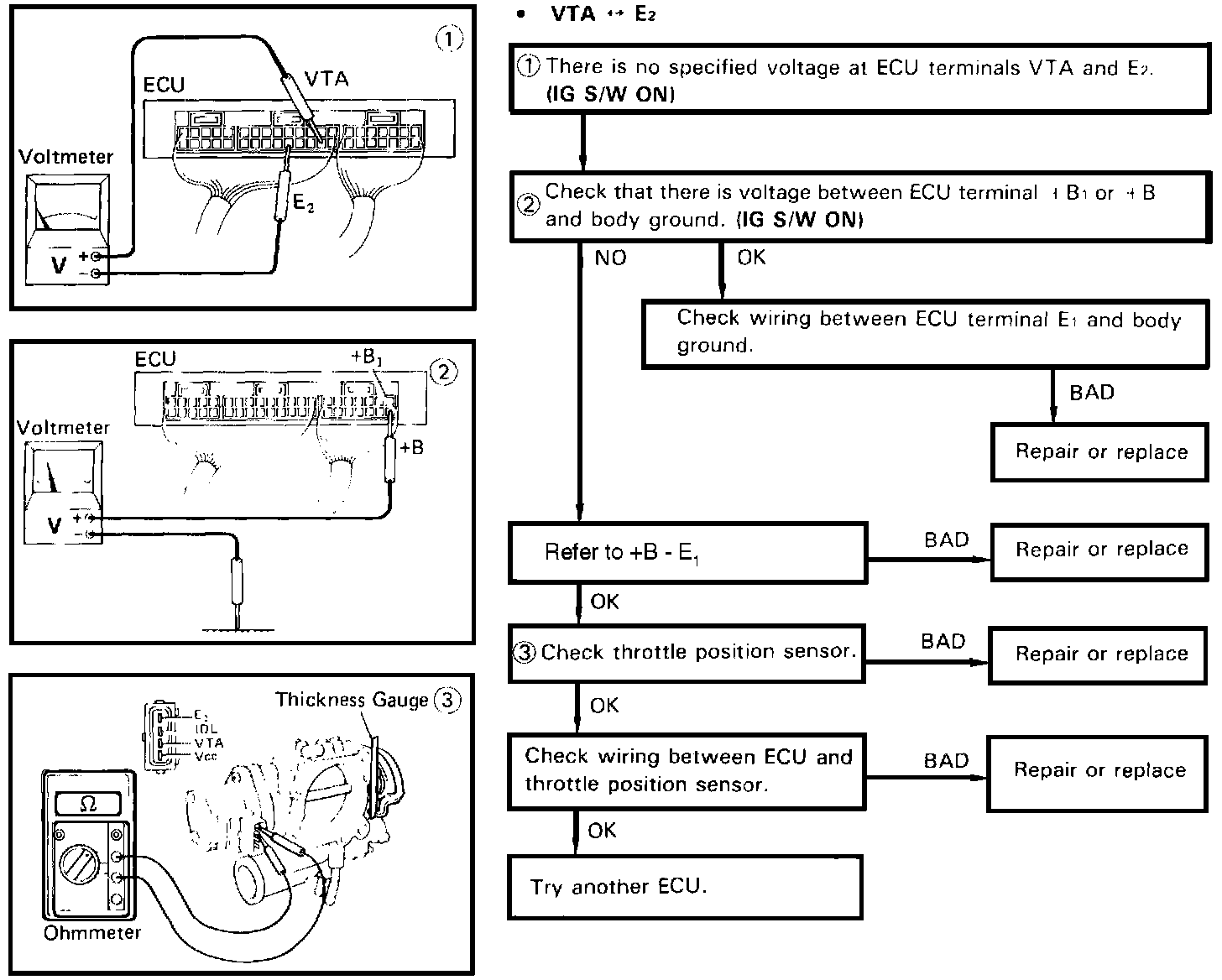

VTA - E2:
Vcc - E2:
