Toyota
>>
1987
>>
Corolla FX L4-1587cc 1.6L DOHC (4A-GE)
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Locations
>>
Component Locations
Component Locations

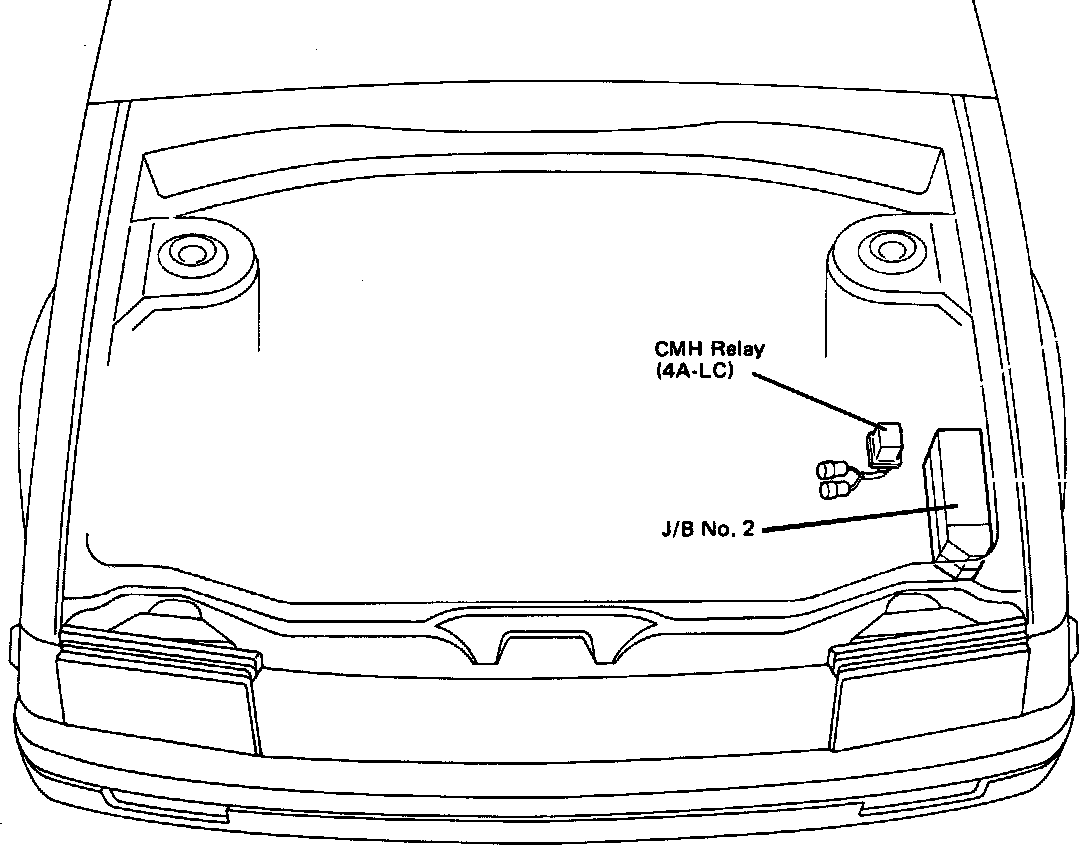

J/B No.2 Location:

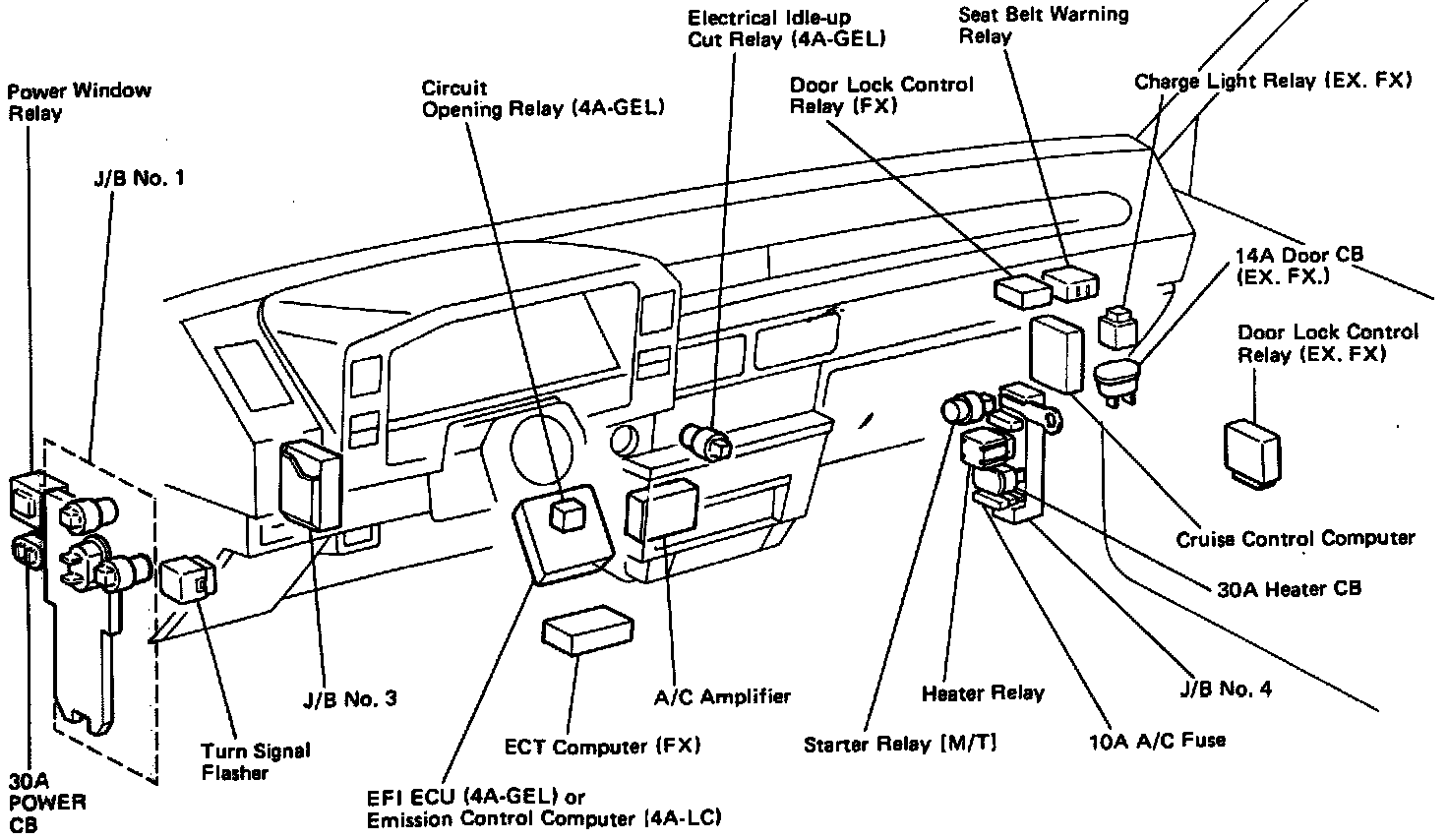

Relays And Circuit Breakers Locations - Interior:
