Weatherstrip - Liftback Door Molding Modified
REFERENCE BODYNUMBER 036
DATE 09-26-86
MODEL ST64, ST65

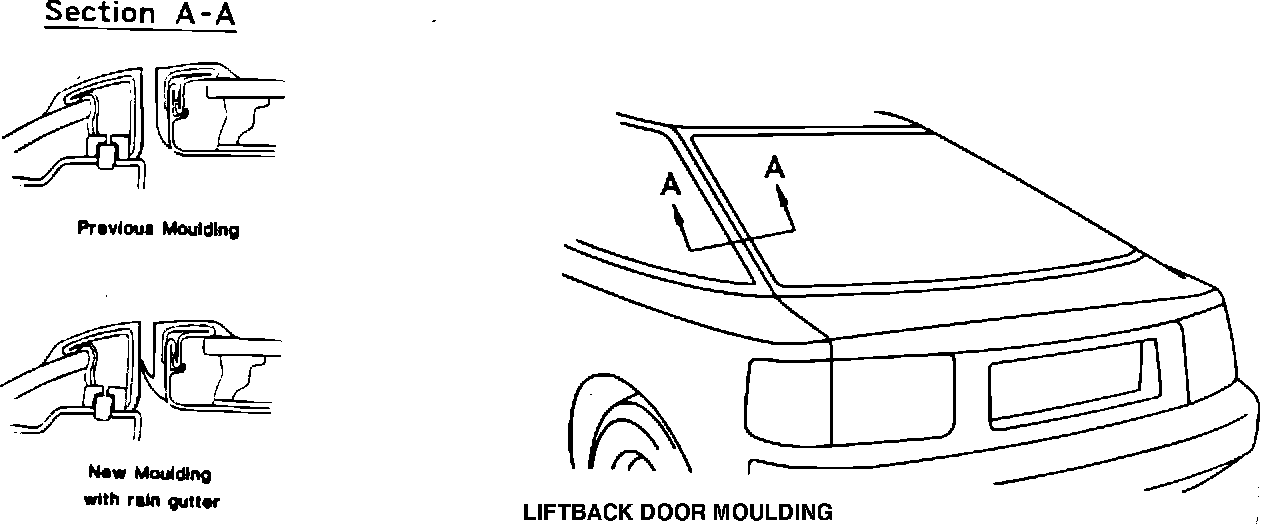

LIFTBACK DOOR MOULDING:
To prevent water from draining on the rear speakers when the liftback door is opened, new liftback side mouldings, which include a rain gutter, are now being installed on liftback Celicas..
PRODUCTION EFFECTIVE:
From VIN Production Date
JT2ST65*#G7047823 June, 1986
JT2ST64*#G7066346 June, 1984
PART NUMBER INFORMATION:
Previous Part Number New Part Number Part Name
75501-20030 75501-20031 Moulding, back glass
75502-20010 75502-20011 Moulding, back glass
Note -- The new parts can be used on all Celica liftback models.
INSTALLATION:
Refer to the 86 Celica Repair manual, pg. BO 28, for installation instructions.
