Toyota
>>
1987
>>
Celica L4-1998cc 2.0L DOHC (3S-GE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Diagrams
>>
Electrical Diagrams
>>
Overdrive
Overdrive

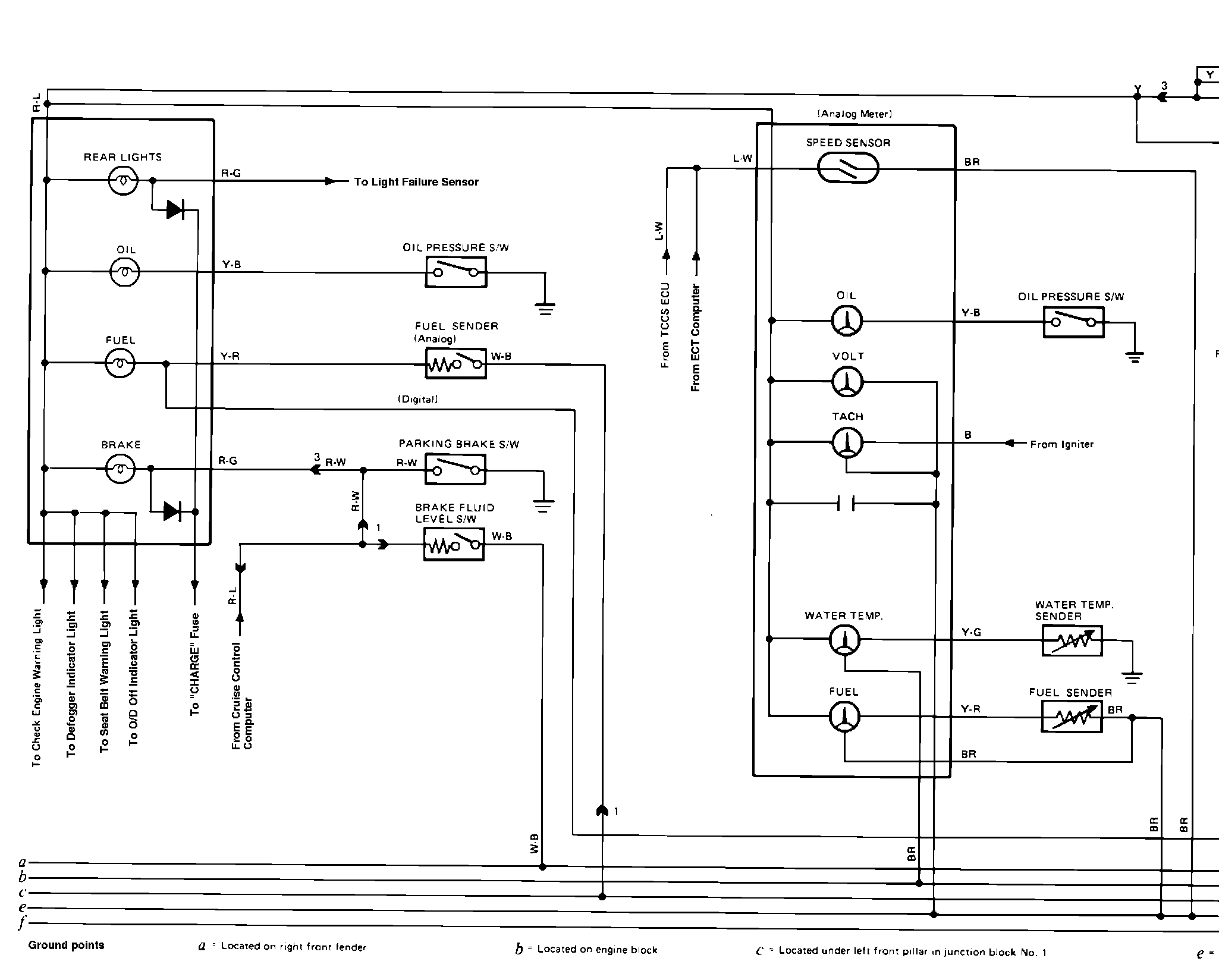

kE����I�(��Fig. 2d complete body & chassis wiring:
