Wiring Diagram

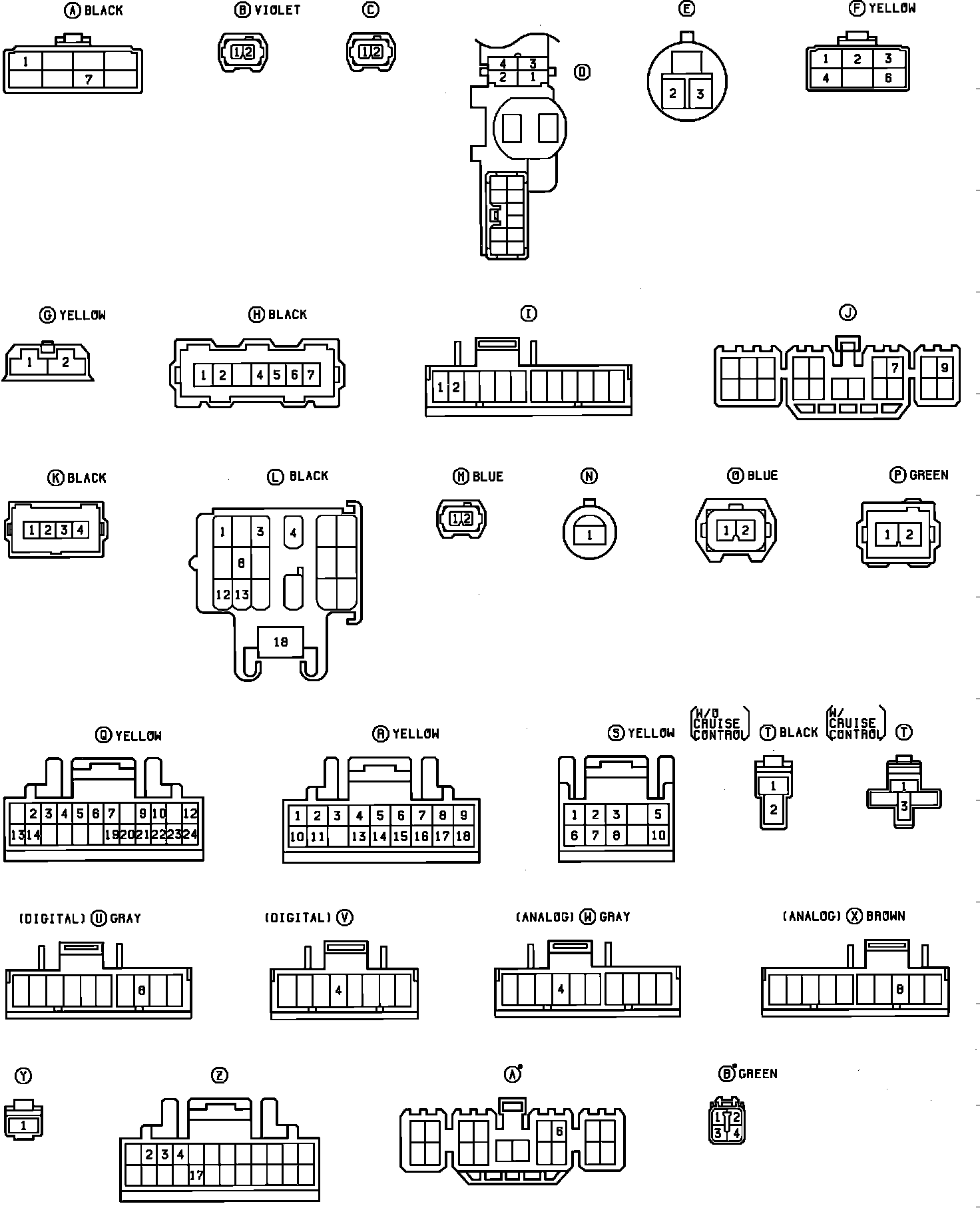

Fig. 169 EFI Wiring Diagram.:

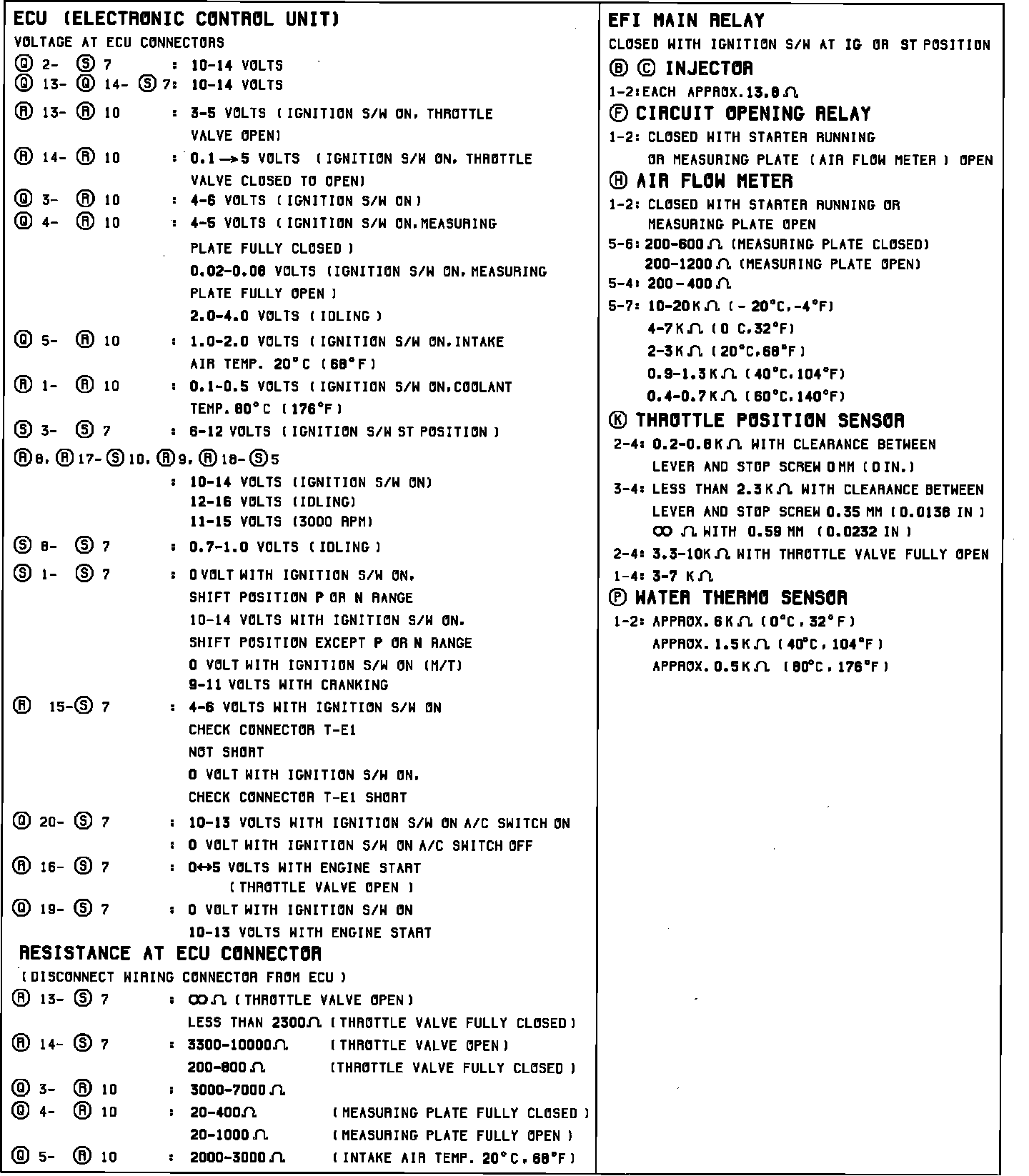

Fig. 170 EFI Wiring Diagram.:

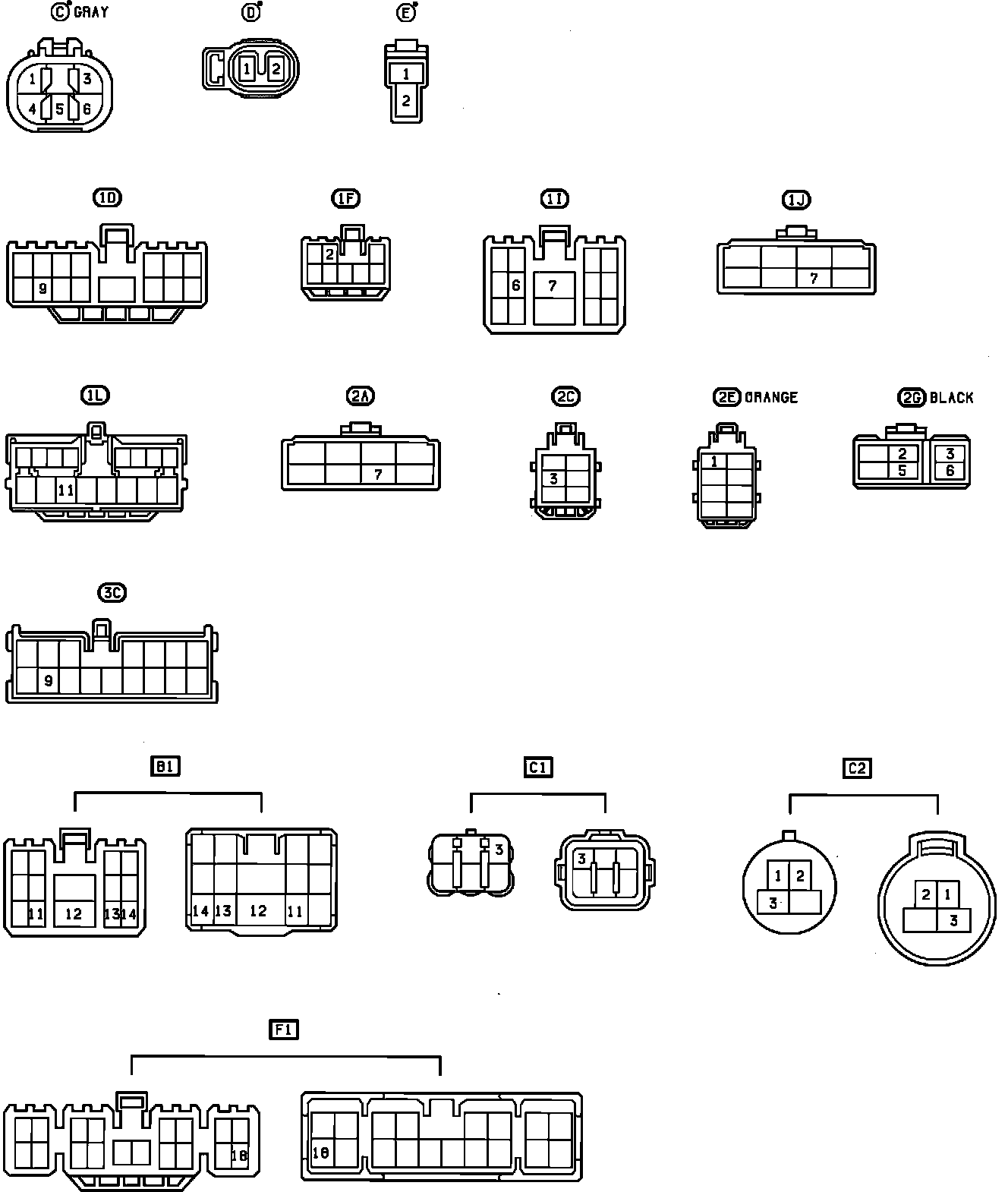

Fig. 171 EFI Wiring Diagram.:

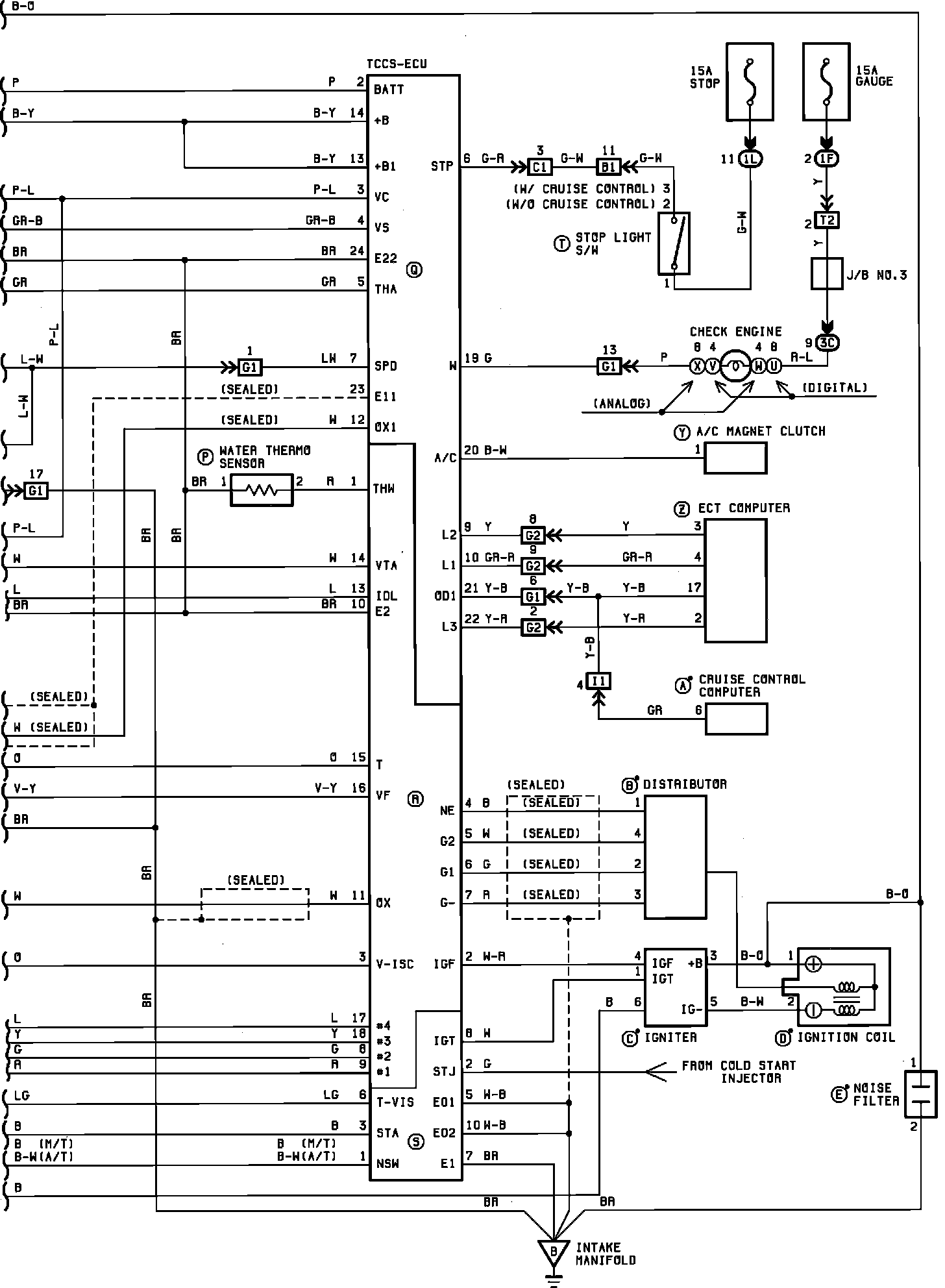

Fig. 172 EFI Wiring Diagram.:

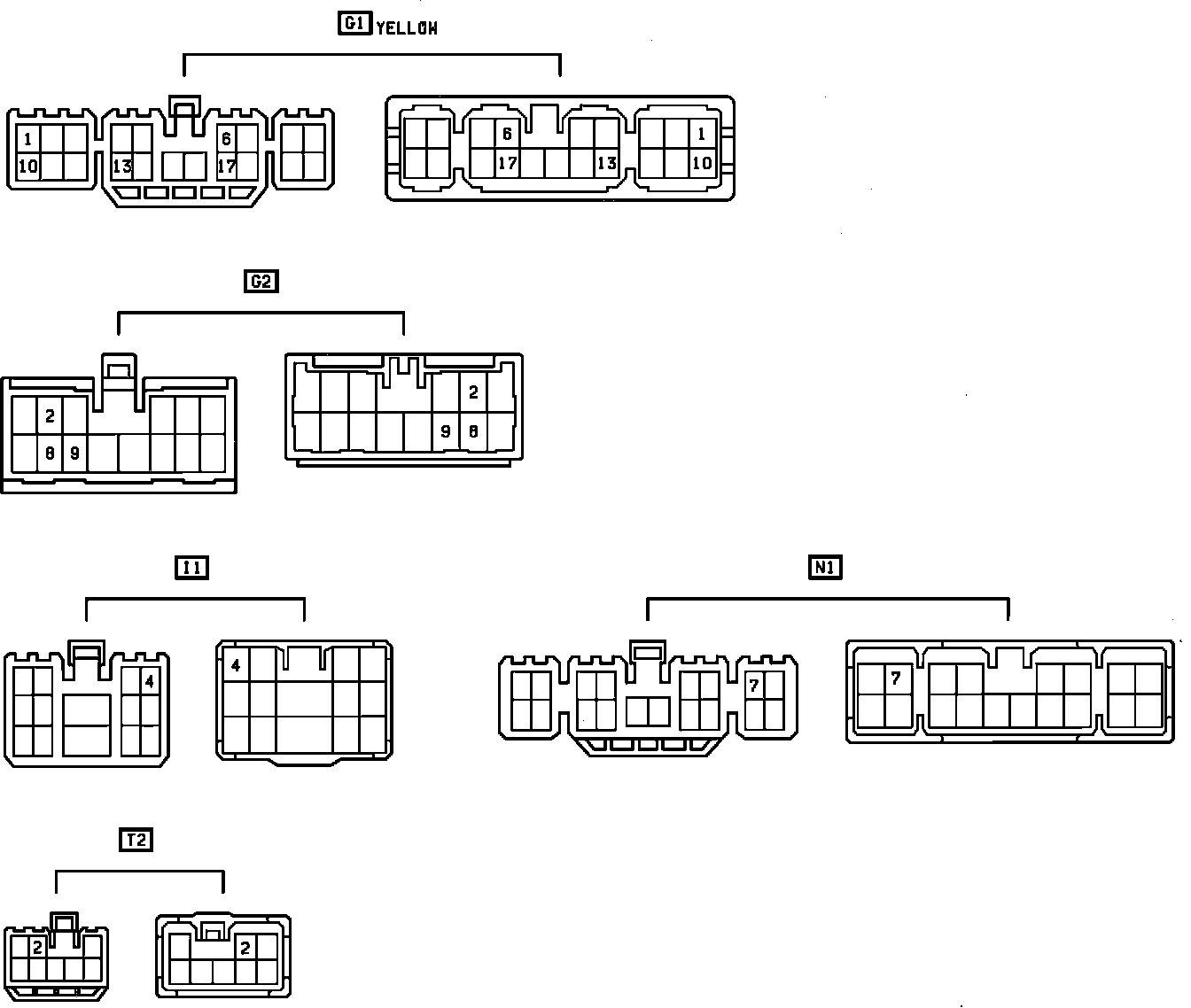

Fig. 173 EFI Wiring Diagram.:

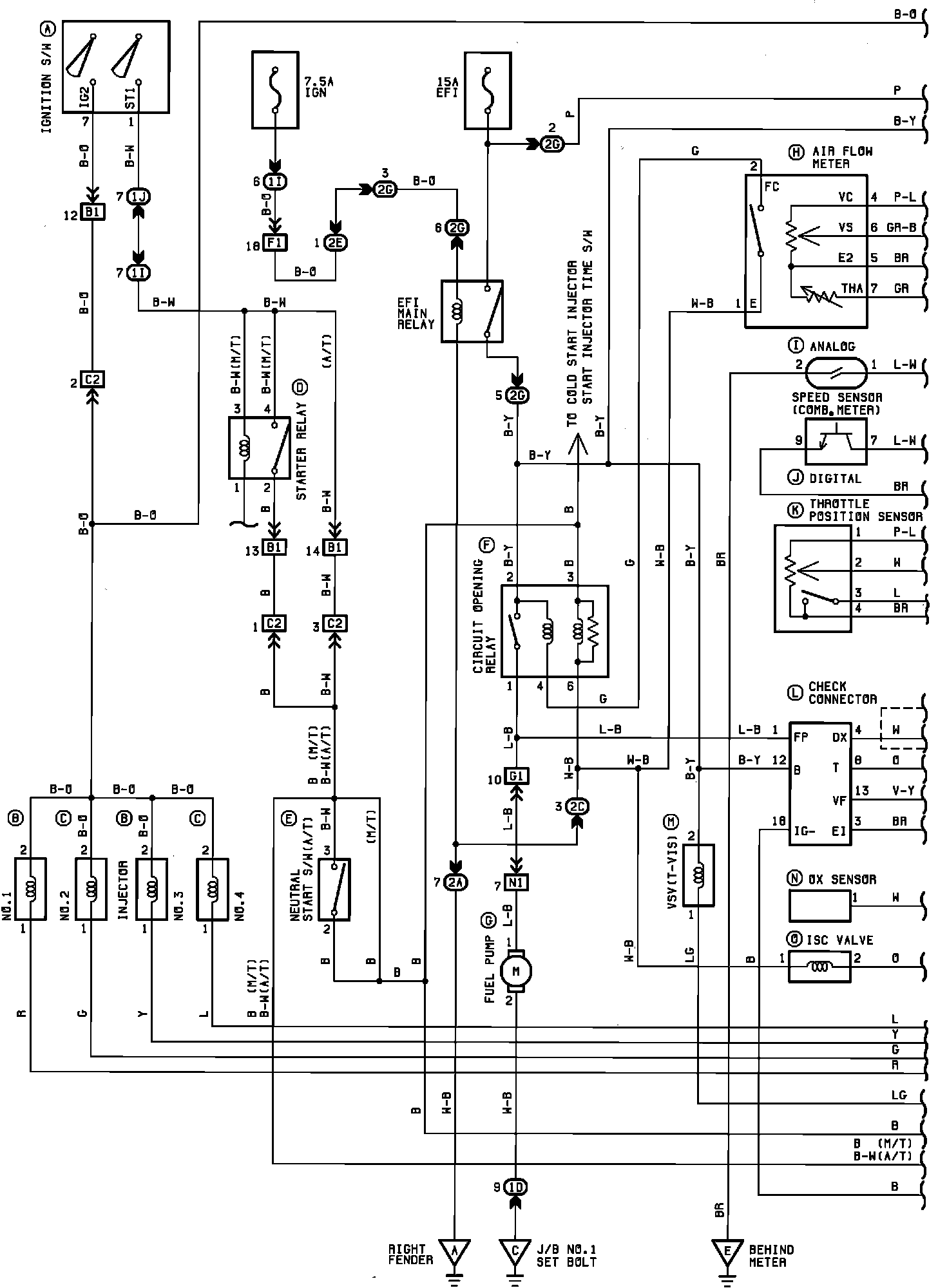

Fig. 174 EFI Wiring Diagram.:
