Receiver Dryer: Service and Repair

REMOVAL
1. Recover refrigerant from refrigeration system.

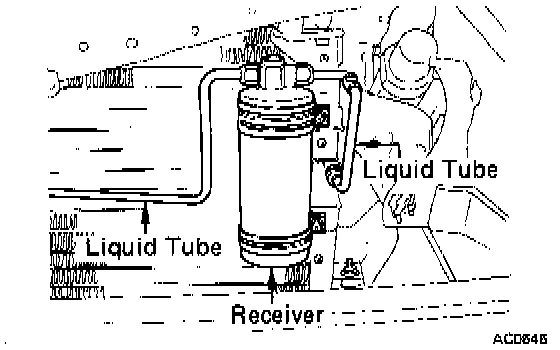

2. Disconnect two liquid line tubes from receiver.

NOTE: Cap the open fittings immediately to keep moisture out of the system.

3. Remove receiver from receiver holder.

INSTALLATION
1. Install receiver in receiver holder.

NOTE: Do not remove the blind plugs until ready for connection.

2. Connect two liquid line tubes to receiver.
Torque: 13 Nm (10 ft lb)
3. If receiver was replaced, add compressor oil to compressor.
Add 20 cc (0.7 fl.oz.)
4. Evacuate, charge and test refrigeration system.
Refill capacity: 600-750 g (21.1-26.5 oz)
