Celica L4-1998cc 2.0L DOHC (3S-GE)
>>
Repair and Diagnosis
>>
Cruise Control
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

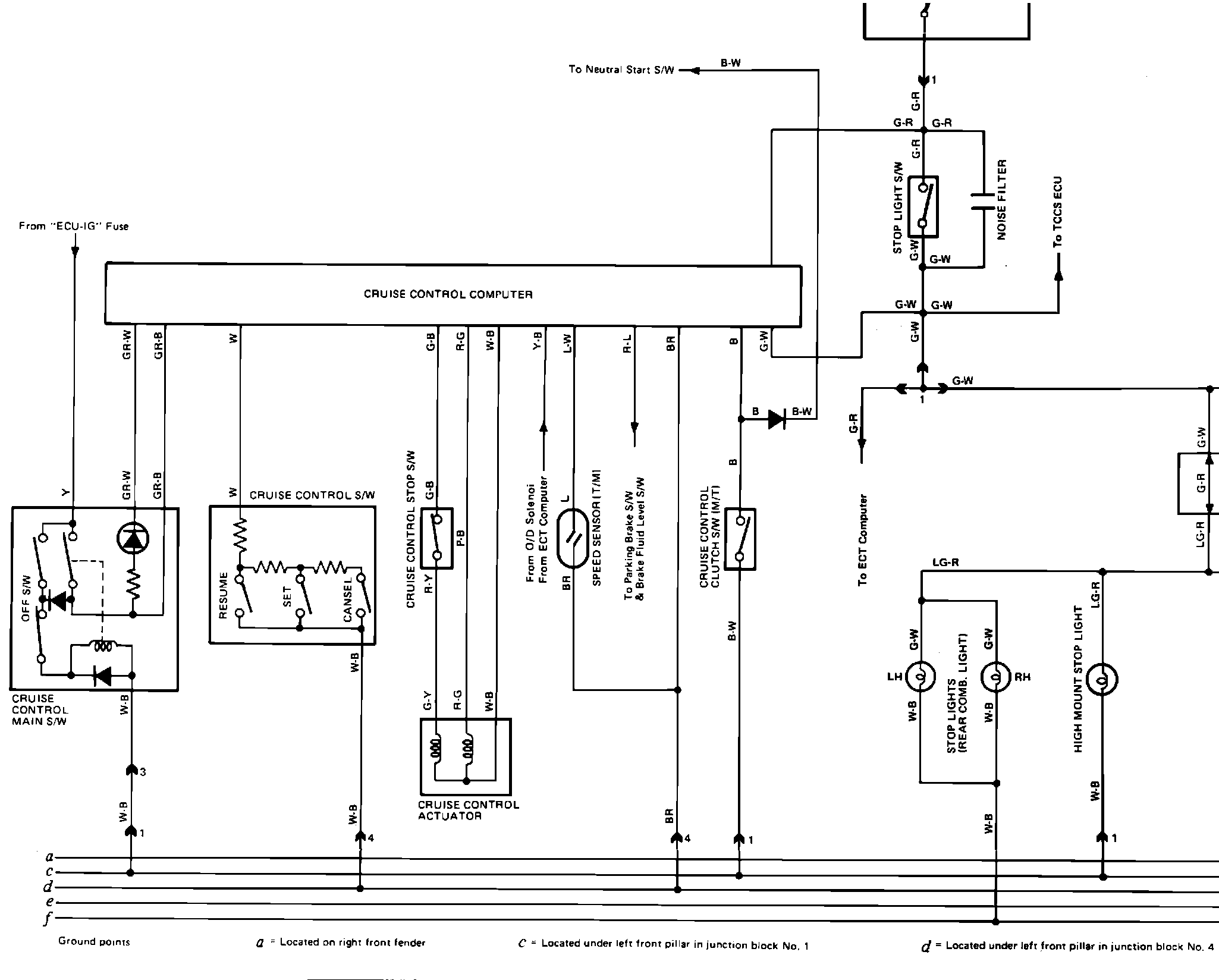

FZ�I�����X��O��$�����Fig. 2e complete body & chassis wiring:
