Speed Sensor (A140E)

REMOVAL OF SPEED SENSOR




1. REMOVE TRANSMISSION CASE PROTECTOR




2. DISCONNECT SPEED SENSOR CONNECTOR

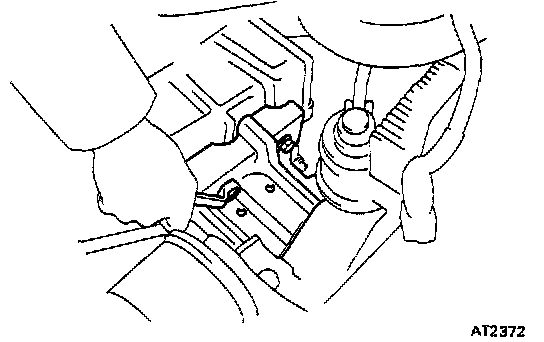

3. REMOVE BRACKET

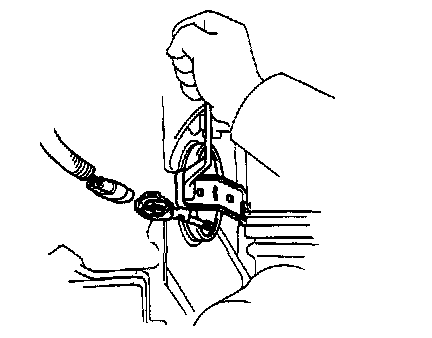

4. REMOVE SPEED SENSOR AND 0-RING


INSPECTION OF SPEED SENSOR
INSPECT SPEED SENSOR

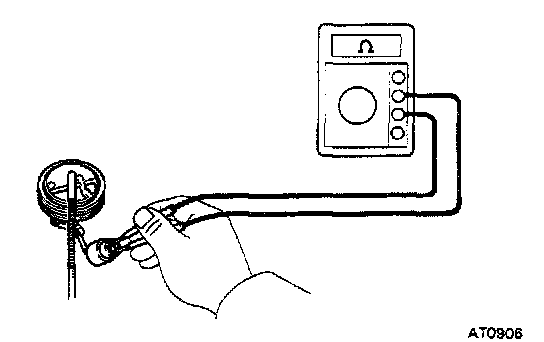

Connect an ohmmeter to the speed sensor and check that the meter deflects when the sensor is repeatedly brought close to a magnet and removed from it.


INSTALLATION OF SPEED SENSOR

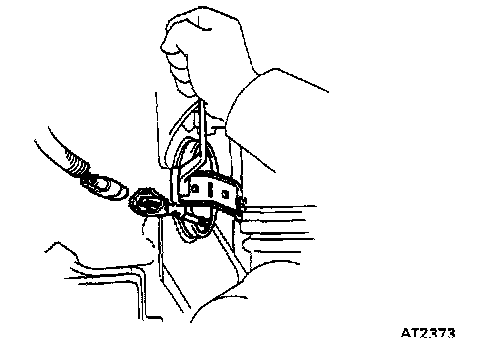

1. INSTALL SPEED SENSOR AND 0-RING

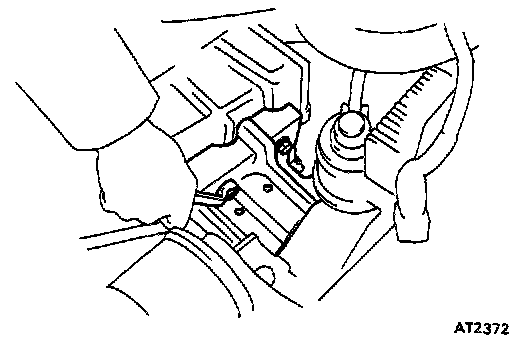

2. INSTALL BRACKET
Torque: 130 kg.cm (9 ft.lb, 13 N.m)




3. CONNECT SPEED SENSOR CONNECTOR




4. INSTALL TRANSMISSION CASE PROTECTOR
