Replacement of Oil Pump O-Ring
REPLACEMENT OF OIL PUMP 0-RING1. REMOVE OIL PUMP
(a) Position the transmission with the oil pump facing upward.
(b) Remove the seven bolts.

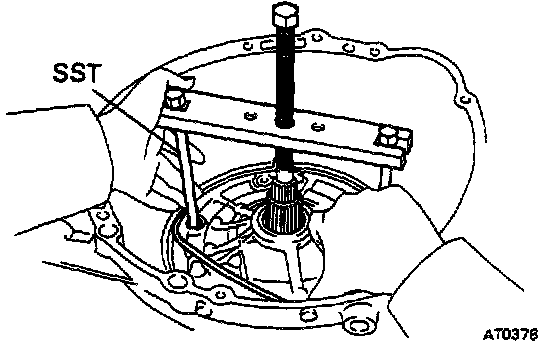

(c) Remove the oil pump until the 0-ring can be removed with SST.
SST 09350-32013(09351-32061)
(d) Temporarily install the bolt.
2. REMOVE 0-RING
3. INSTALL NEW 0-RING
4. INSTALL OIL PUMP MOUNTING BOLT
Tighten the seven bolts gradually and uniformly.
Torque: 225 kg.cm (16 ft.lb 22 N.m)
