Post Assembly

POST ASSEMBLY
1. INSTALL MANUAL SHAFT AND LEVER
2. INSTALL PARKING LOCK PAWL
3. INSTALL PARKING LOCK ROD AND BRACKET




4. INSTALL NEW OVERDRIVE CLUTCH APPLY GASKET AND NEW OVERDRIVE BRAKE GASKET

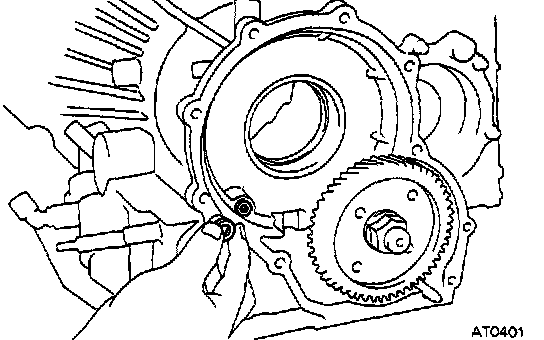

Coat the new gaskets with petroleum jelly, and install them onto the case.

5. INSTALL OVERDRIVE UNIT

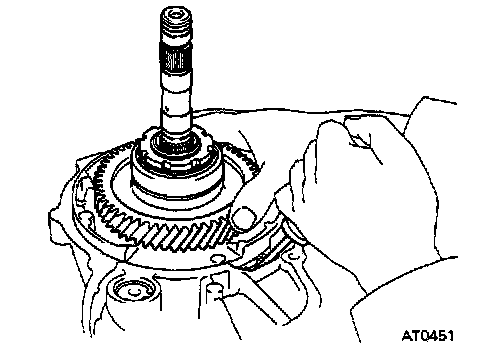

(a) Install the intermediate shaft into the overdrive case.




(b) Place the overdrive unit over a new gasket. Be sure to install the intermediate shaft into the case.

NOTE: Do not damage the bushing and oil seal ring.

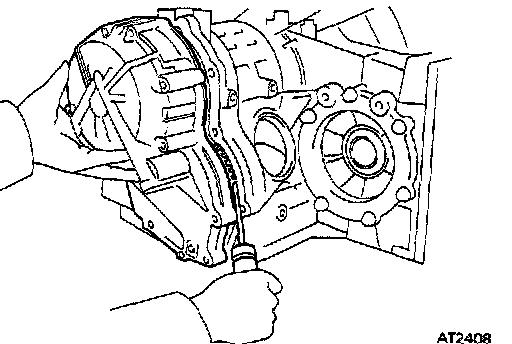

(c) Turn the counter driven gear with a screw driver to install the overdrive unit. Tighten the bolts.

Torque: 250 kg.cm (18 ft.lb, 25 N.m)

6. INSTALL VALVE BODY
7. INSTALL SPEED SENSOR
8. INSTALL OIL PAN
9. INSTALL SPEEDOMETER DRIVEN GEAR
10. INSTALL NEUTRAL START SWITCH
