Home >> Toyota >> 1987 >> Camry Wagon L4-2.0L (3S-FE) >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Power Distribution Relay >> Diagrams

Power Distribution Relay: Diagrams

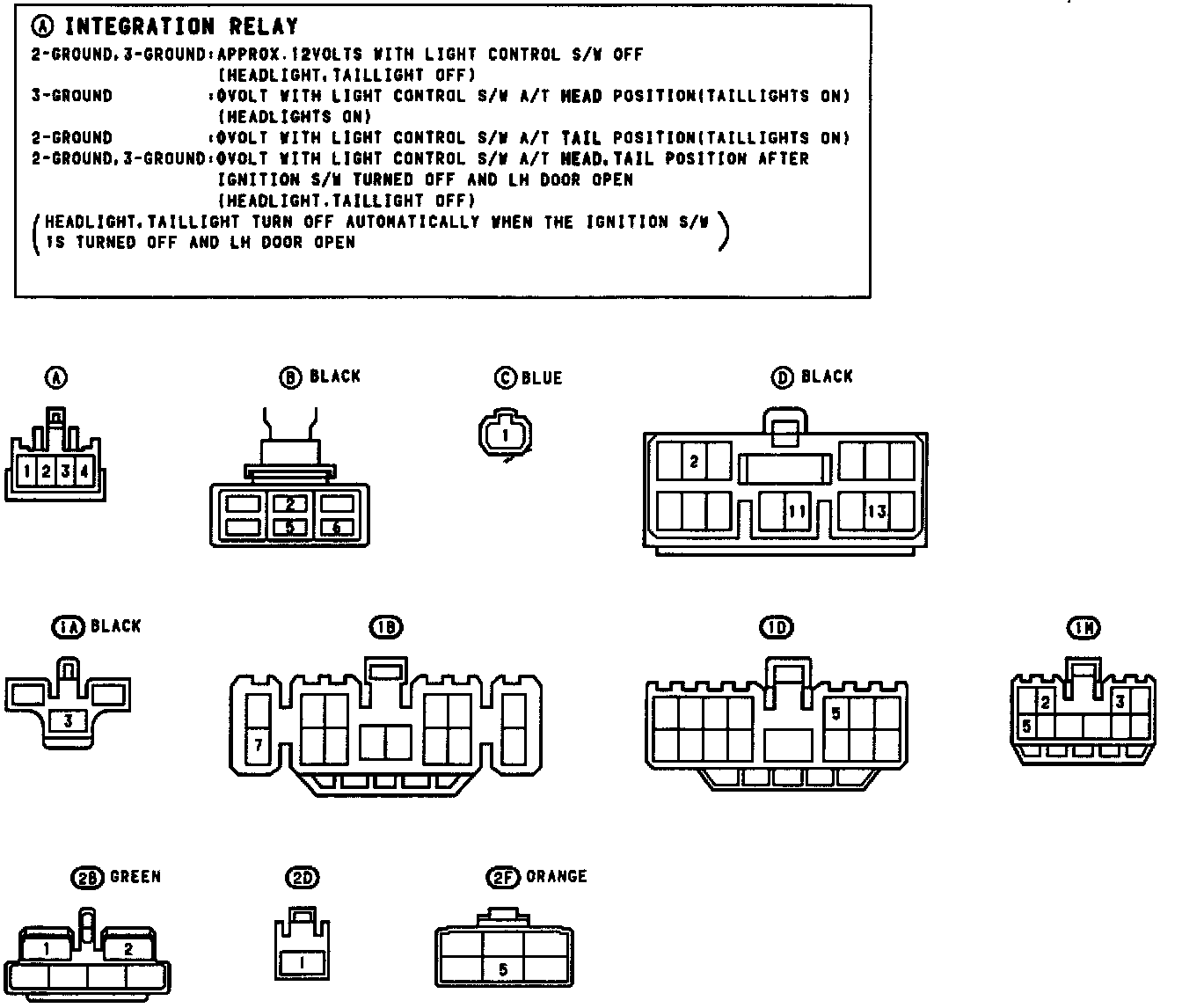

Light Auto Turn Off System Connectors:
