Fan Relay Number 3

Testing Condenser Fan Relay Number 3:

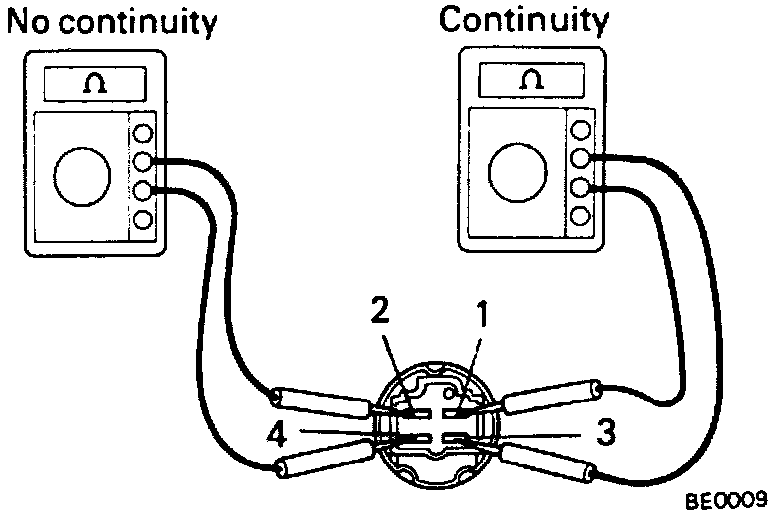

INSPECT RELAY CONTINUITY

Check for continuity between terminals 1 and 3. No continuity should be between terminals 2 and 4. If not as specified, replace the relay.

Testing Condenser Fan Relay Number 3:

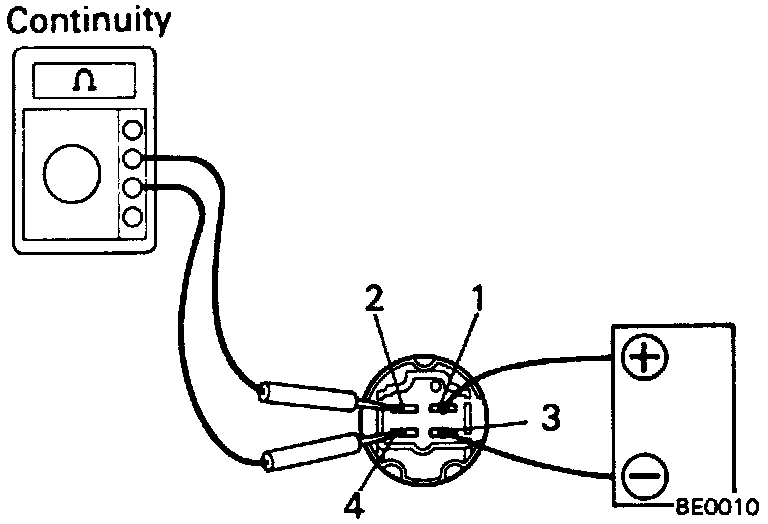

INSPECT RELAY OPERATION


Apply battery voltage as shown in the illustration. Check for continuity between terminals 2 and 4. If operation is not as specified, replace the relay.
