Fan Relay Number 2

Testing Condenser Fan Relay Number 2:

INSPECT RELAY CONTINUITY

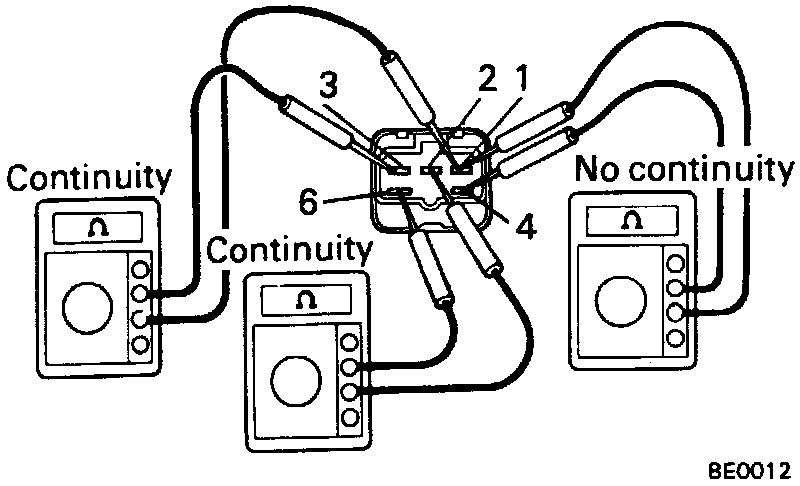

Check for continuity between terminals 6 and 2 and also 1 and 3. No continuity should be between terminals 1 and 4. If not as specified, replace the relay.

Condenser Fan Relay Number 2 Testing:

INSPECT RELAY OPERATION

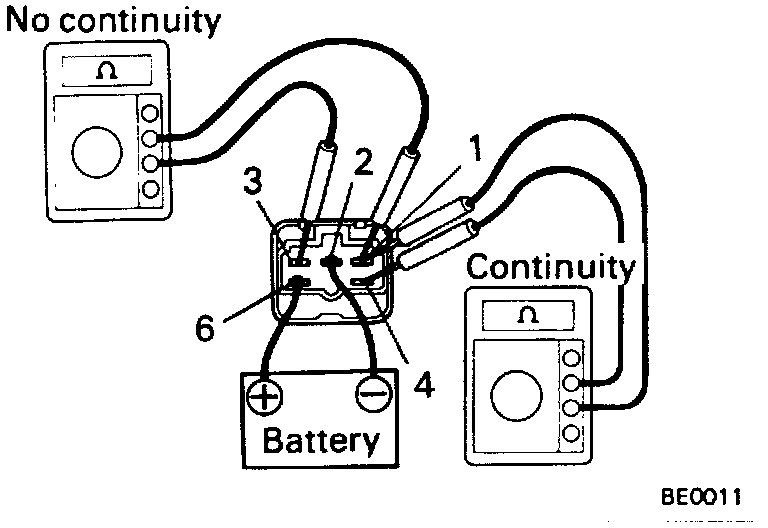

Apply battery voltage as shown in the illustration. Check for continuity between terminals 1 and 4 and for no continuity between terminals 1 and 3. If operation is not as specified, replace the relay.
