Starting and Ignition Systems Circuit Diagram

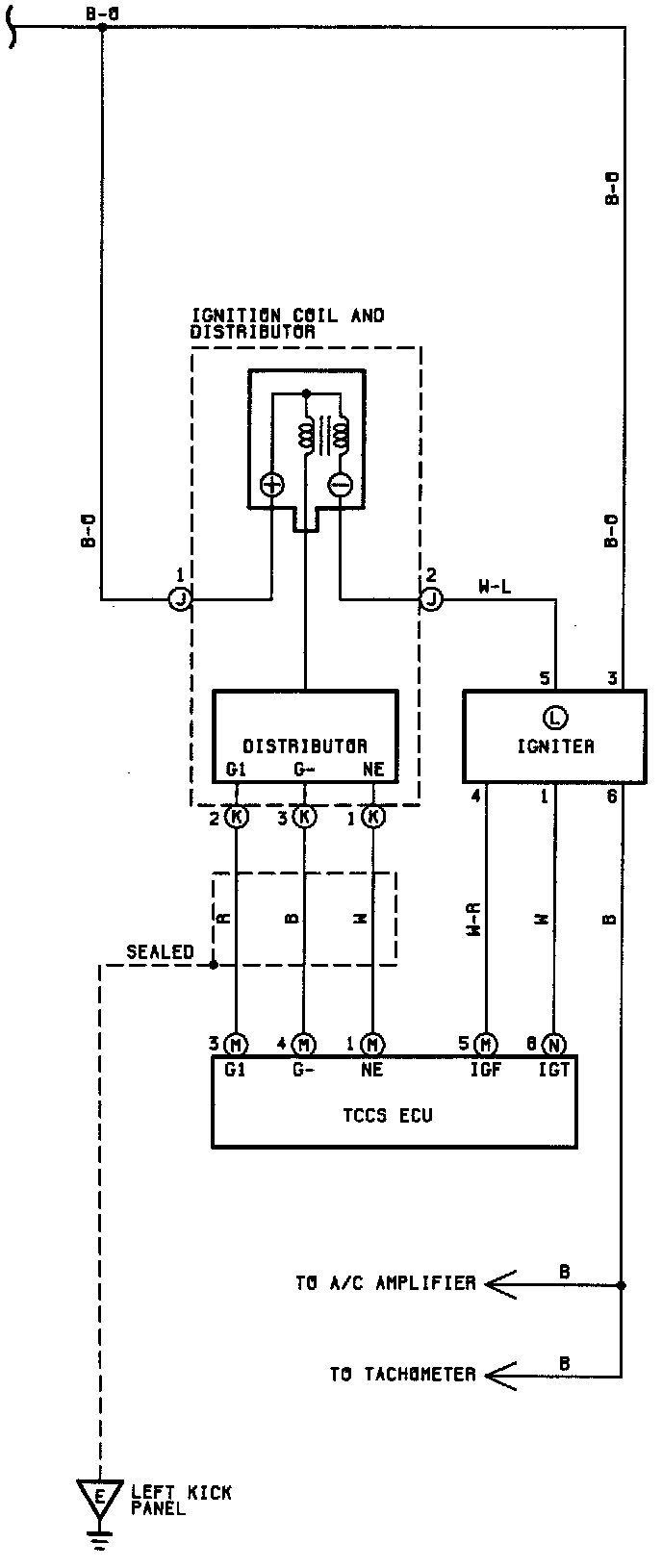

Starting And Ignition Systems Diagram:

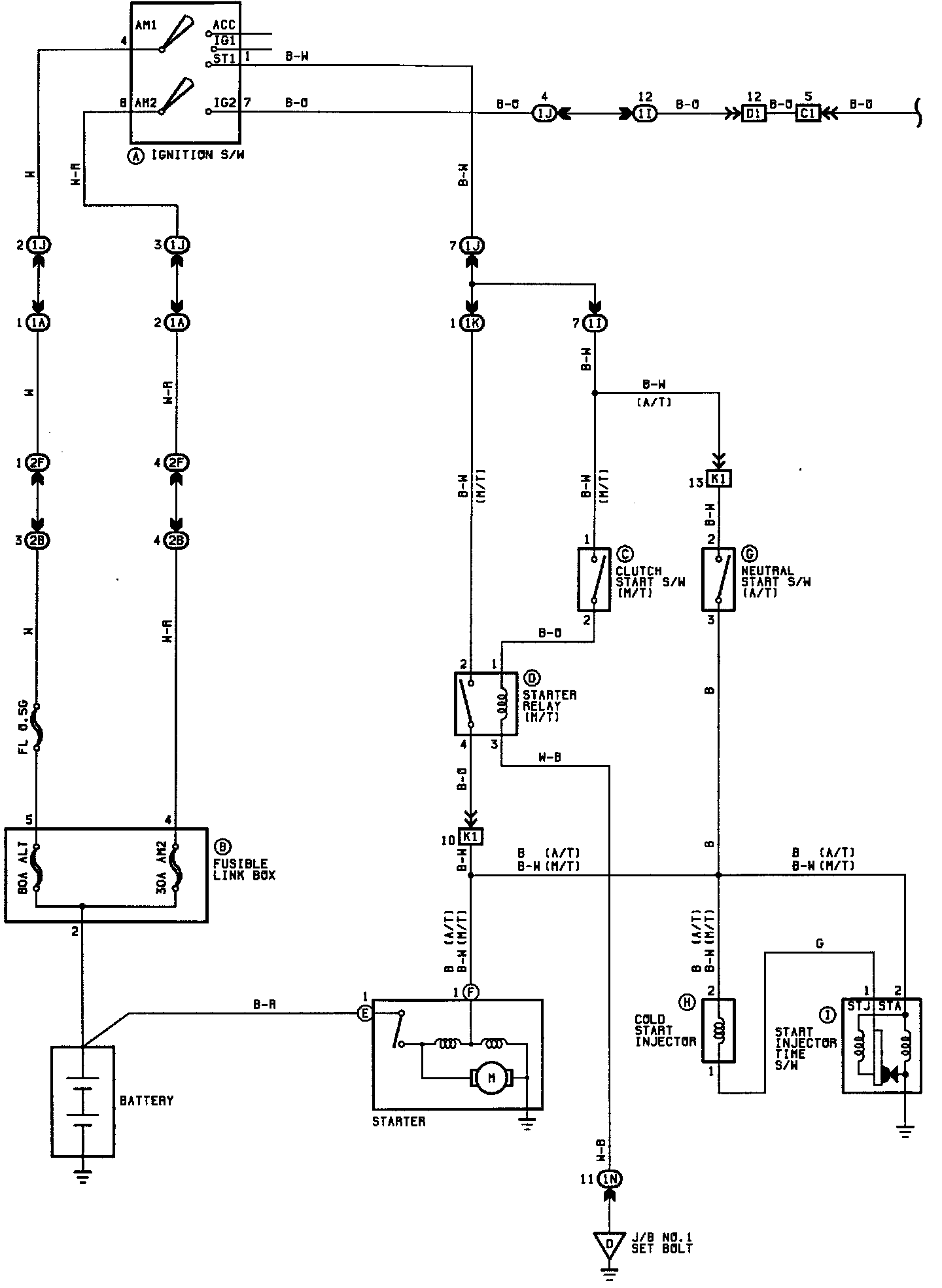

Starting And Ignition Systems Diagram:

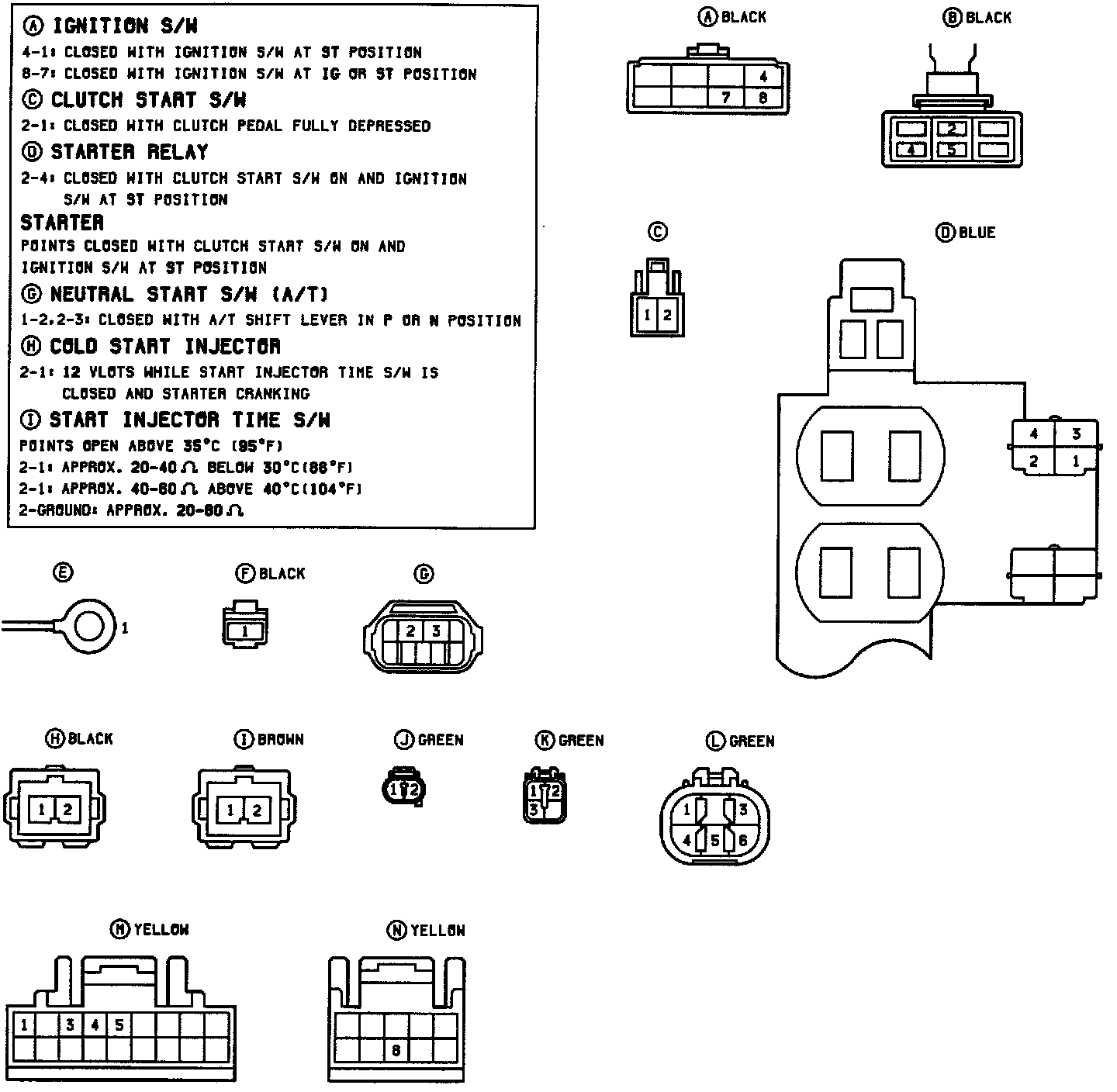

Starting And Ignition Systems Connectors And Troubleshooting:

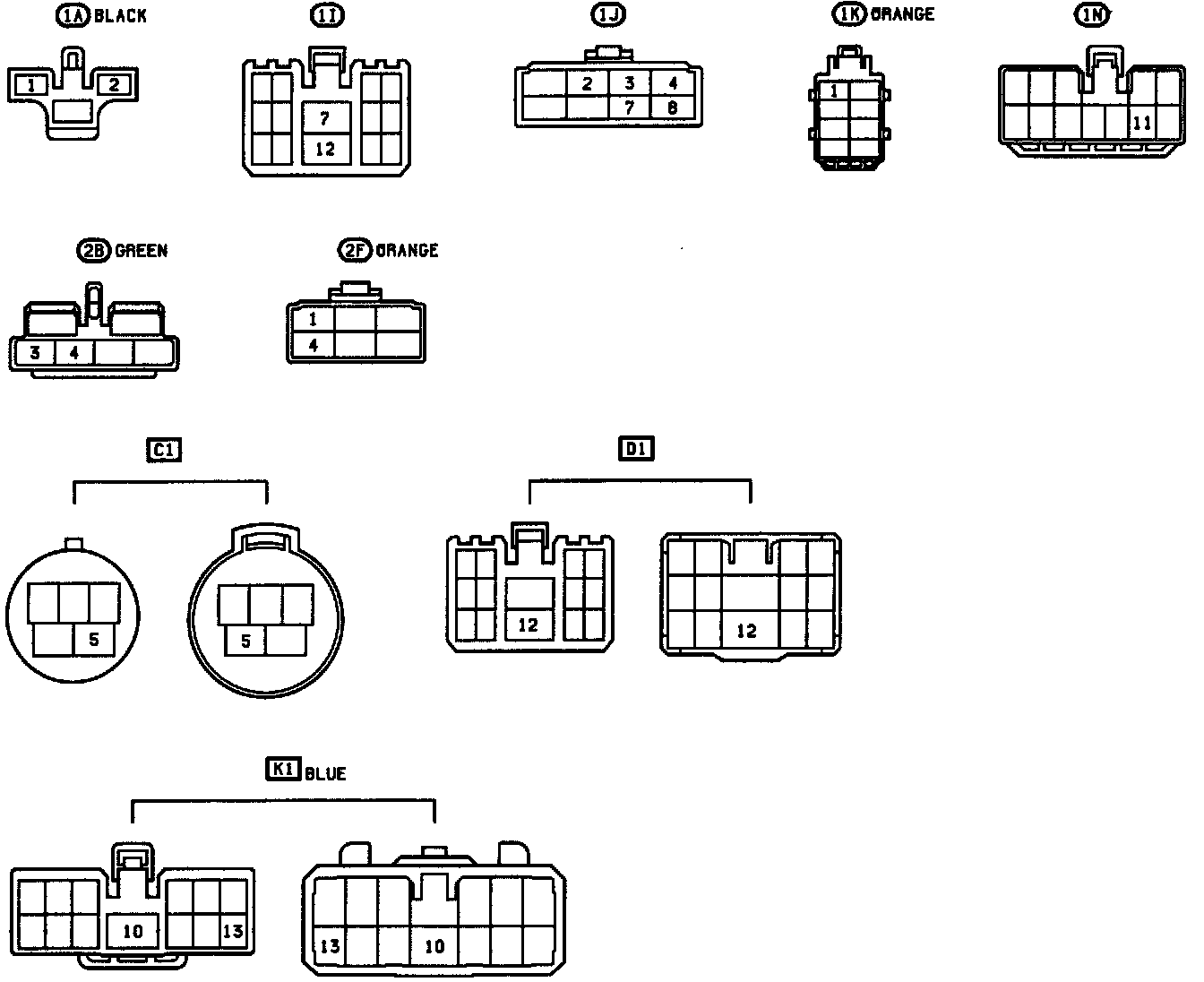

Starting And Ignition Systems Connectors:
