Throttle Body: Testing and Inspection

ON-VEHICLE INSPECTION

1. INSPECT THROTTLE BODY

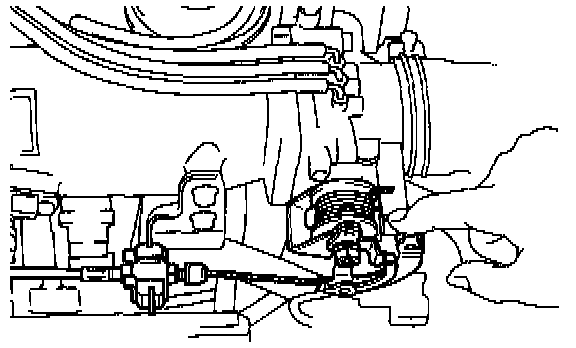

(a) Check that the throttle linkage moves smoothly.

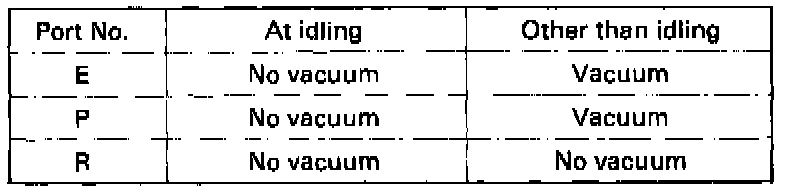

(b) Check the vacuum at each port.
^ Start the engine.

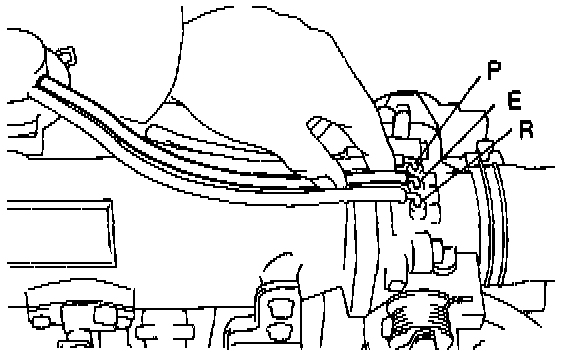

^ Check the vacuum with your finger.

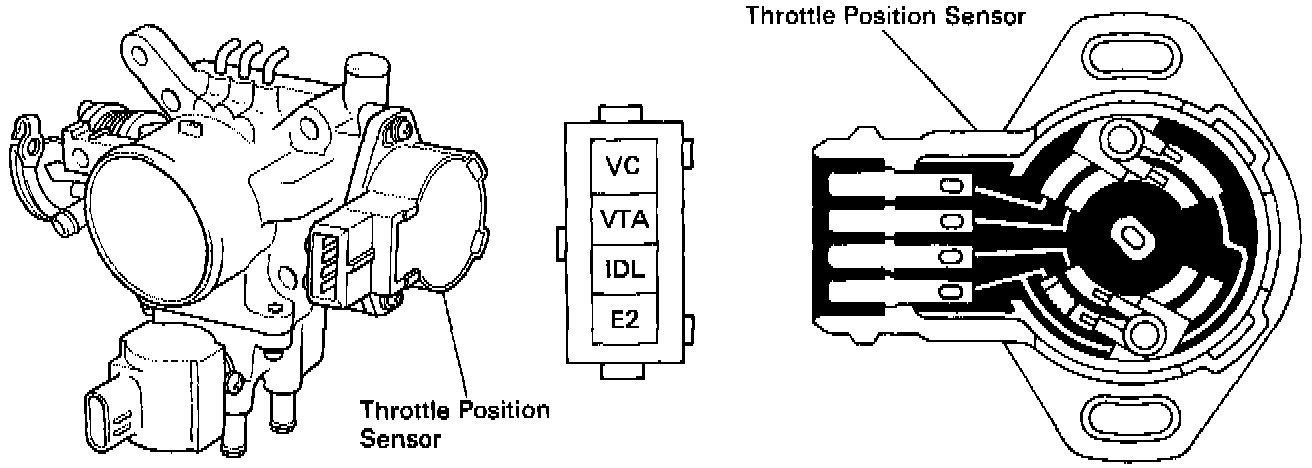

2. INSPECT THROTTLE POSITION SENSOR
(a) Disconnect the sensor connector.

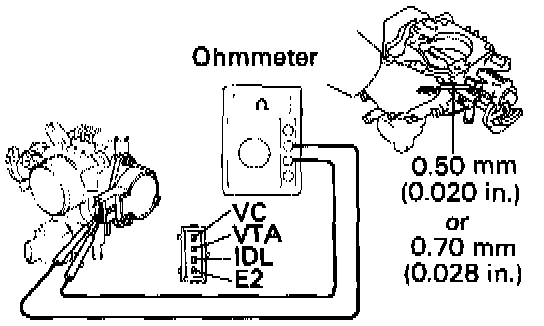

(b) Insert a thickness gauge between the throttle stop screw and stop lever.

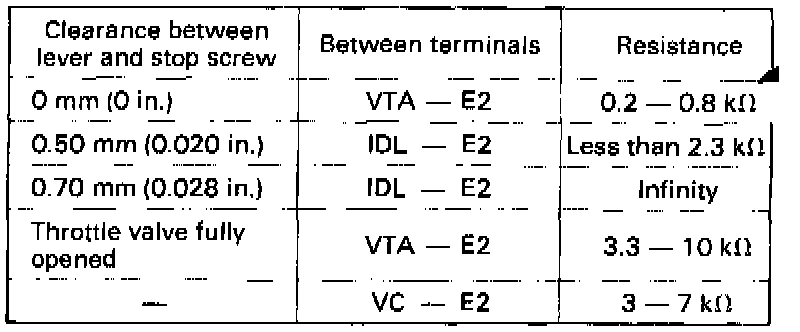

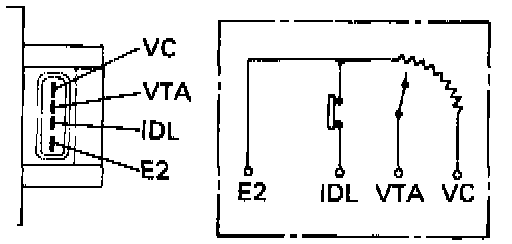

(c) Using an ohmmeter, measure the resistance between each terminal.
(d) Reconnect the sensor connector.
