Fuel Injector Resistor: Testing and Inspection

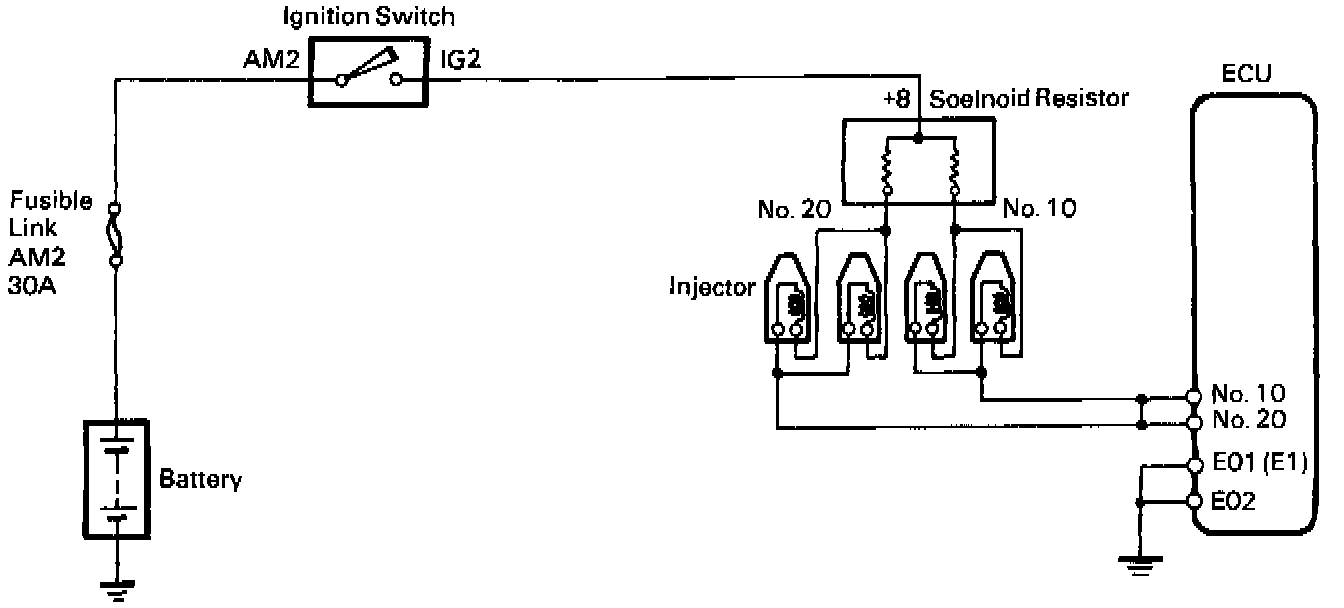

INSPECTION OF SOLENOID RESISTOR





INSPECT SOLENOID RESISTOR RESISTANCE

Using an ohmmeter, measure the resistance between terminal +B and other terminals (No.10, No.20).

Resistance: 2 - 3 ohms each

If the resistance is not as specified, replace the resistor.
