Cold Start Injector: Service and Repair
REMOVAL OF COLD START INJECTOR1. DISCONNECT CABLE FROM NEGATIVE TERMINAL OF BATTERY
2. DISCONNECT COLD START INJECTOR CONNECTOR

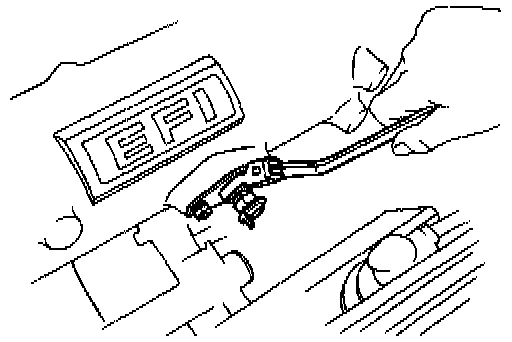

3. REMOVE COLD START INJECTOR PIPE
(a) Put a suitable container or shop towel under the injector pipe.
(b) Remove the two union bolts, four gaskets and injector pipe.
NOTE: Slowly loosen the union bolts.

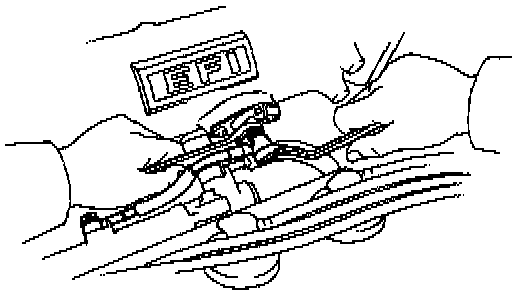

4. REMOVE COLD START INJECTOR
Remove the two bolts, injector and gasket.
INSTALLATION OF COLD START INJECTOR
1. INSTALL COLD START INJECTOR
Install a new gasket and the injector with the two bolts.
Torque: 95 kg-cm (82 in.-lb, 9.3 Nm)
2. INSTALL COLD START INJECTOR PIPE
Install the injector pipe with new four gaskets and the two union bolts.
Torque: 180 kg-cm (13 ft-lb, 18 Nm)
3. CONNECT COLD START INJECTOR CONNECTOR
4. CONNECT CABLE TO NEGATIVE TERMINAL OF BATTERY
5. CHECK FOR FUEL LEAKAGE
