Engine Backfires
>>
Muffler Explosion (Afterfire) - Rich Air Fuel Mixture - Misfire
Muffler Explosion (Afterfire) - Rich Air Fuel Mixture - Misfire

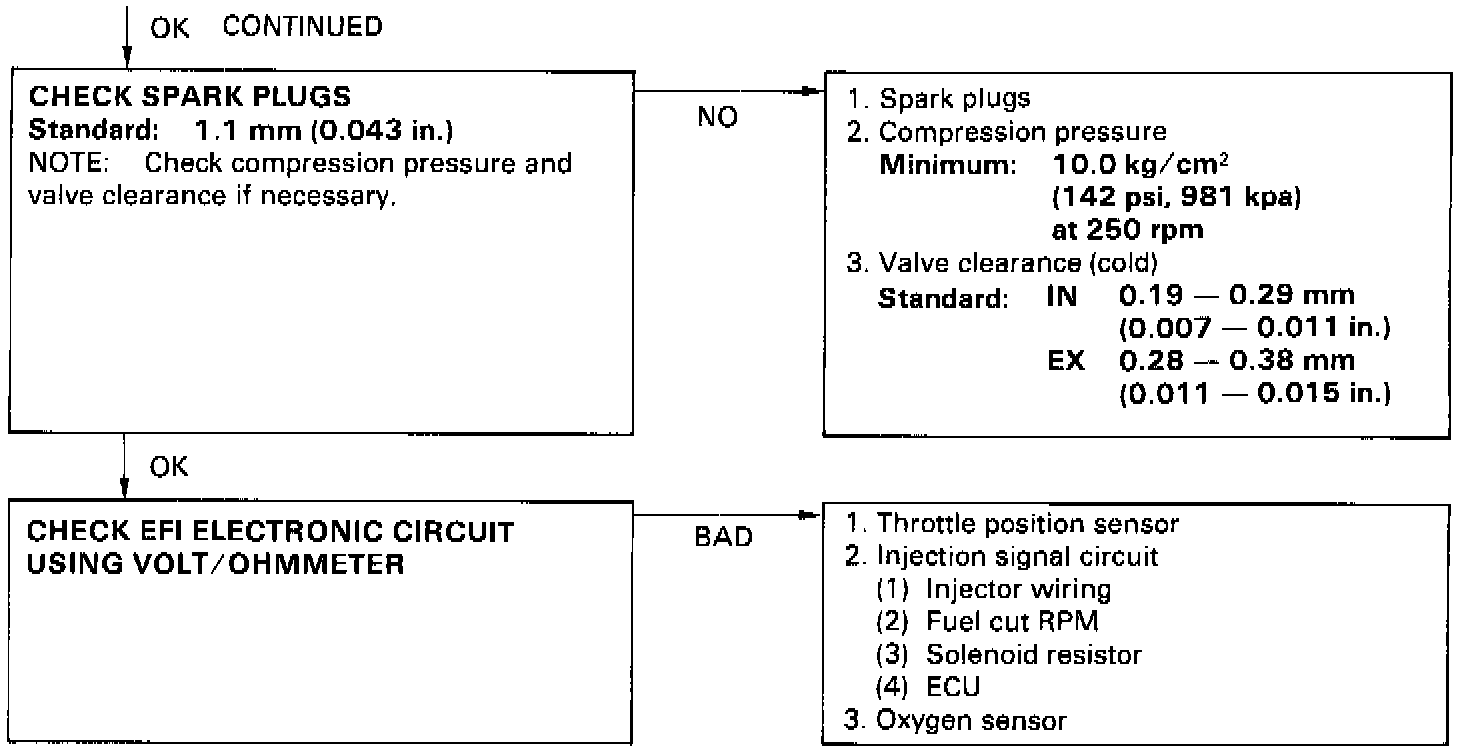

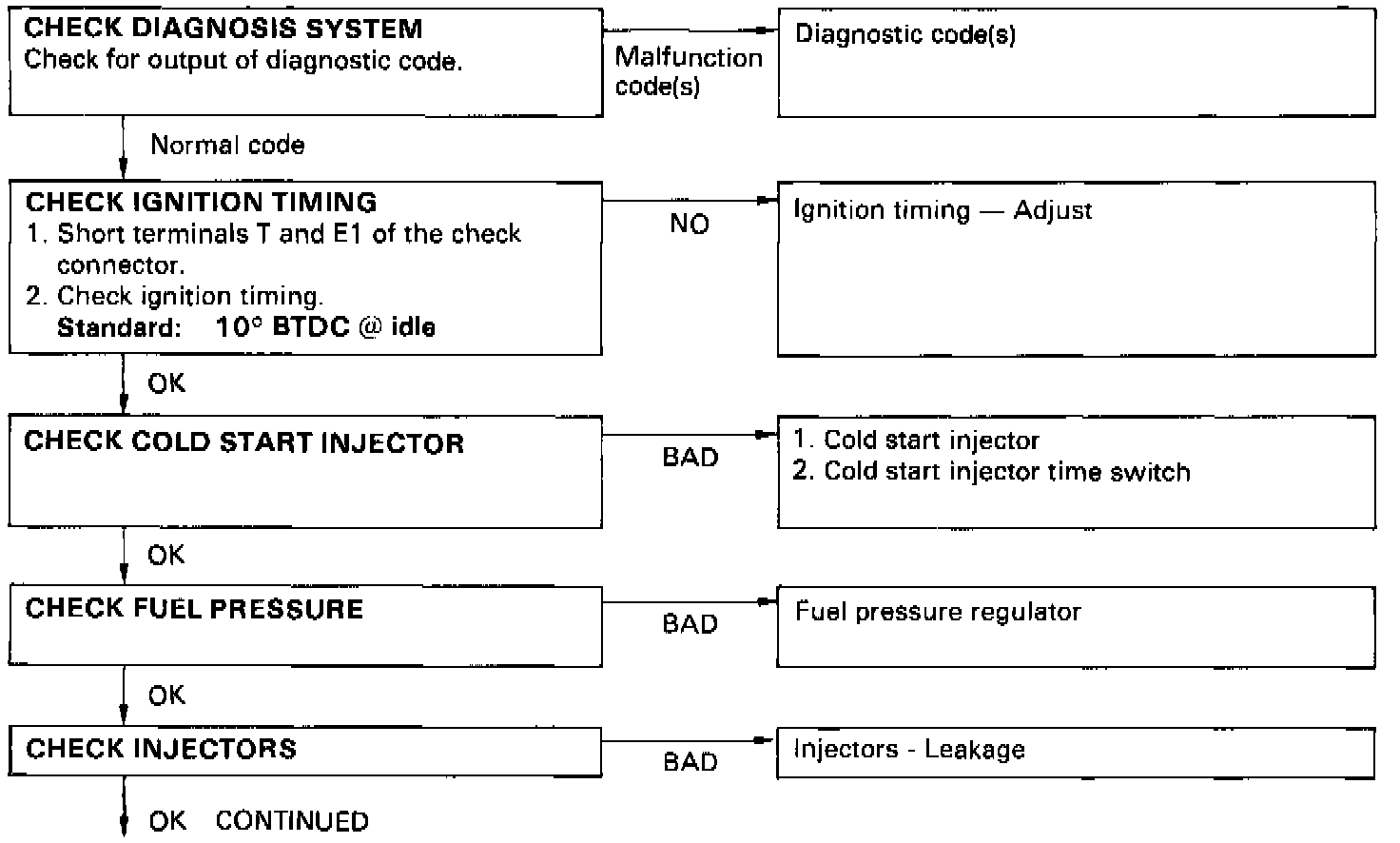

SYMPTOM - MUFFLER EXPLOSION (AFTER FIRE)
- Rich Fuel Mixture-Misfire
