System Diagram

System Diagram:

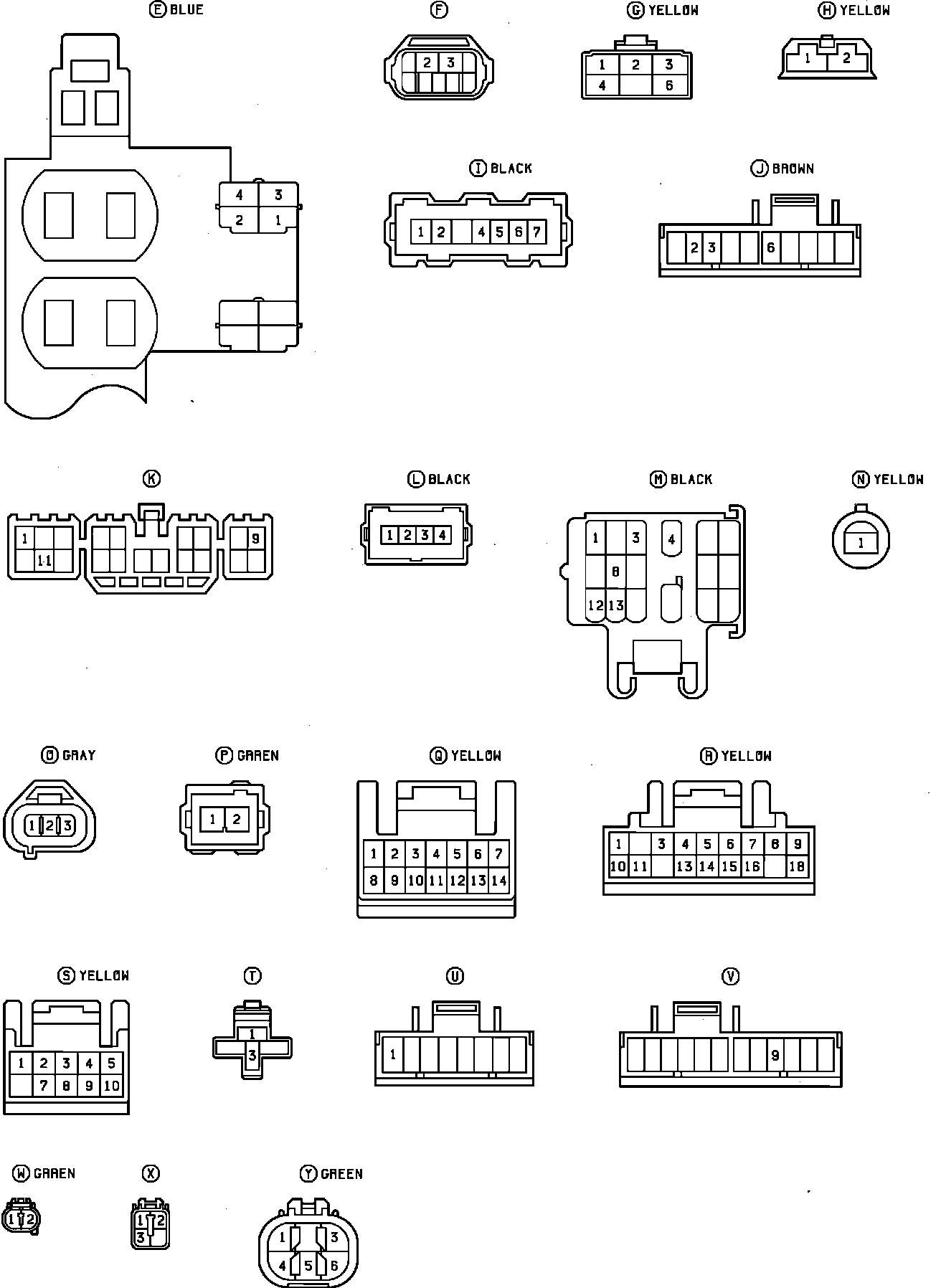

Fig. 158 EFI Wiring Diagram.:

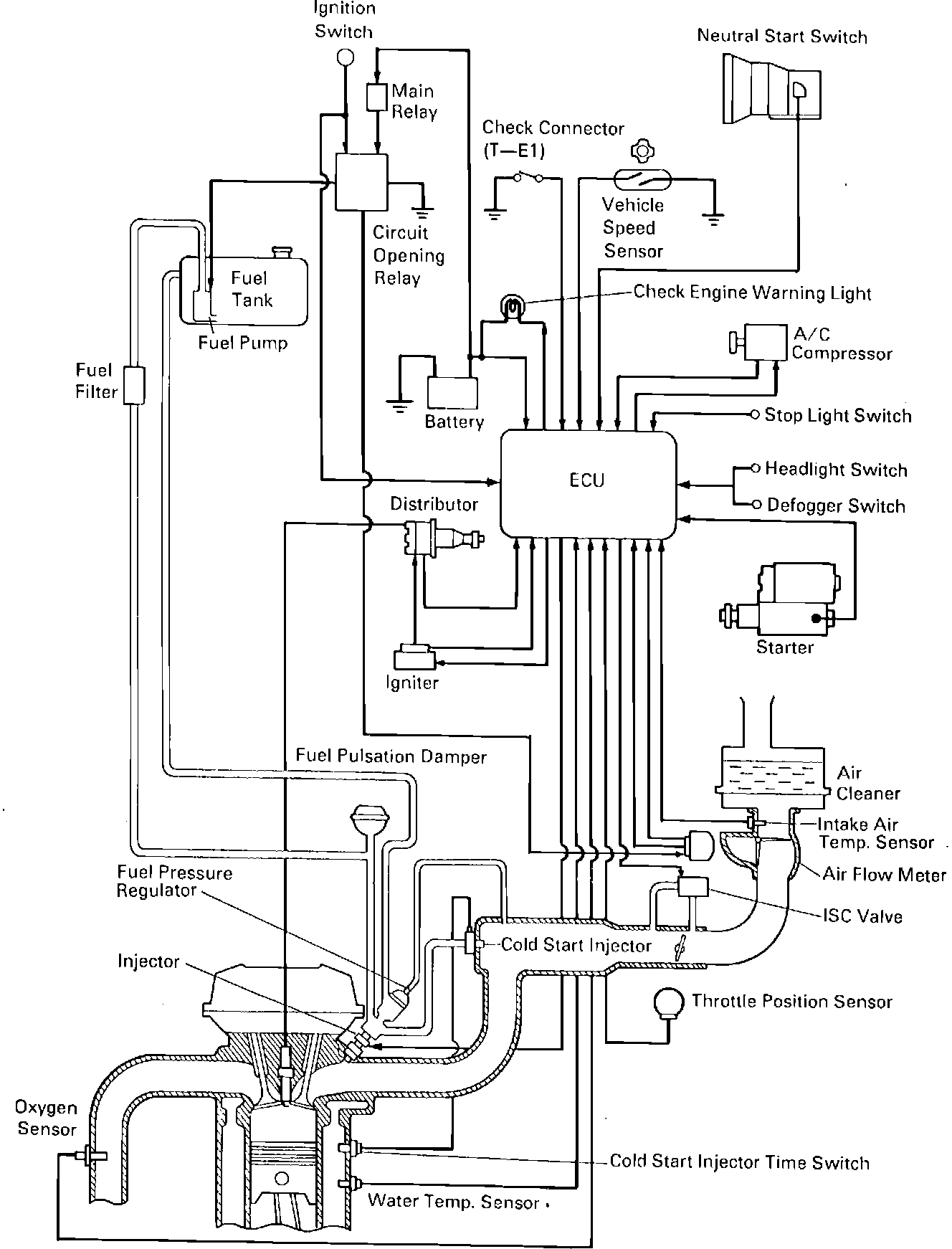

Fig. 159 EFI Wiring Diagram.:

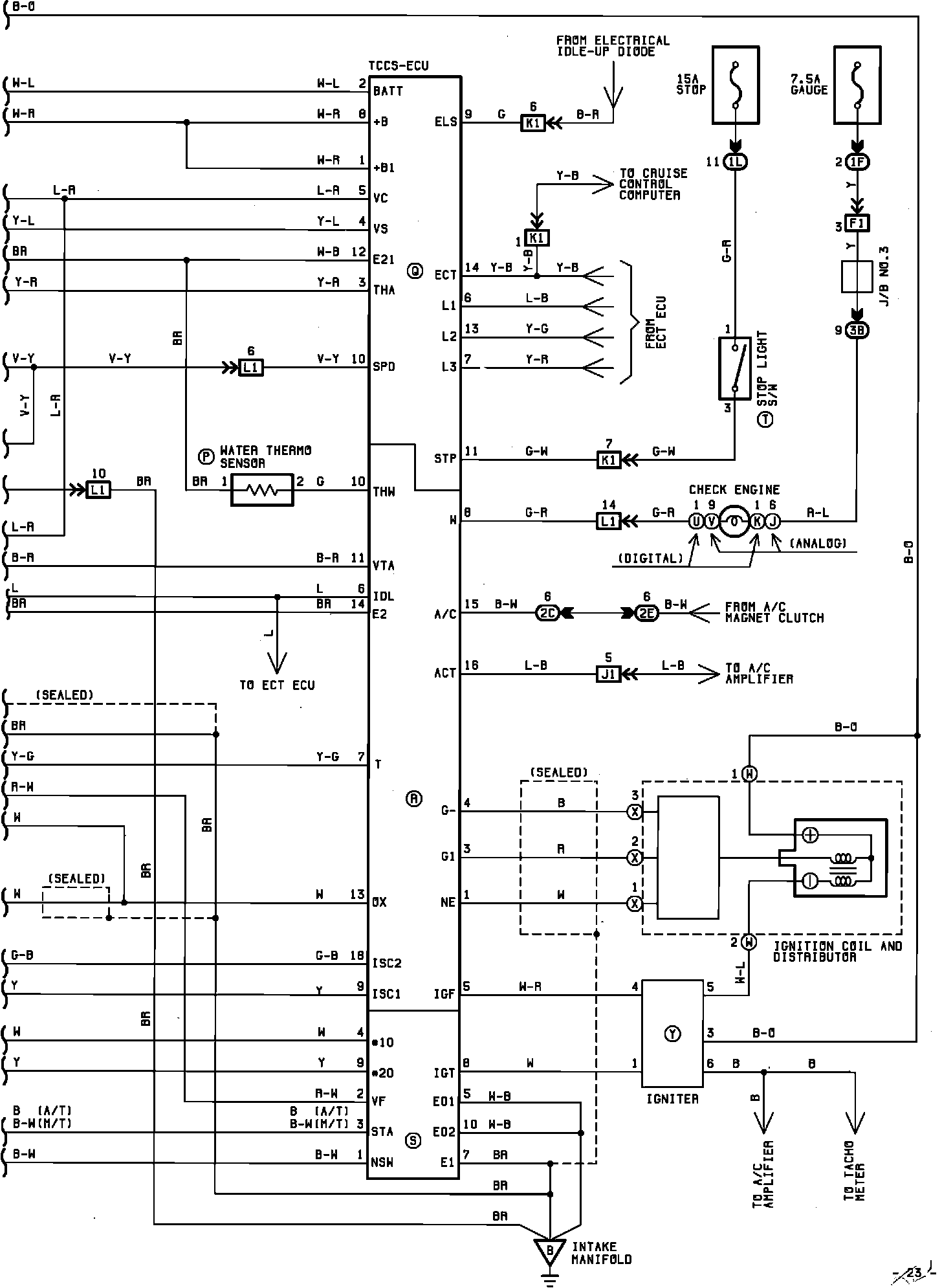

Fig. 160 EFI Wiring Diagram.:

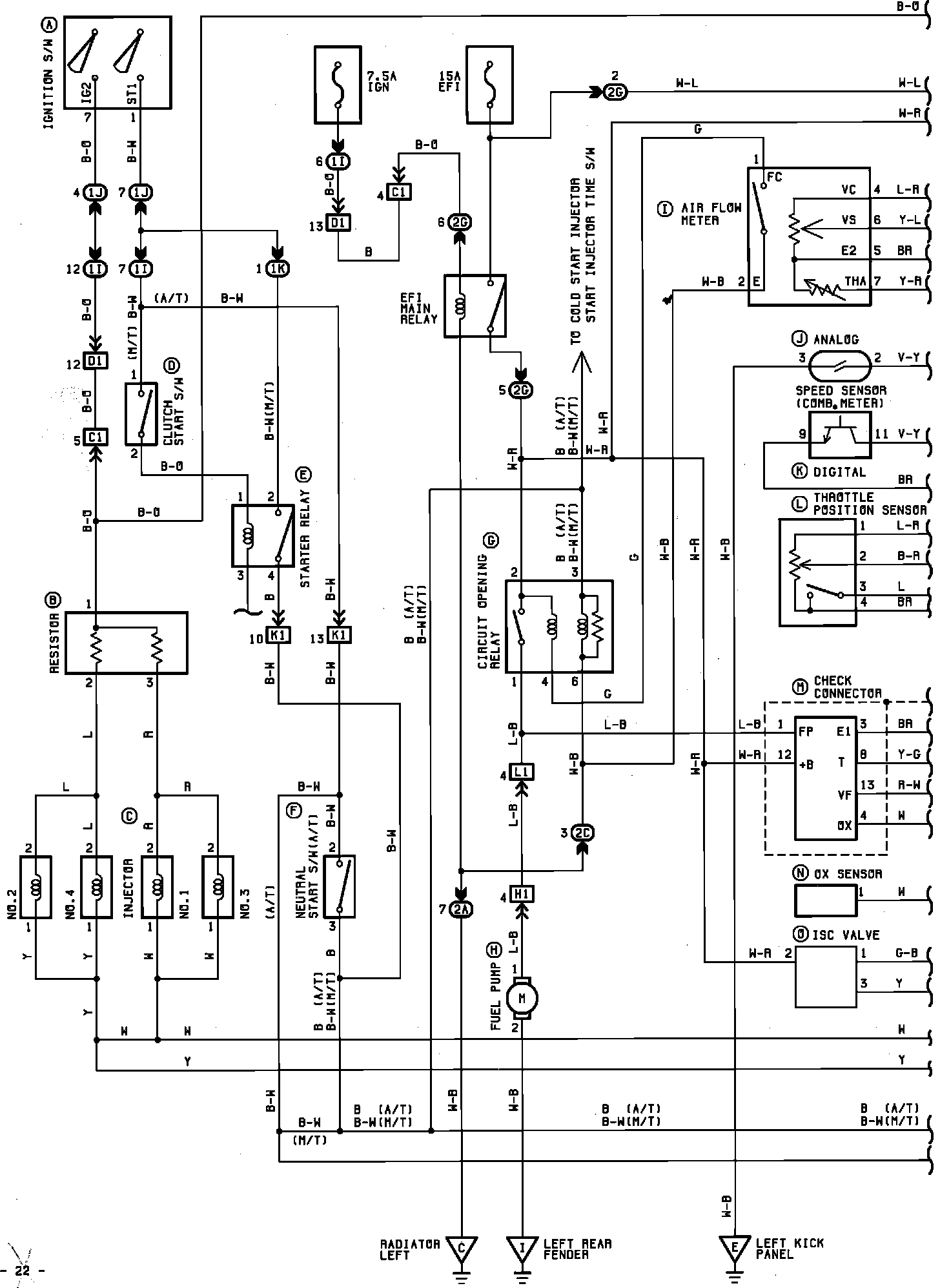

Fig. 161 EFI Wiring Diagram.:

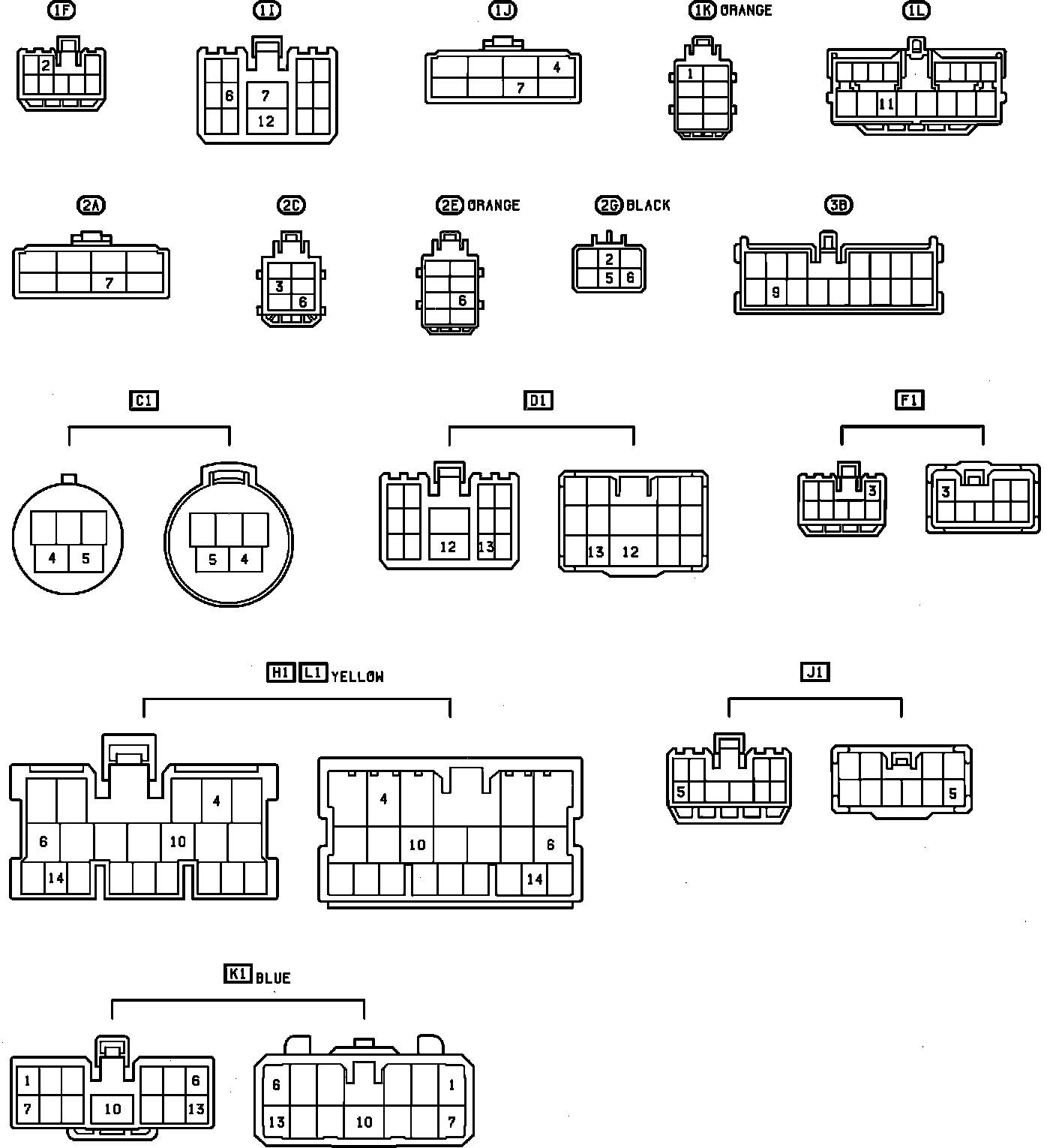

Fig. 162 EFI Wiring Diagram.:
