Transmission Control Systems

With A140E Transaxle


ELECTRONIC CONTROL TROUBLESHOOTING

NOTE:
- If diagnostic code Nos. 42, 61, 62 or 63 occur, the overdrive indicator light will begin to blink immediately to warn the driver. However, an impact or shock may cause the blinking to stop; however, the code will still be retained in the ECT computer memory until canceled Out.

- There is no warning for diagnostic code No.64.

- In the event of a simultaneous malfunction of both No.1 and No.2 speed sensors, no diagnostic code will appear and the fail-safe system will not function. However, when driving in the D range, the transmission will not up-shift from first gear, regardless of the vehicle speed.

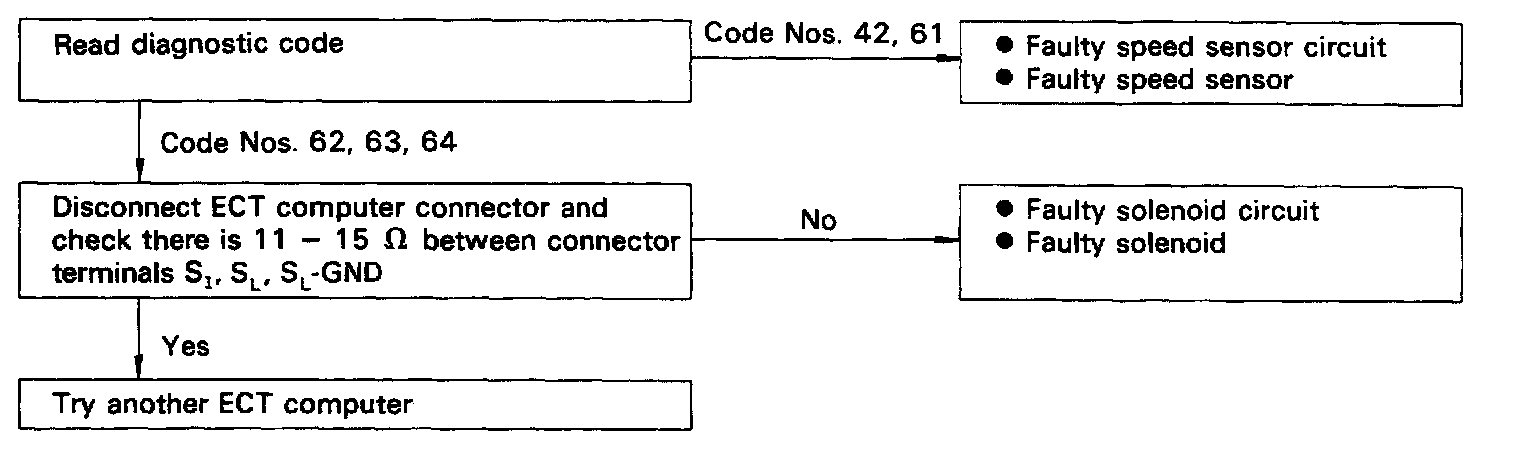

Trouble No.1 Blinking overdrive indicator light (while driving)





Trouble No.2 No shifting

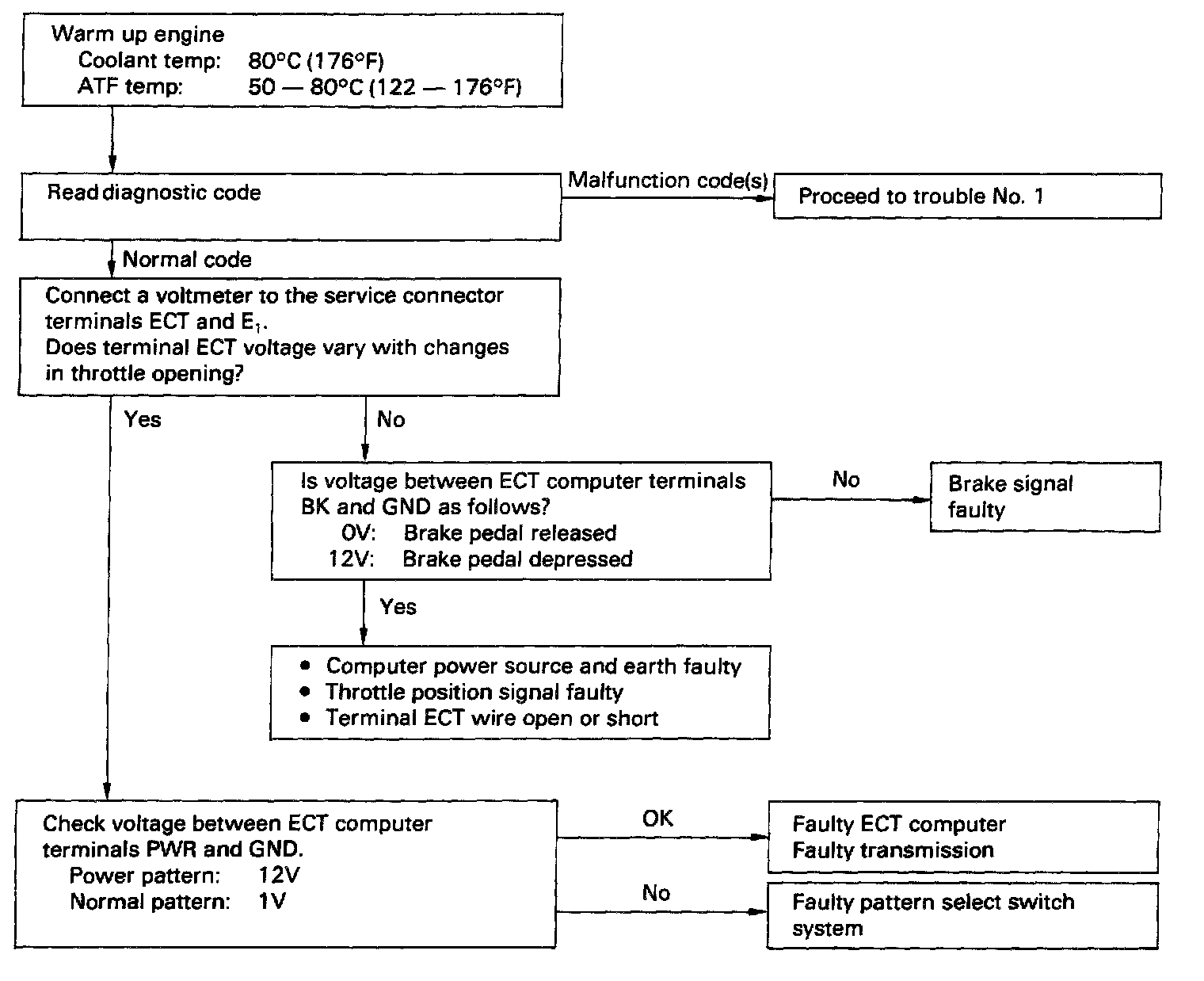

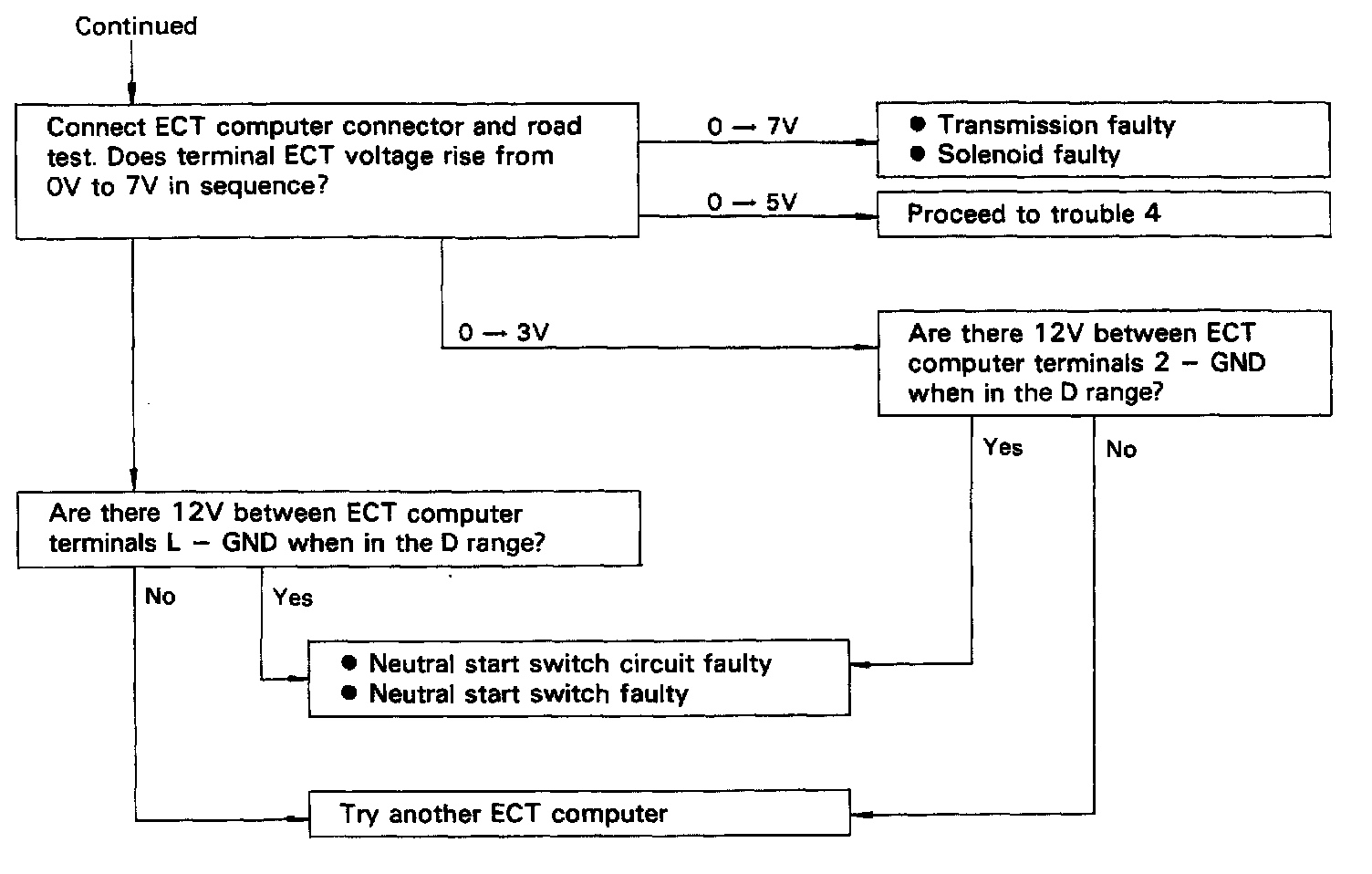

Trouble No.3 Shift point too high or too low

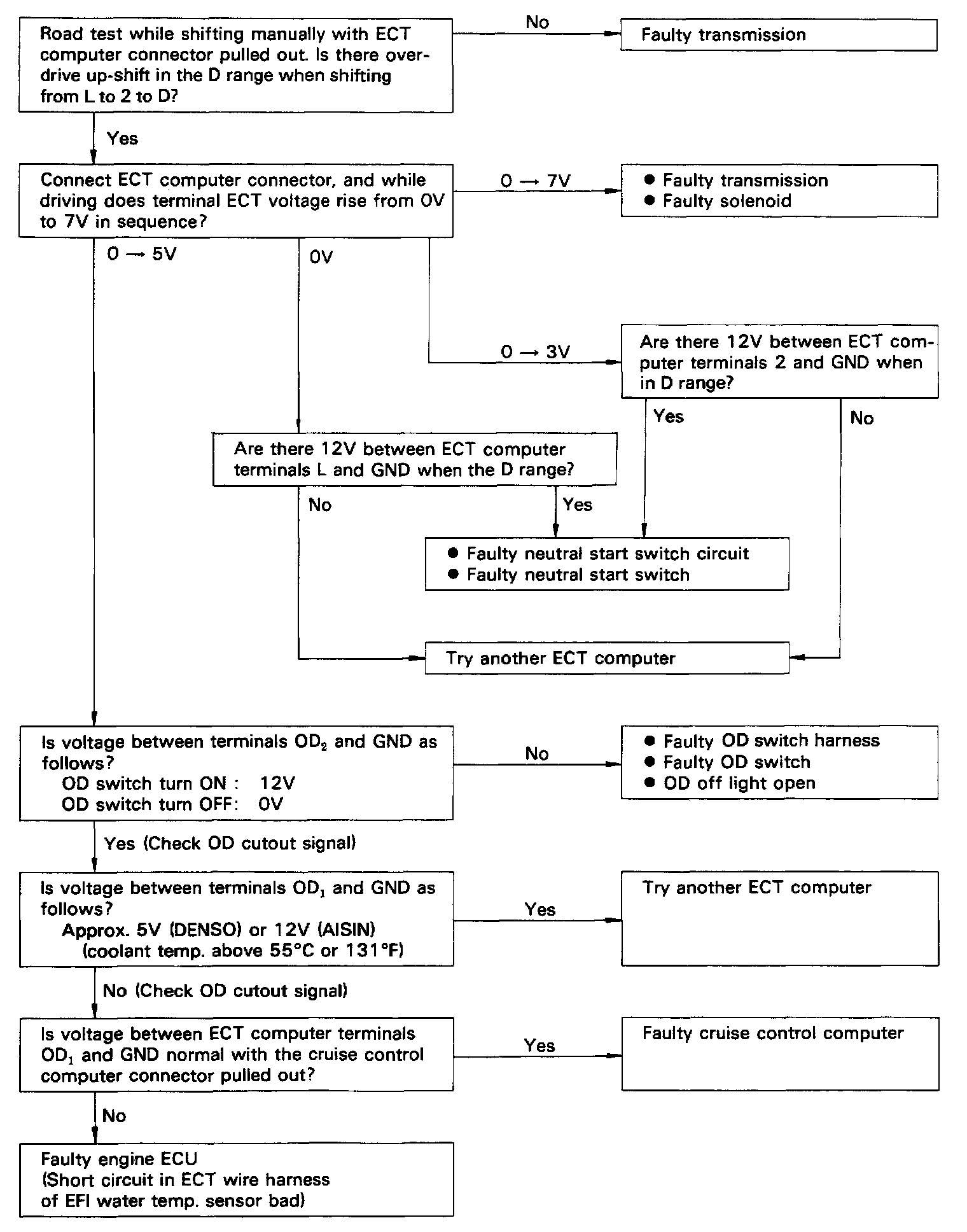

Trouble No.4 No up-shift to overdrive (After warm-up)





Trouble No.5 No lock-up (After warm-up)
