Engine - Mount Modified to Reduce Vibration

REFERENCE ENGINE
NUMBER 026
DATE 9-27-84
MODEL AE 82/83

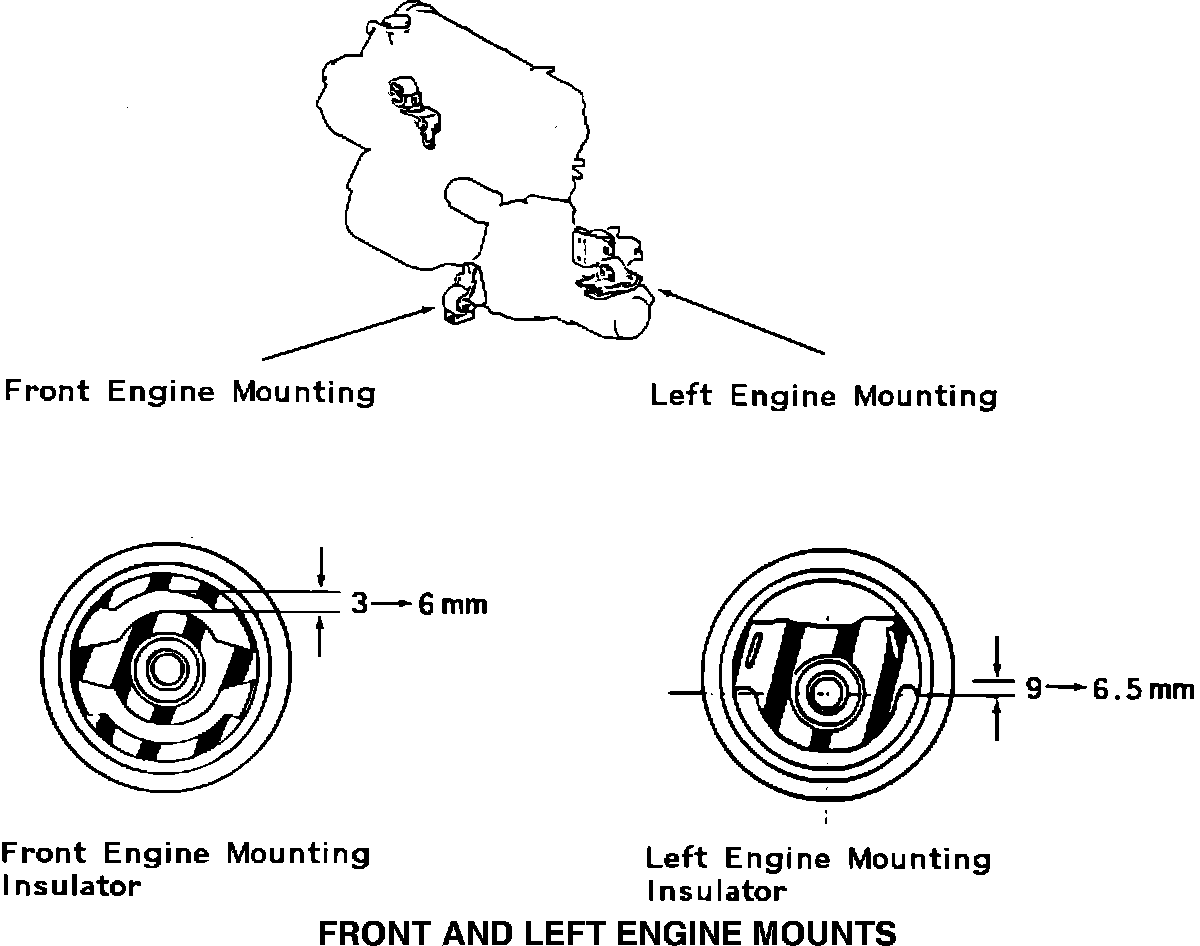

Front And Left Engine Mounts:

CONDITION:

Body vibration felt when accelerating from a standing start.

CAUSE:

Engine vibration transmitted to the car body by the front and/or left engine mounts.

CORRECTION:

The front and left engine mounts have been changed as shown.
PRODUCTION EFFECTIVE:


From Frame Number Production Date

JT2AE82**E3063188 Left Hand Engine February 1984
JT2AE83E*E3063188 Mounting Insulator February 1984

JT2AE82**E3104380 Front Engine June 1984
JT2AE83E*E3104380 Mounting Insulator June 1984

PART NUMBER INFORMATION:

Previous Part Number New Part Number Part Name

12372-15060 12372-15061 Insulator, engine mounting, LH
12361-15100 12361-15101 Insulator, engine mounting, front
