Home >> Toyota >> 1984 >> Corolla/FX L4-1587cc 4A SOHC >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Exhaust Gas Recirculation >> EGR Valve >> Locations >> W/4A-C Engine, Except Calf.

W/4A-C Engine, Except Calf.

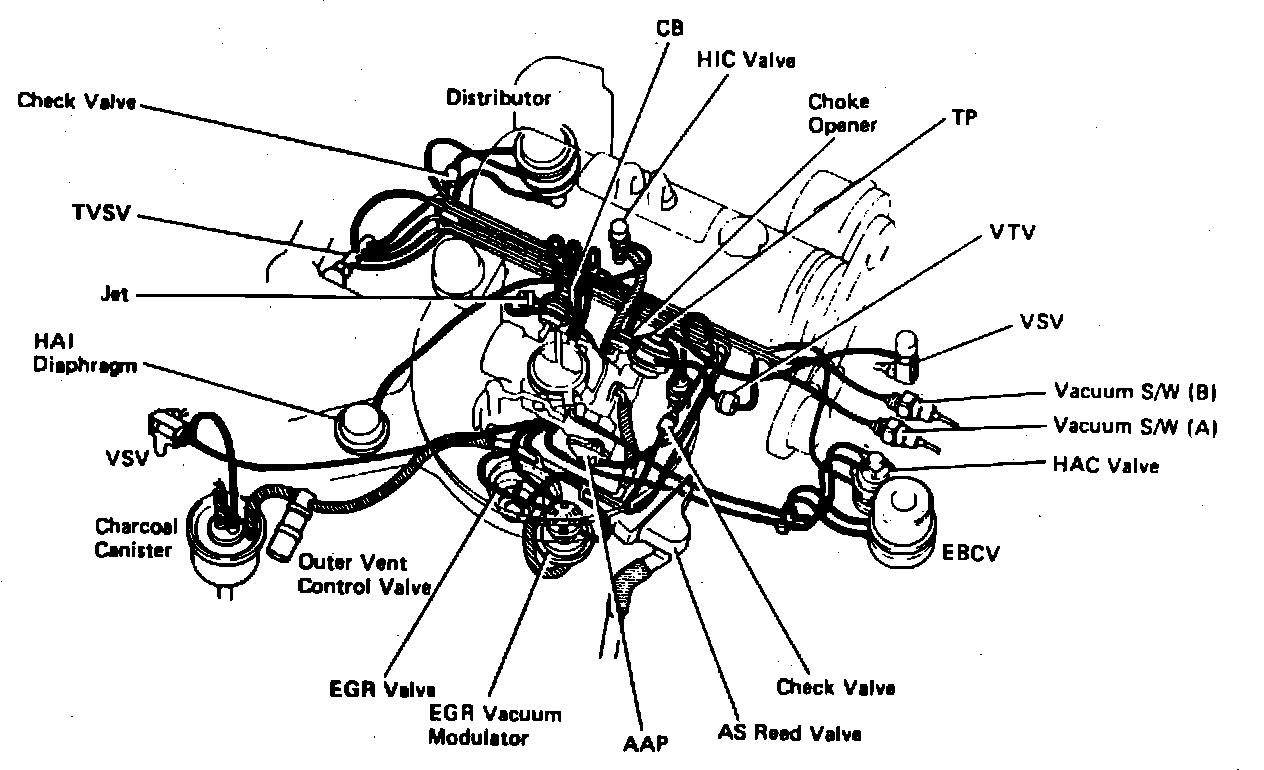

Emission Control System Components.:




Rear Side Of Engine

Applicable to: 1984 Models w/4A-C Engine & Front Wheel Drive Except California
