Repair Instructions

DISASSEMBLY

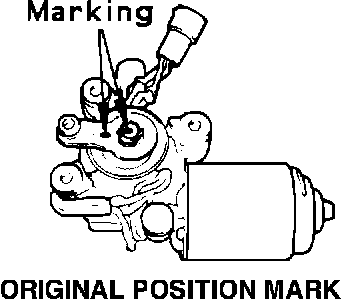

Mark The Original Position:

1. Before removing the crank arm, mark the original position as shown in the illustration.

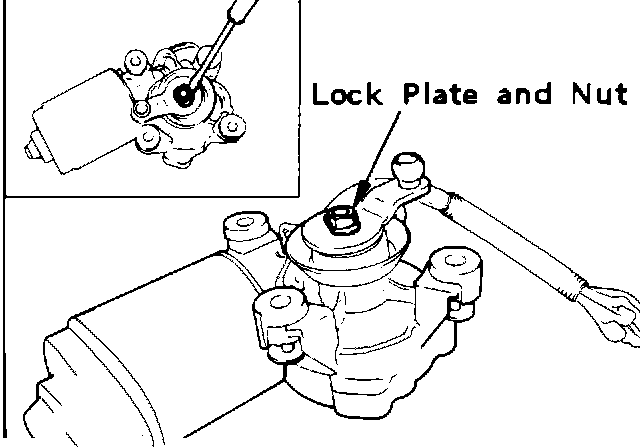

Lock Plate and Nut:

2. Release the nut by bending away the lock plate with a screwdriver.

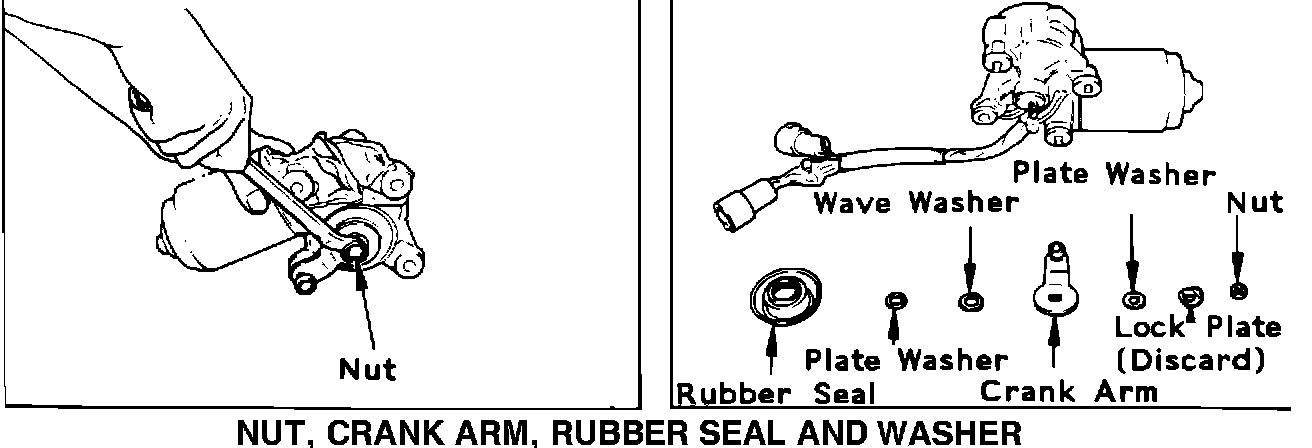

Nut, Crank Arm, Rubber Seal and Washers:

3. Remove the nut and disassemble the crank arm, rubber seal and washers.

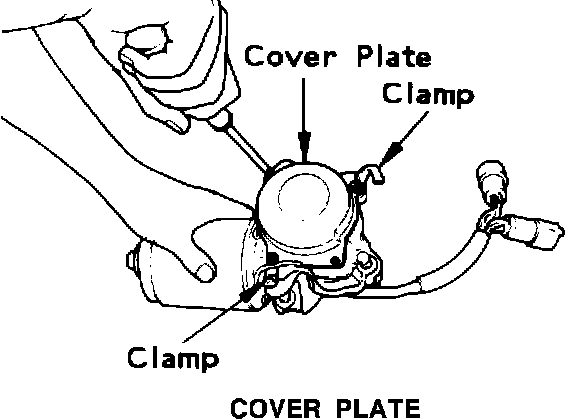

Cover Plate:

4. Remove the cover plate.

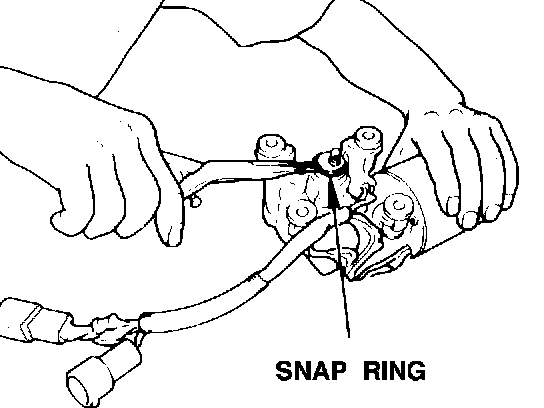

Snap Ring:

5. Remove the snap ring using snap ring pliers.

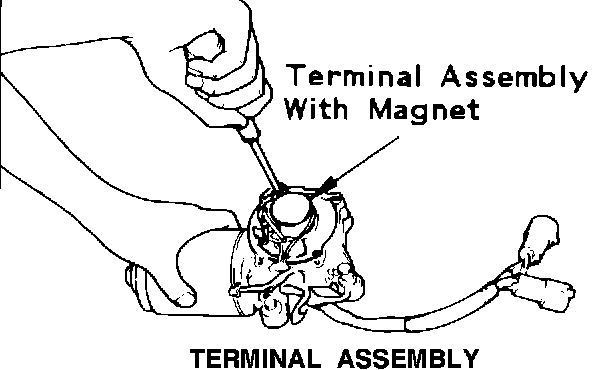

Terminal Assembly:

6. Remove the terminal assembly with magnet.

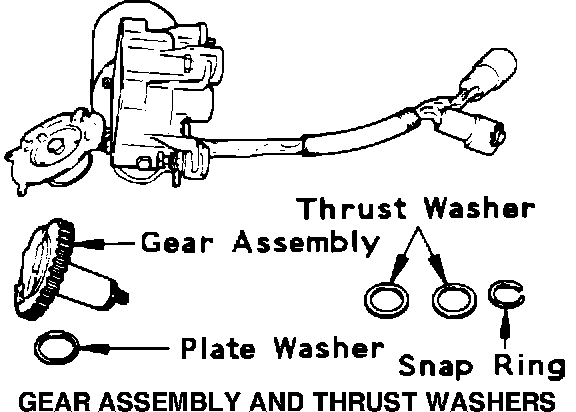

Gear Assembly and Thrust Washers:

7. Carefully remove the gear assembly and thrust washers from the housing.

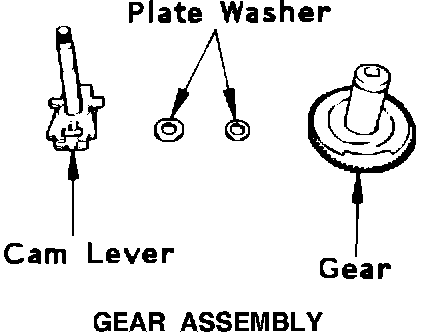

Gear Assembly:

8. Disassemble the gear assembly.
