Heated Glass Element: Diagrams

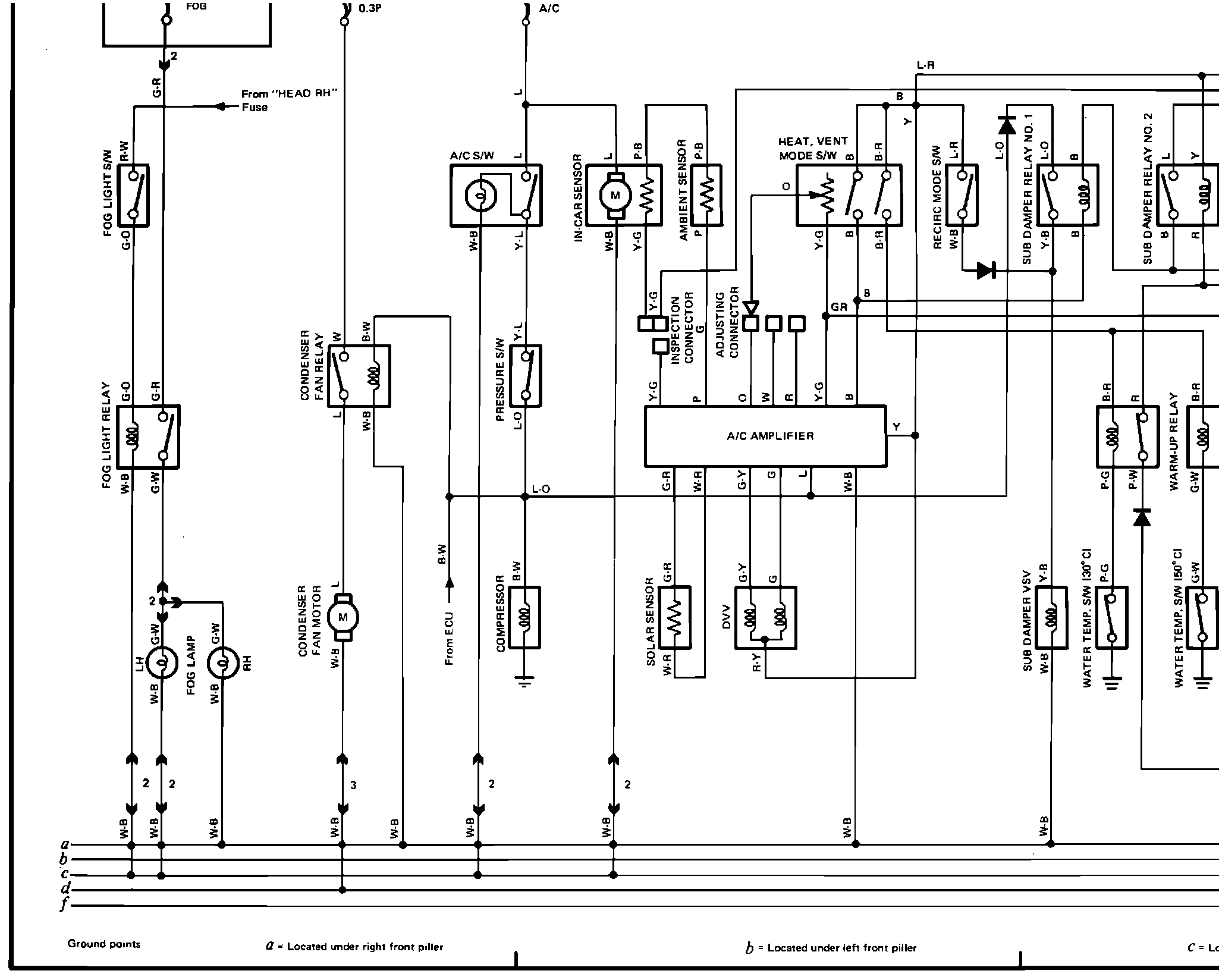

=�jh�j��j�k2 k�kTkFig. 47b Fog Light, Heating & A/C, Combination Meter, Rear Defogger, and Back-Up Lights Wiring Diagram:
