Fuel Tank: Service and Repair

FUEL TANK AND LINE





NOTE:
- Toyota does not provide step-by-step instructions for fuel tank removal for this vehicle. Refer to the image for removal.
- When installing the fuel tank, refer to image for the installation position of the protector and hose and the tightening torque. Refer to the precautions below.
- After installation, check for leaks.

PRECAUTIONS
^ Always use new gaskets when replacing the fuel tank or component parts.
^ When re-installing, be sure to include the rubber protectors on the upper surfaces of the fuel tank and tank band.

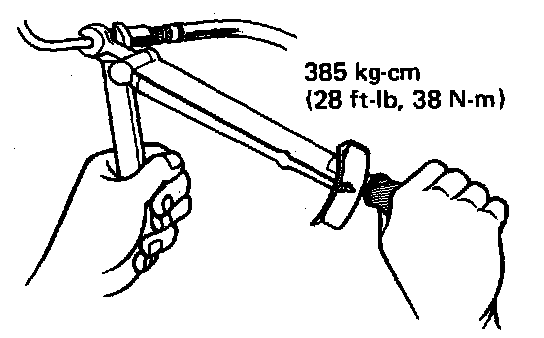

^ Tighten the fuel tank mounting bolts, etc. to the specified torque.

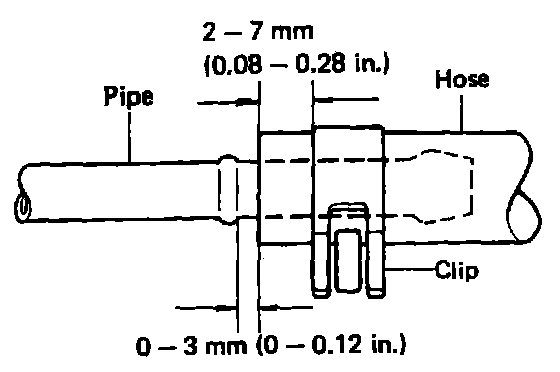

^ Push in the pipe and insert-type hose to the specified position, and install the clip to the specified location.
^ If reusing the hose, reinstall the clip at its original location.









^ Hose and tube connections are as shown in the illustrations.
