System Diagram

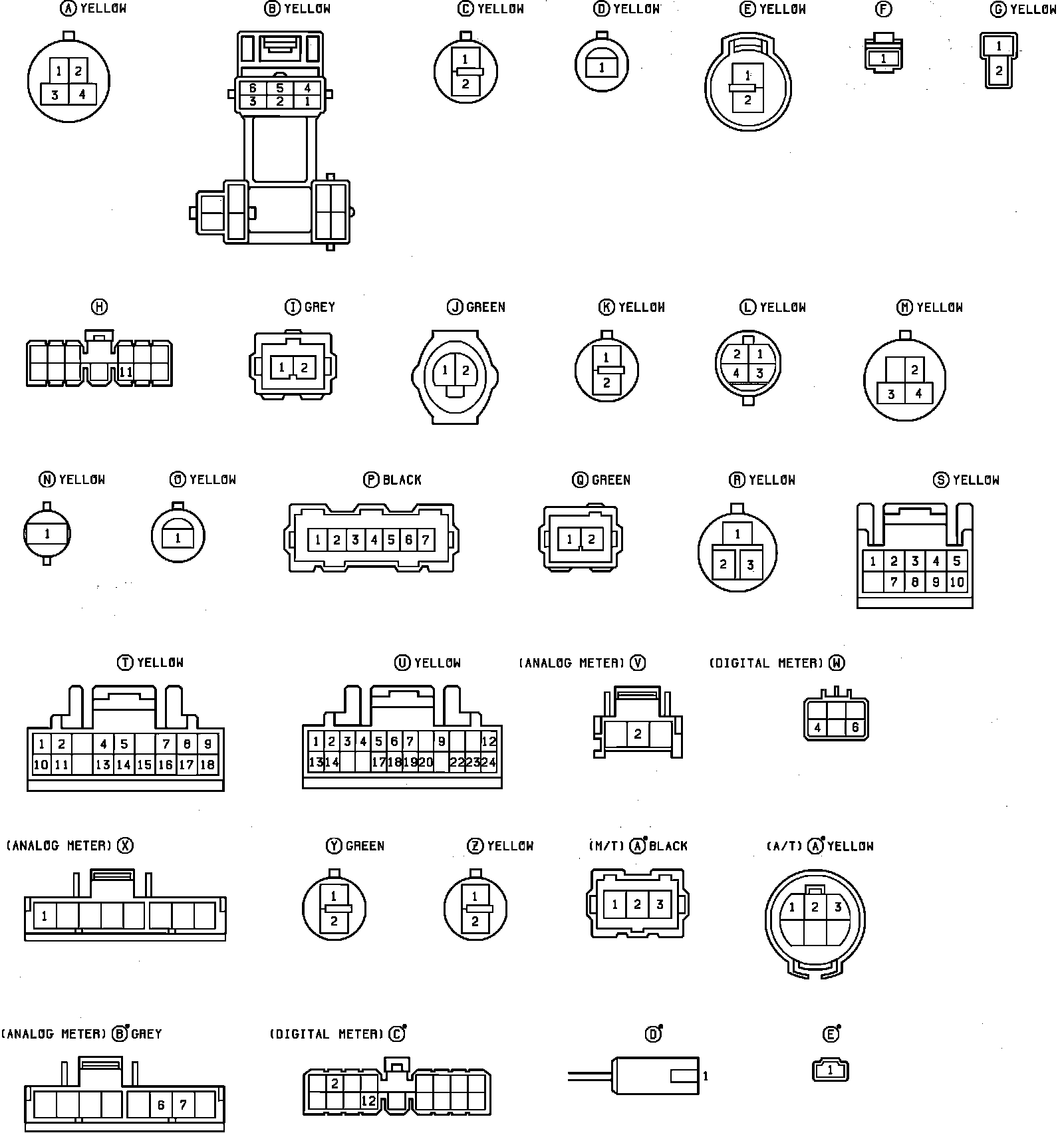

Fig. 83 EFI Wiring Diagram.:

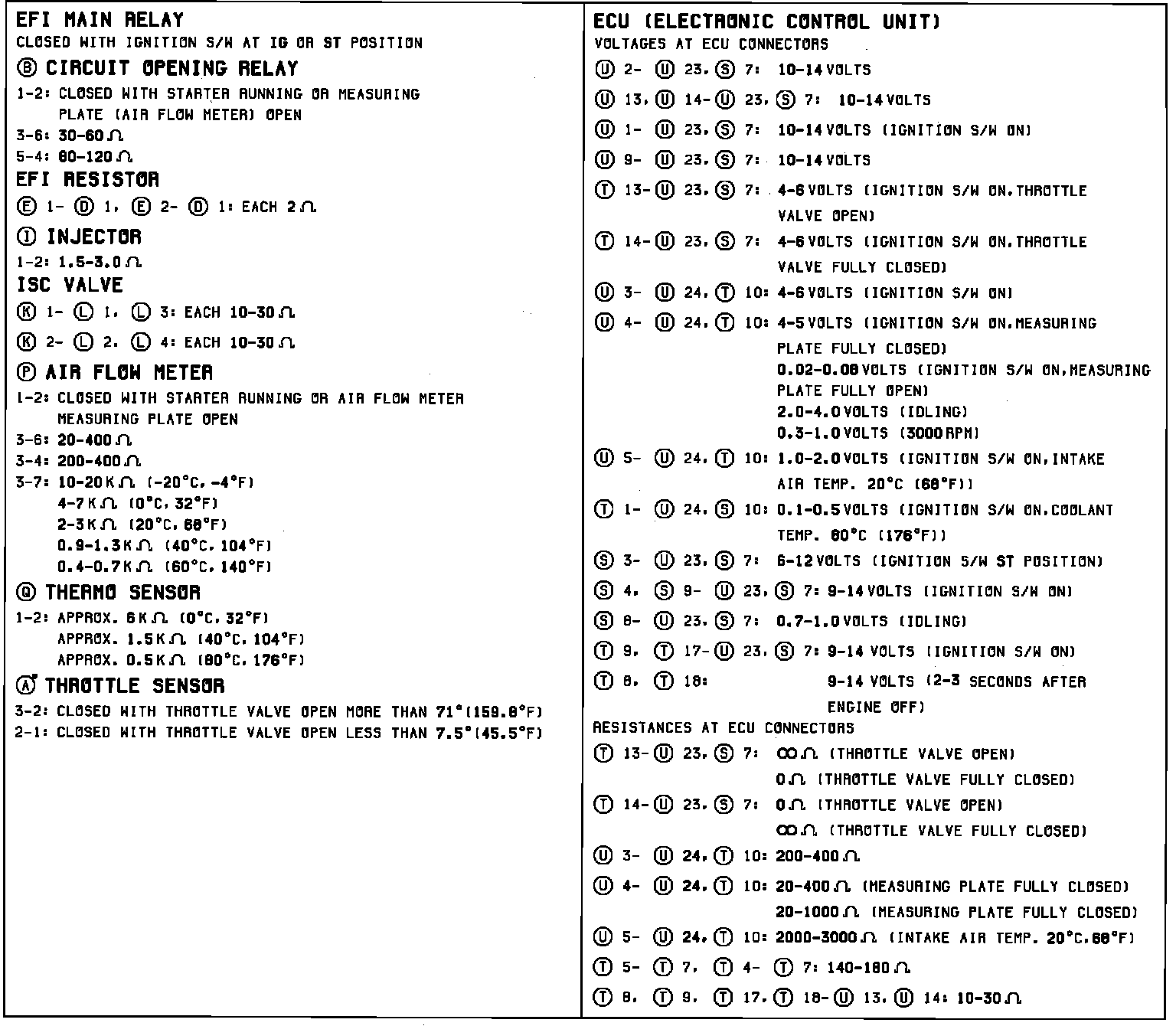

Fig. 84 EFI Wiring Diagram.:



Fig. 85 EFI Wiring Diagram.:



Fig. 86 EFI Wiring Diagram.:



Fig. 87a EFI Wiring Diagram.:
