Disassembly and Reassembly

DISASSEMBLY

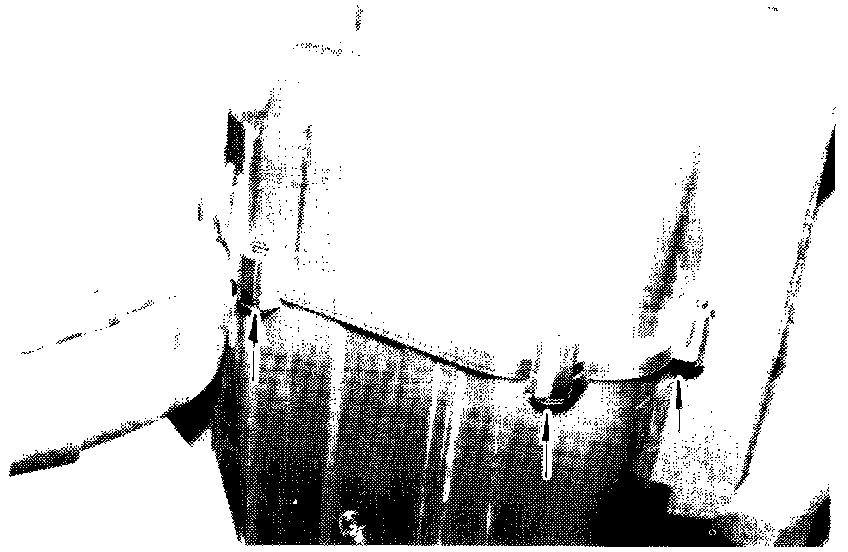

1. Remove lower case using a screwdriver, remove the four clamps, and four screws.
2. Remove the two screws and remove upper case from evaporator.

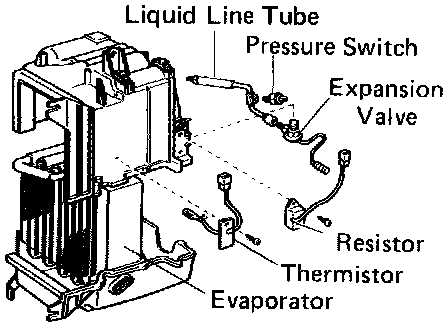

3. Remove components from evaporator.

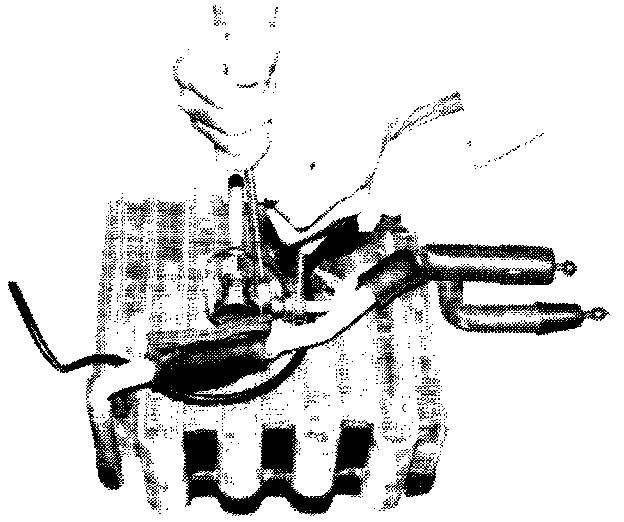

a. Remove the heat insulator and the clamp from the outlet tube,
b. Disconnect the liquid line tube from inlet fitting of the expansion valve.
c. Disconnect the expansion valve from the inlet fitting of the evaporator.
d. Remove the pressure switch, if required.

ASSEMBLY





1. Install components on evaporator.

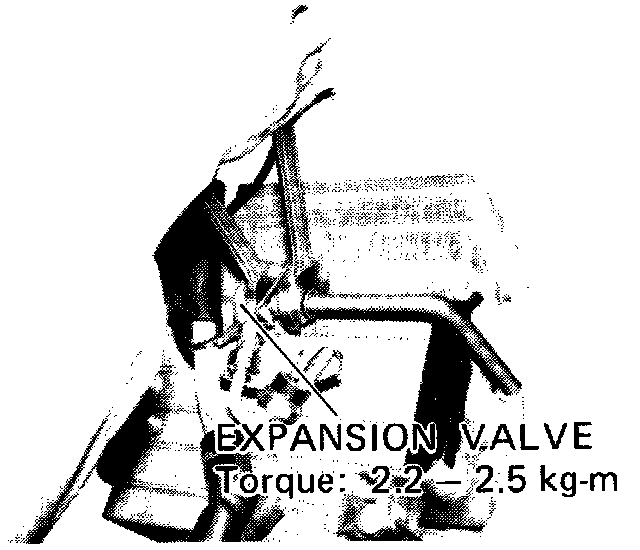

a. Connect the expansion valve to the inlet fitting of the evaporator. Torque the nut.
Torque: 22 - 24 Nm (16 - 18 ft-lb)

NOTE: Be sure that the O-ring is positioned on the tube fitting.





b. Connect the liquid line tube to the inlet fitting of the expansion valve. Torque the nut.
Torque: 12 - 14 Nm (9 - 10 ft-lb)
c. Install the pressure switch, if removed.
Torque: 12 - 14 Nm (9 - 10 ft-lb)
d. Install the clamp and heat insulator to the outlet tube.
2. Install upper and lower cases on the evaporator.
