Blower Motor Resistor: Testing and Inspection

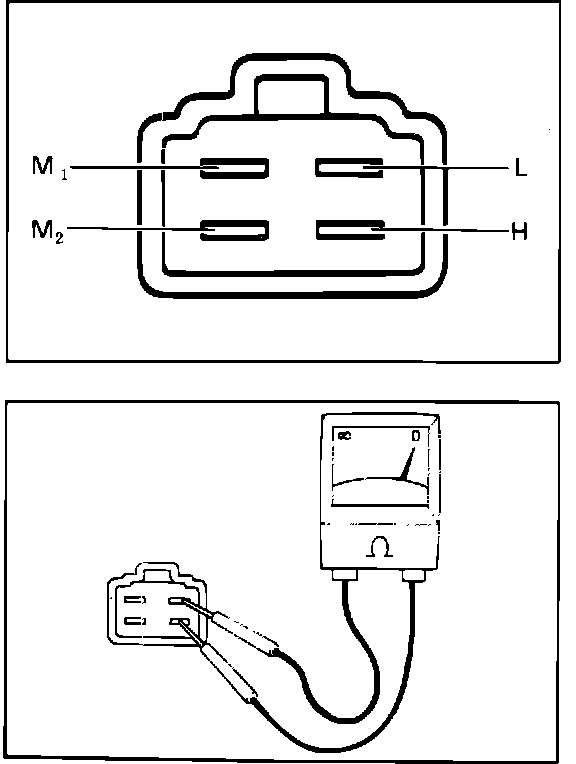

Heater Blower Resistor Testing:

1. Check for ground connection between wiring connector terminals H and L and body ground.
2. Check that continuity exists between wiring connector terminals H and L. If no continuity, replace resistor.
