Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Toyota
>>
1984
>>
Camry L4-1995cc 2.0L SOHC (2S-E)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lamp Out Sensor
Lamp Out Sensor

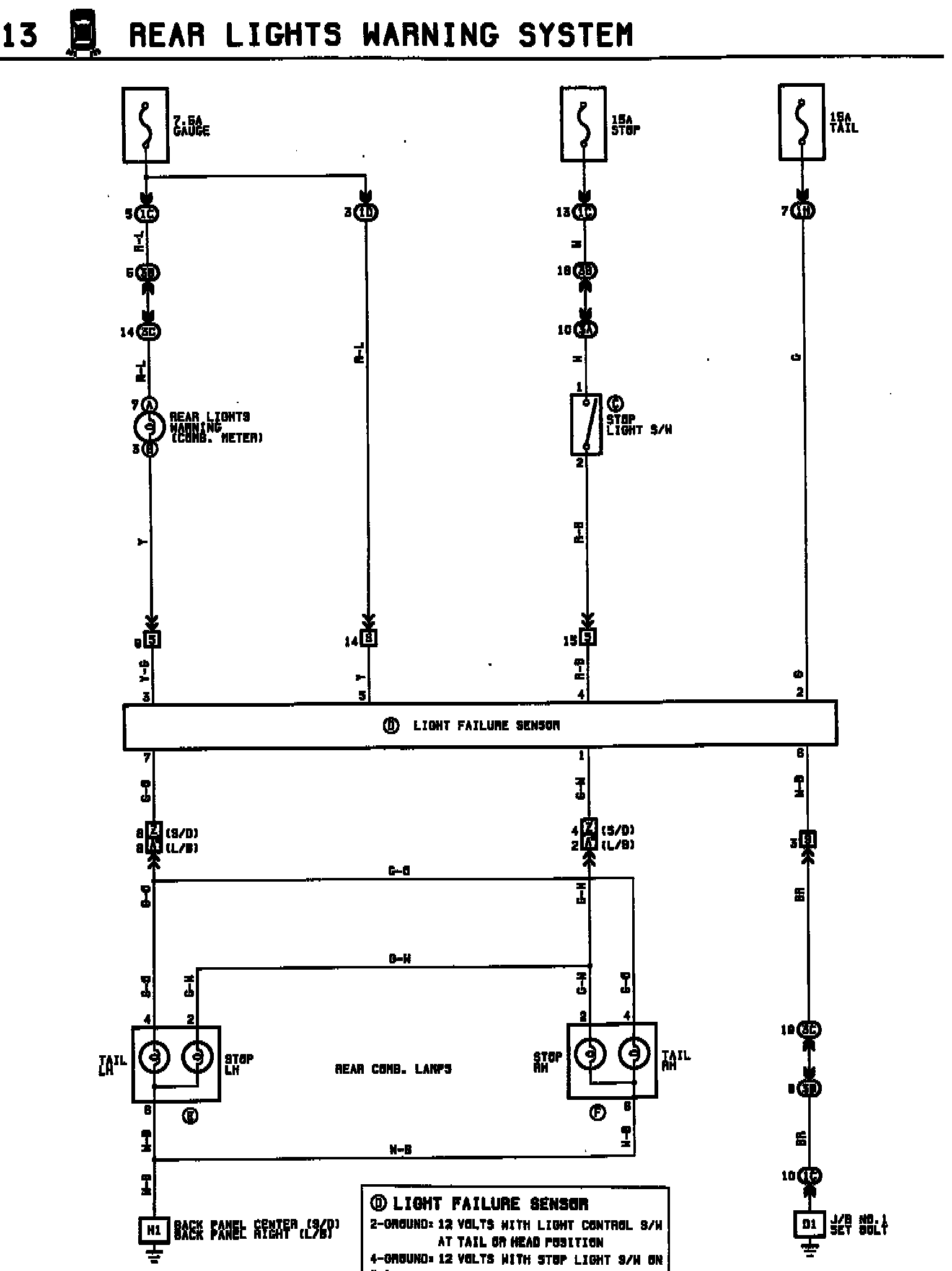

w�Light Failure Sensor:

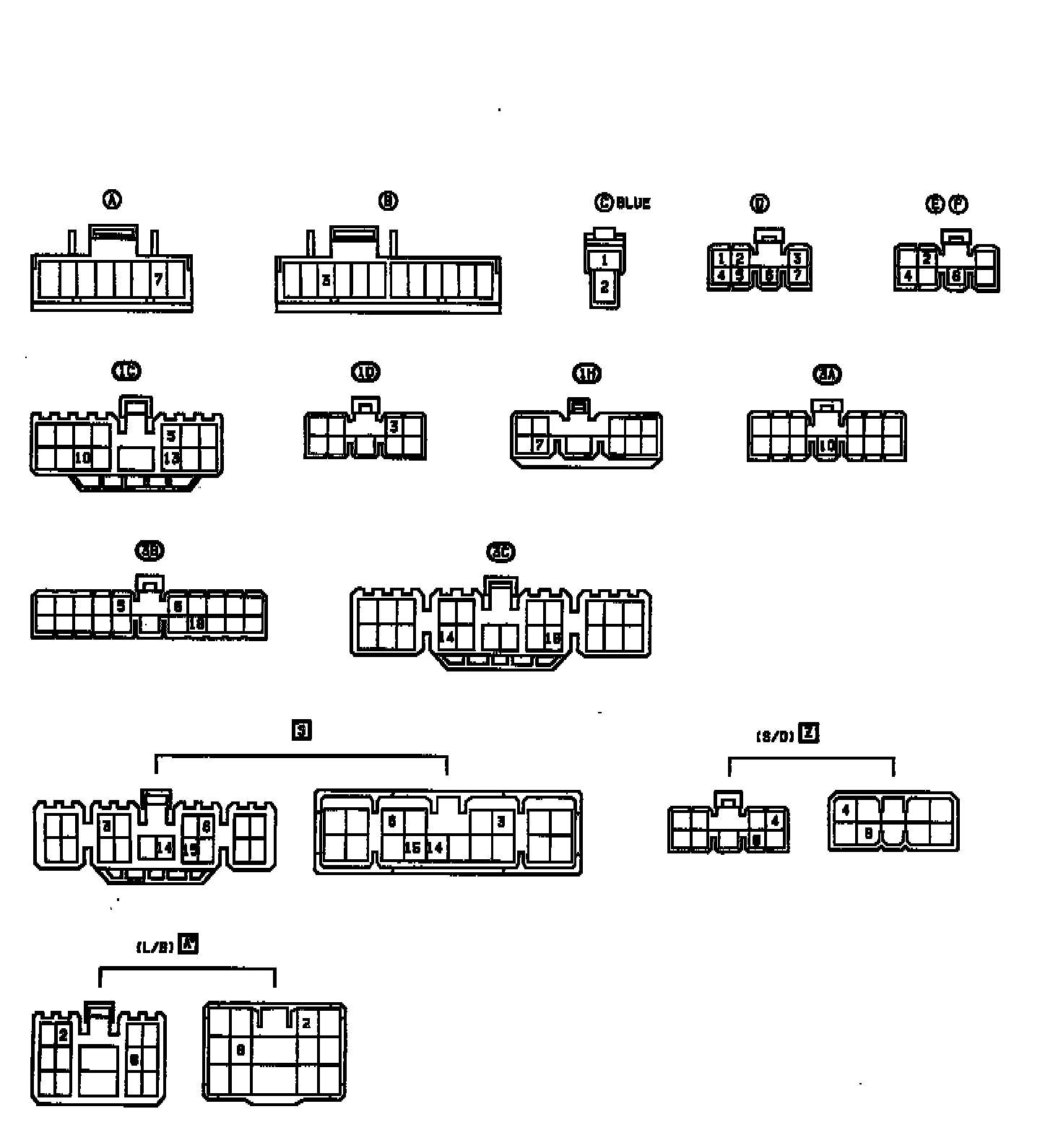

Light Failure Sensor Connections:
