Toyota
>>
1982
>>
Tercel/Cor. Tercel L4-1452cc 1AC,3A,3AC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Diagrams
>>
California
California

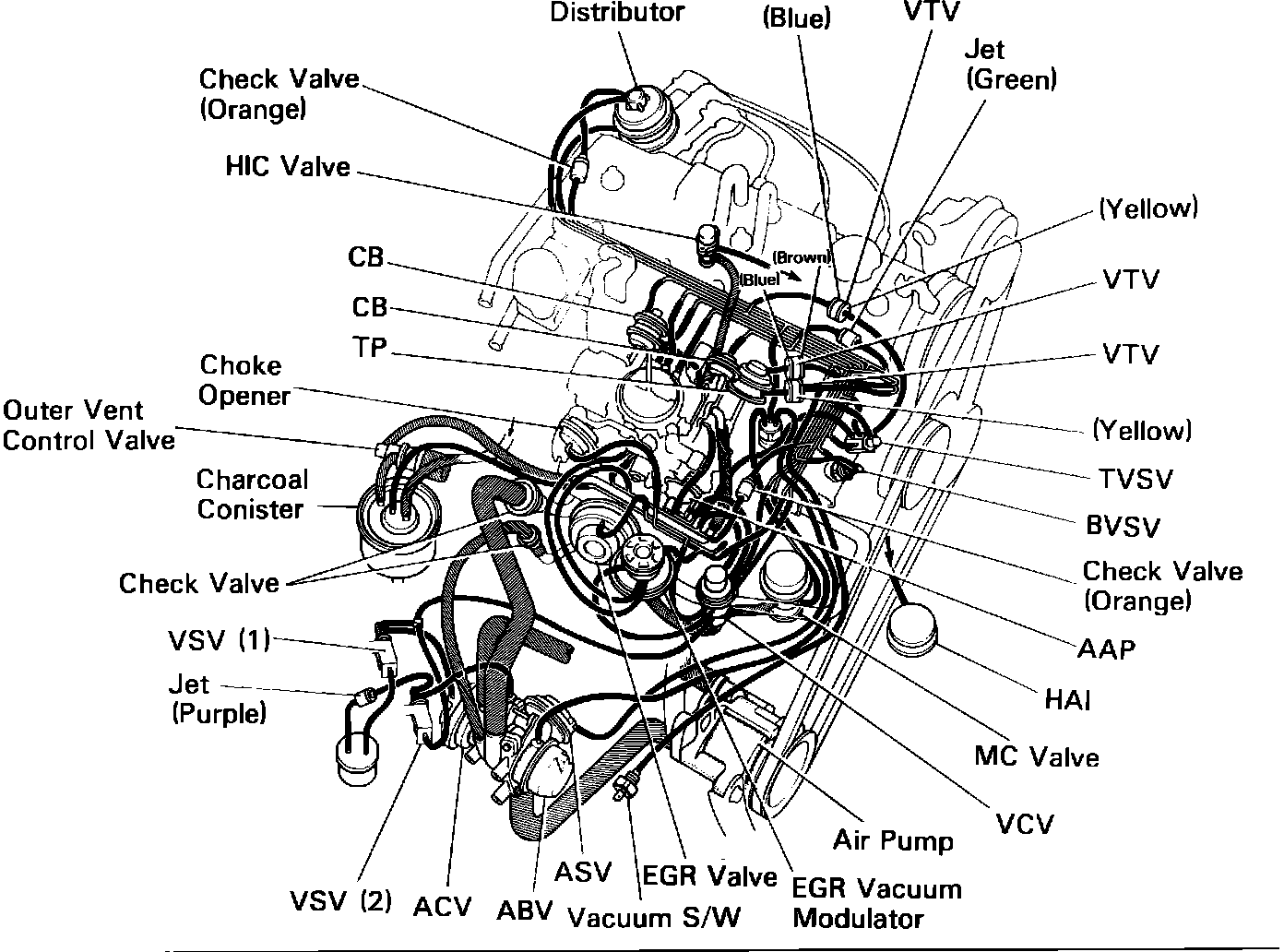

Fig. 3 Emission control system & engine compartment reference diagram.:
