W/Boost Ventilator
W/Boost Ventilator

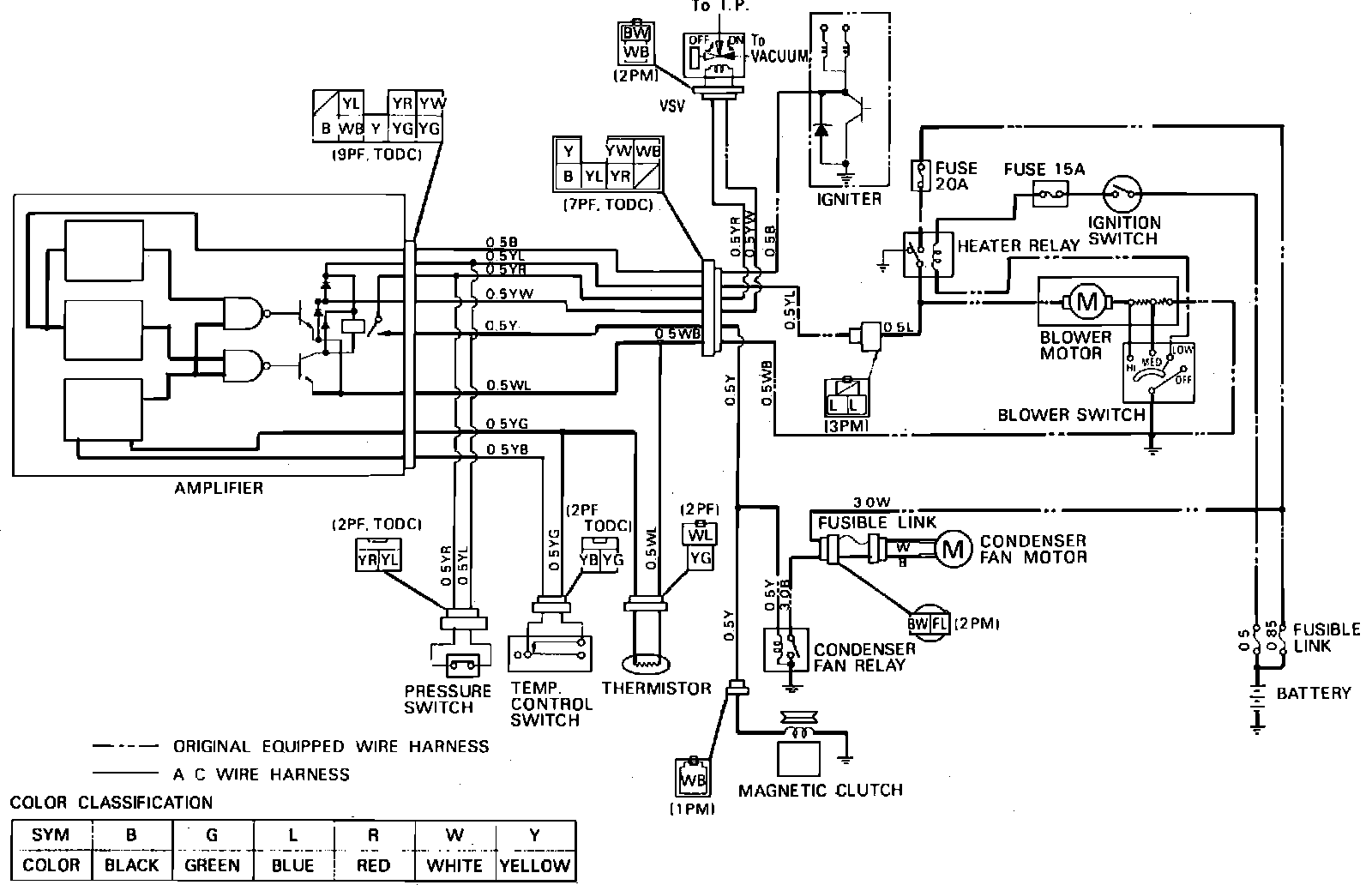

Fig. 33 Airconditioning wiring diagram, (with boost ventalator).:
