Air Conditioner Wiring Diagram
Air Conditioner Wiring Diagram

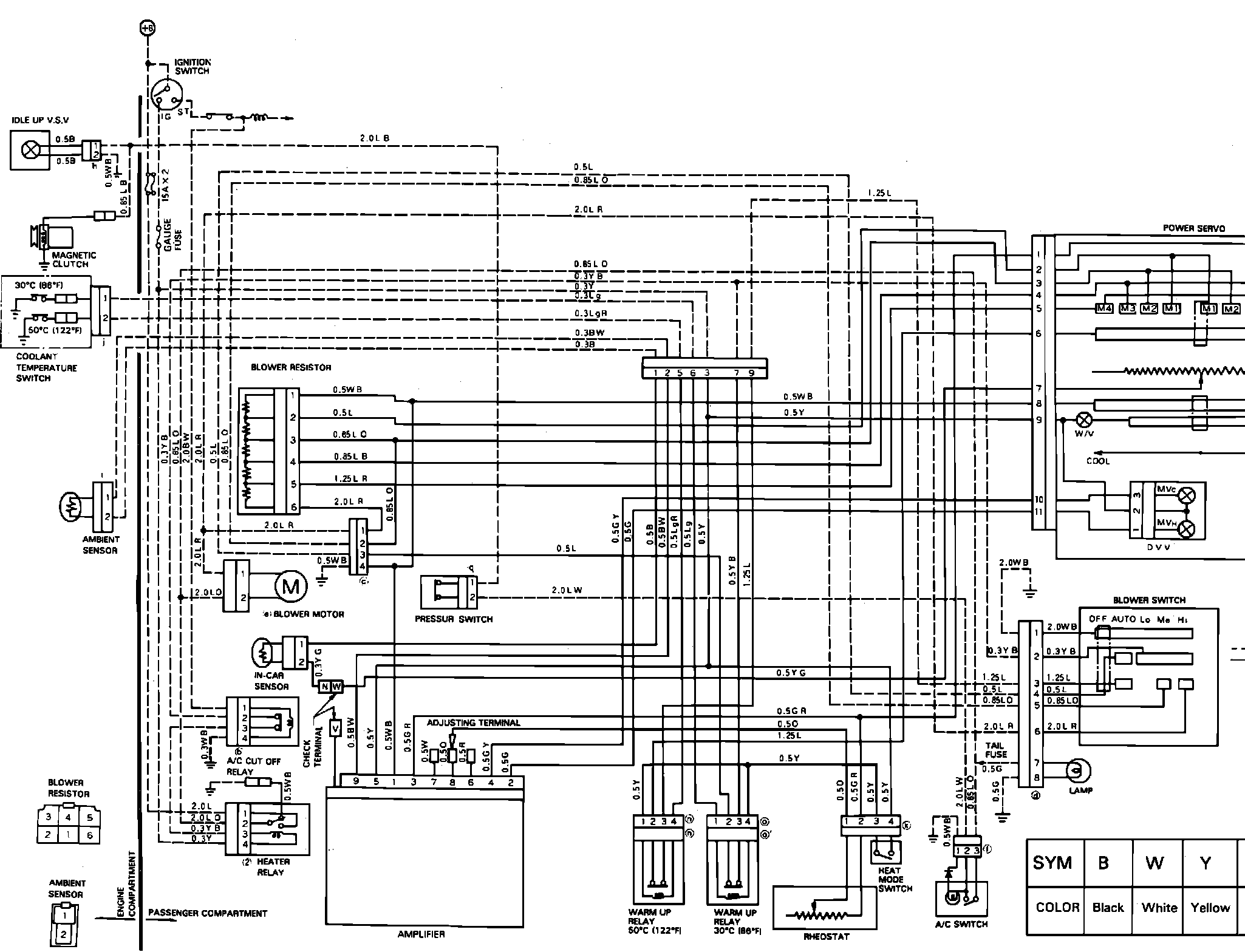

�+|Fig. 34 Wiring diagram, automatic Air-conditioning:
