Removal

3UR-FE EMISSION CONTROL: AIR INJECTION DRIVER:

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

NOTE: Some systems need to be initialized after the cable is reconnected (Repair Instruction - Initialization).

2. REMOVE AIR INJECTION CONTROL DRIVER ASSEMBLY

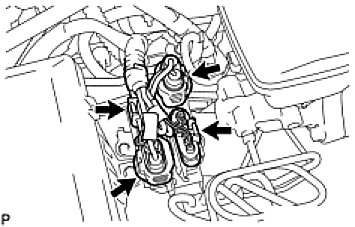

(a) Disconnect the 4 air injection control driver connectors.

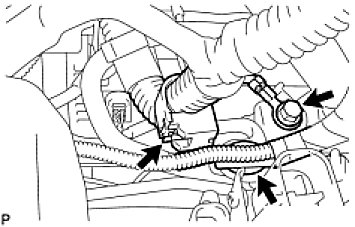

(b) Remove the bolt and disconnect the ground cable.
(c) Disconnect the 2 wire harness clamps.

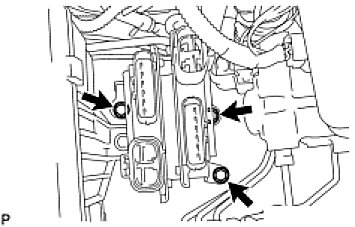

(d) Remove the 3 bolts and air injection control driver.
