Home
>>
Toyota Truck
>>
2008
>>
Tundra 4WD V8-4.7L (2UZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seats
>>
Power Seat Control Module
Power Seat Control Module

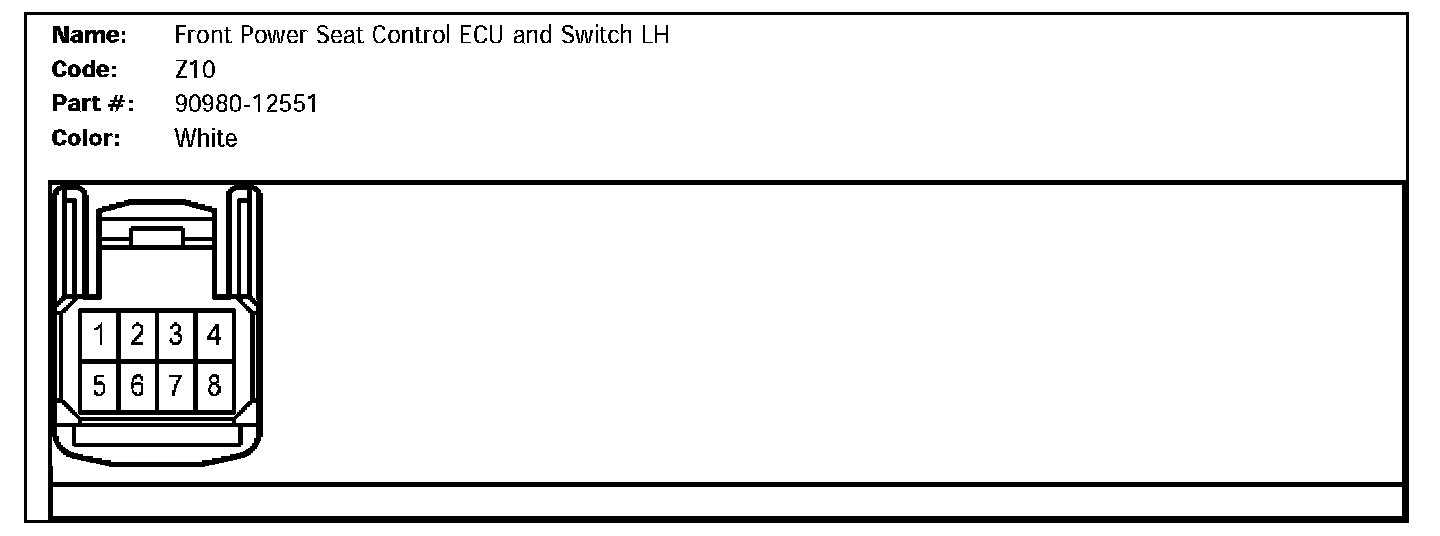

Z10 (Front Power Seat Control ECU And Switch LH):

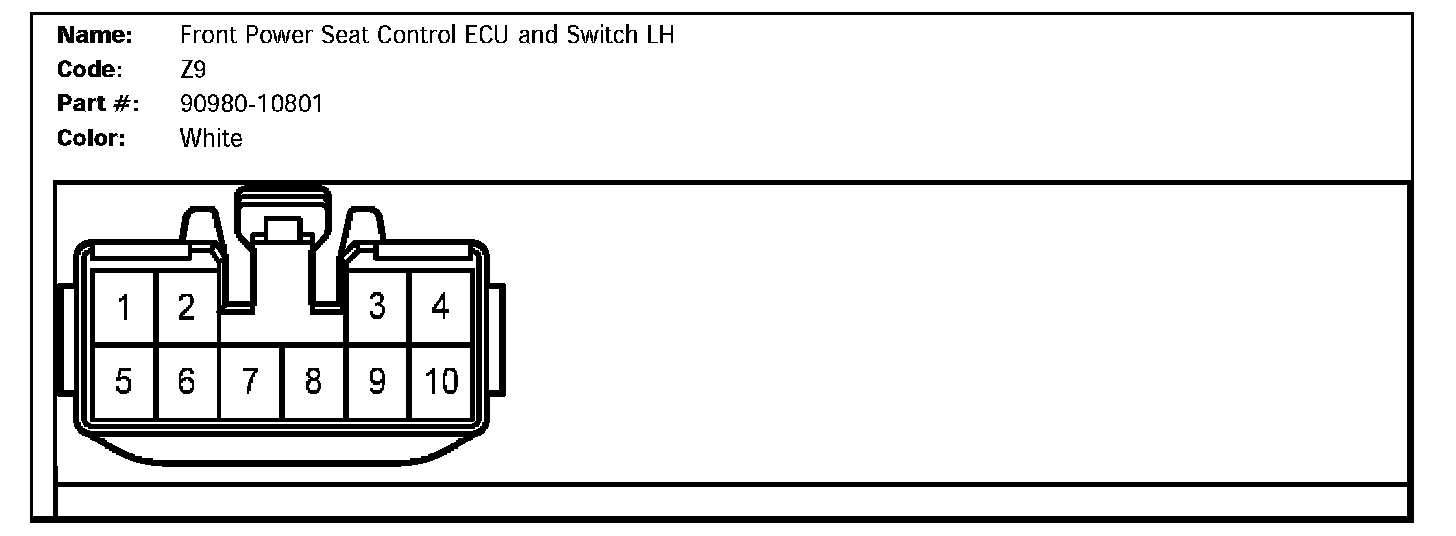

Z9 (Front Power Seat Control ECU And Switch LH):
