Installation

3UR-FE EMISSION CONTROL: AIR INJECTION DRIVER:

INSTALLATION

1. INSTALL AIR INJECTION CONTROL DRIVER ASSEMBLY

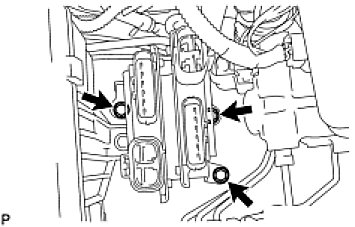

(a) Install the air injection control driver with the 3 bolts.
Torque: 8.0 Nm (82 kgf-cm, 71 in-lbf)

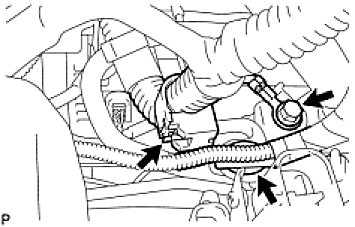

(b) Connect the 2 wire harness clamps.
(c) Install the ground cable with the bolt.
Torque: 8.0 Nm (82 kgf-cm, 71 in-lbf)

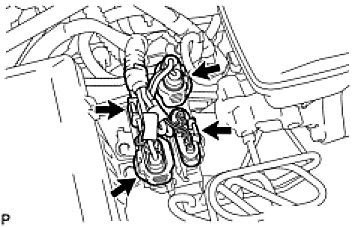

(d) Connect the 4 air injection control driver connectors.
2. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTE: Some systems need to be initialized after the cable is reconnected (Repair Instruction - Initialization).
