Installation

BRAKE CONTROL: REAR SPEED SENSOR:

INSTALLATION

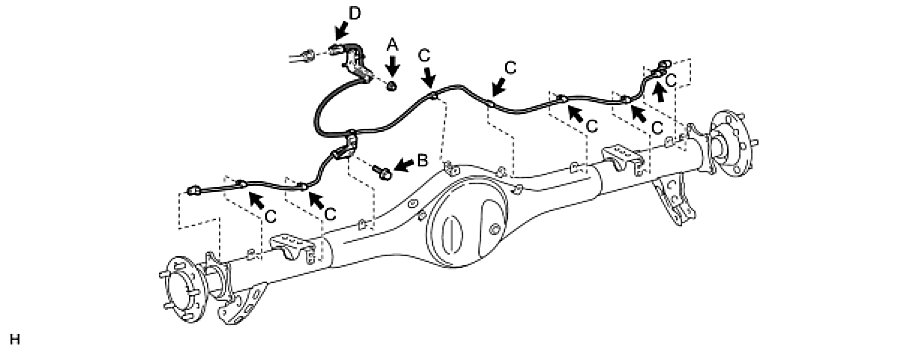

1. INSTALL SKID CONTROL SENSOR WIRE
(a) Install the sensor clamp with the nut (labeled A).
Torque: 13 Nm (127 kgf-cm, 9 ft-lbf)

NOTE: Make sure the clamp's rotation stopper touches the installation position.

(b) Install the sensor clamp with the bolt (labeled B).
Torque: 13 Nm (127 kgf-cm, 9 ft-lbf)

NOTE: When installing the clamp, do not twist the wire harness.

(c) Attach the 7 clips (labeled C).

NOTICE:
- When installing the clamps, do not twist the wire harness.
- When installing the clamps, securely insert them as shown in the illustration.

(d) Connect the sensor connector (labeled D).

NOTE: Securely connect the connector.

2. INSTALL REAR SPEED SENSOR LH

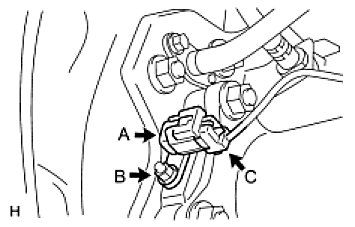

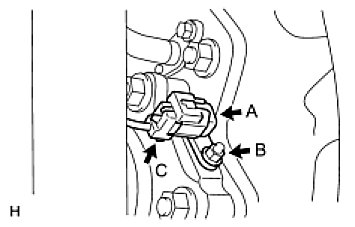

(a) Install the speed sensor (labeled A) with the nut (labeled B).
Torque: 11 Nm (107 kgf-cm, 8 ft-lbf)
(b) Connect the speed sensor connector (labeled C).

NOTE: Securely connect the connector.

4. INSTALL REAR WHEEL
for Aluminum Wheel - Torque: 131 Nm (1336 kgf-cm, 97 ft-lbf)
for Steel Wheel - Torque: 209 Nm (2131 kgf-cm, 154 ft-lbf)
5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTE: Some systems need to be initialized after the cable is reconnected (Repair Instruction - Initialization).

6. CHECK SPEED SENSOR SIGNAL
(a) Check the speed sensor signal (Test Mode Procedure).
