On-Vehicle Inspection

WIPER AND WASHER: FRONT WIPER MOTOR:

ON-VEHICLE INSPECTION

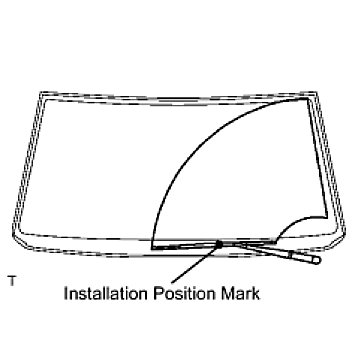

1. INSPECT FRONT WIPER MOTOR (for Driver Side)
(a) Check the automatic stop position.
(1) Operate the windshield wiper motor assembly, then stop the operation.
(2) Check the automatic stop position when stopping the windshield wiper motor assembly operation.
Standard:
Front wiper arm stops at the position shown in the illustration.

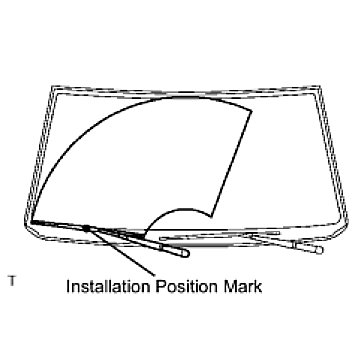

2. INSPECT FRONT WIPER MOTOR (for Front Passenger Side)
(a) Check the automatic stop position.
(1) Operate the windshield wiper motor assembly, then stop the operation.
(2) Check the automatic stop position when stopping the windshield wiper motor assembly operation.
Standard:
Front wiper arm stops at the position shown in the illustration.
