Windshield Washer Spray Nozzle: Testing and Inspection

WIPER AND WASHER: WASHER NOZZLE:

INSPECTION

1. INSPECT WASHER NOZZLE

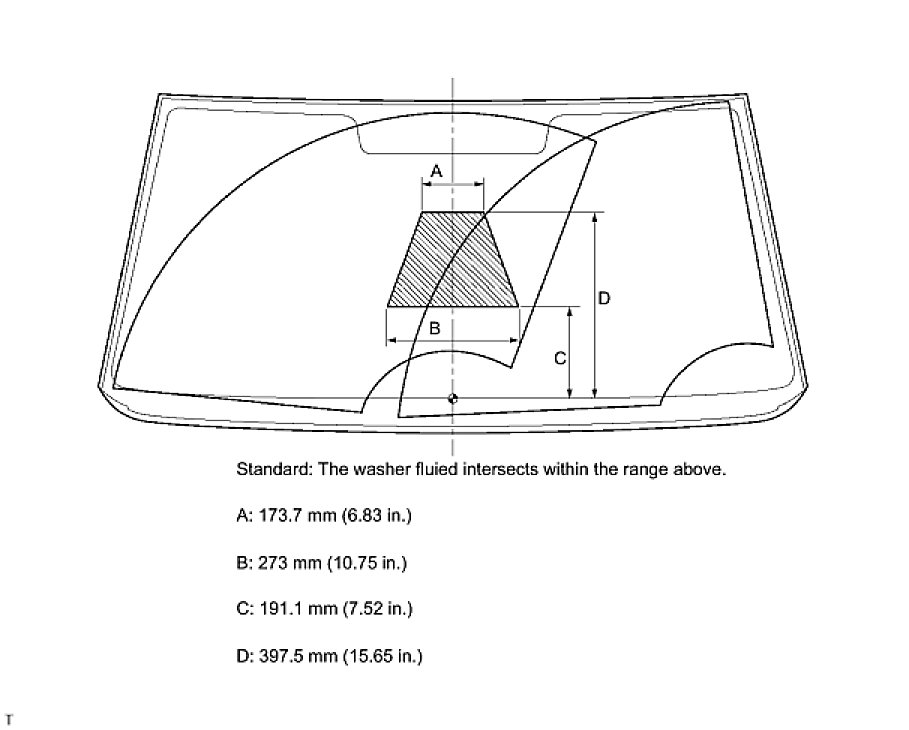

(a) With the engine running, check that the washer fluid hits in the range indicated by the hatched lines on the windshield.





HINT: This washer nozzle does not have an adjustment function because it has a spray type nozzle.
