Removal

2TR-FE EMISSION CONTROL: AIR PUMP:

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE AIR PUMP ASSEMBLY

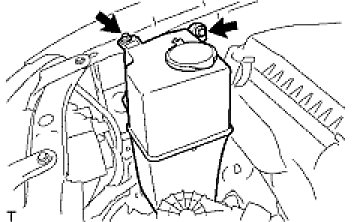

(a) Remove the 2 bolts, then separate the washer jar.

HINT: Perform the above procedure to make space for removing the air pump assy.

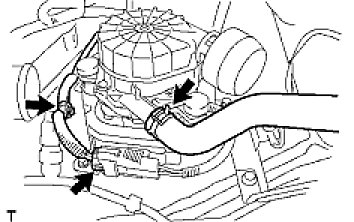

(b) Disconnect the air injection system No. 1 hose.
(c) Disconnect the air pump connector and wire harness clamp.





(d) Remove the 3 bolts, then remove the air pump with bracket.

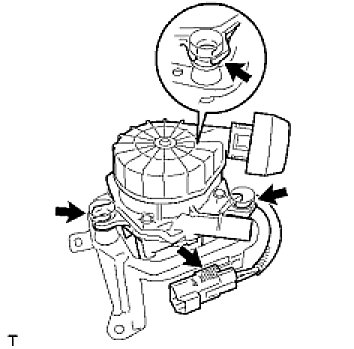

(e) Disconnect the air pump connector clamp.
(f) Disengage the 3 fittings of the air pump insulator, and remove the air pump from the bracket.
