ABS (w/ VSC), Auto LSD, Downhill Assist Control, Hill-Start Assist Control, TRAC, VSC

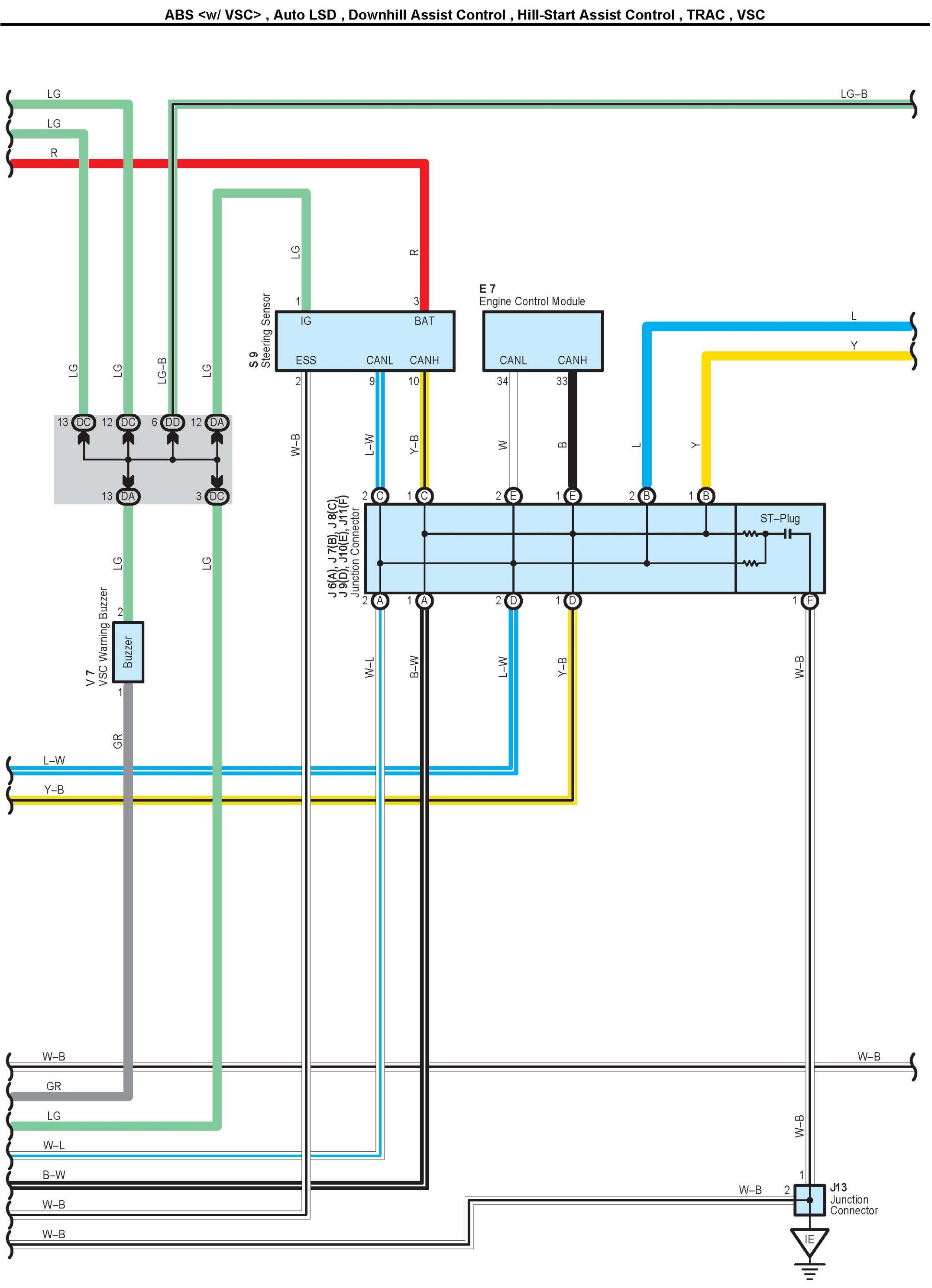

ABS (w/ VSC), Auto LSD, Downhill Assist Control, Hill-start Assist Control, TRAC, VSC Part 1:

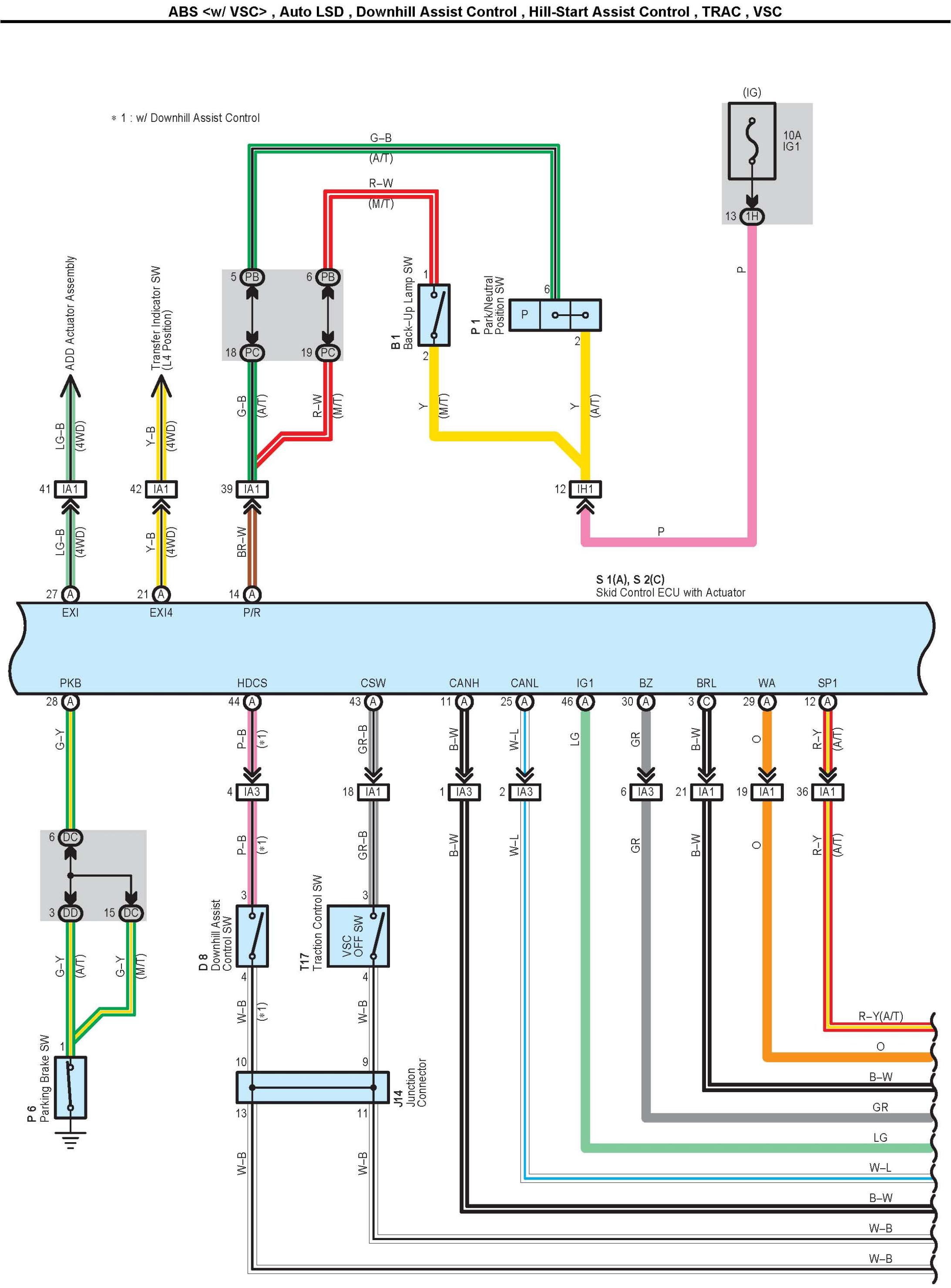

ABS (w/ VSC), Auto LSD, Downhill Assist Control, Hill-start Assist Control, TRAC, VSC Part 2:

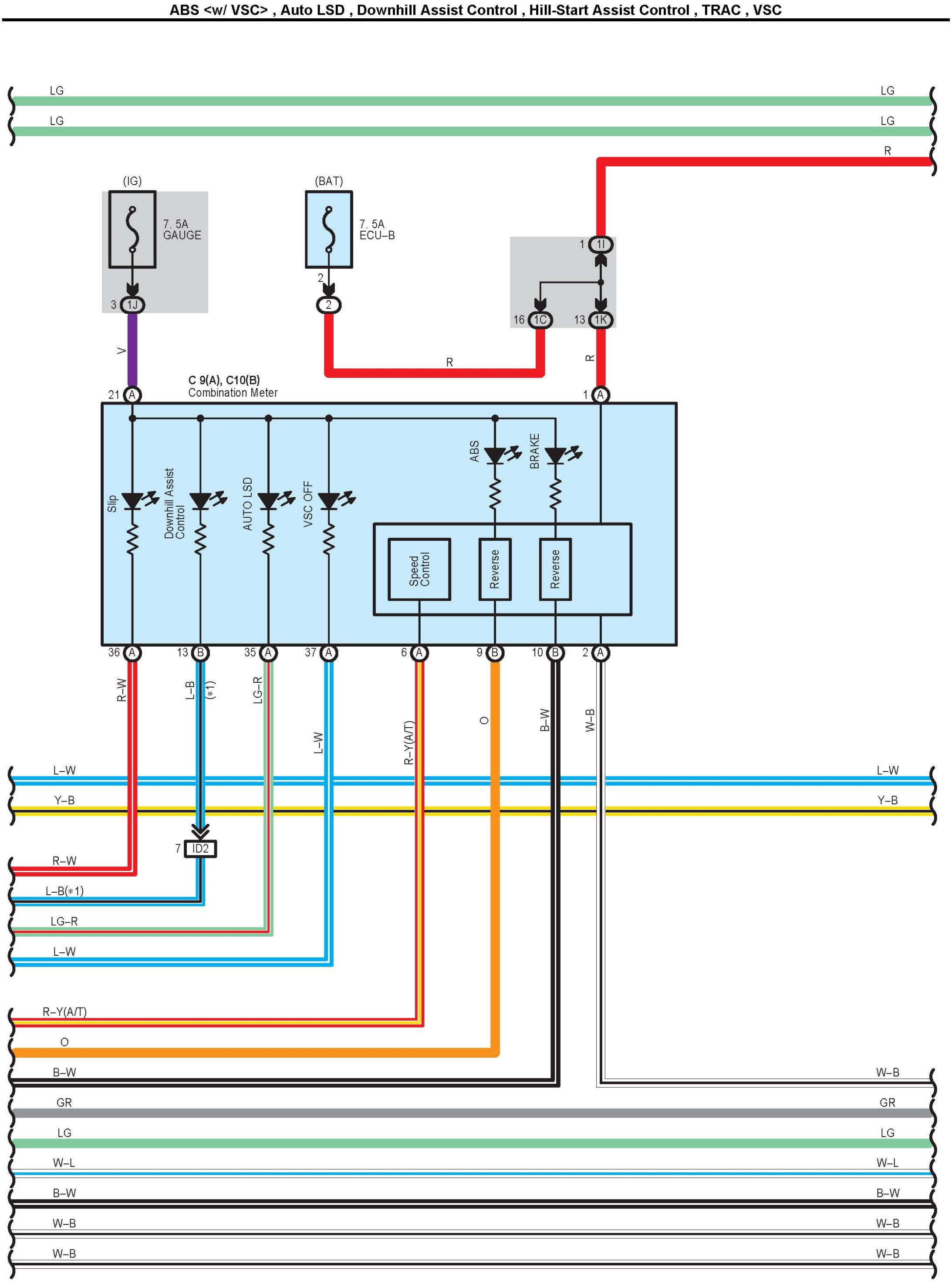

ABS (w/ VSC), Auto LSD, Downhill Assist Control, Hill-start Assist Control, TRAC, VSC Part 3:

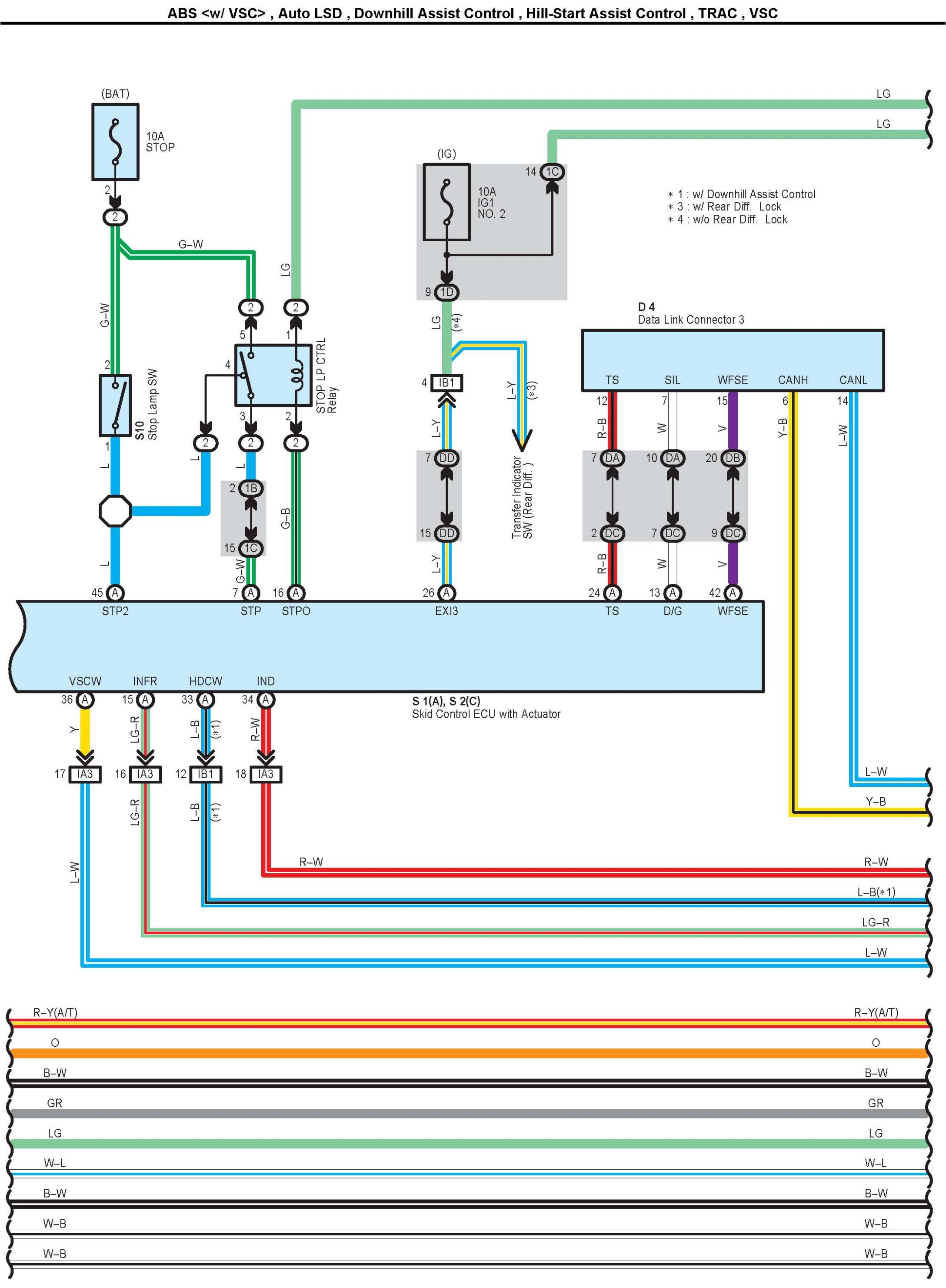

ABS (w/ VSC), Auto LSD, Downhill Assist Control, Hill-Start Assist Control, TRAC, VSC Part 4:

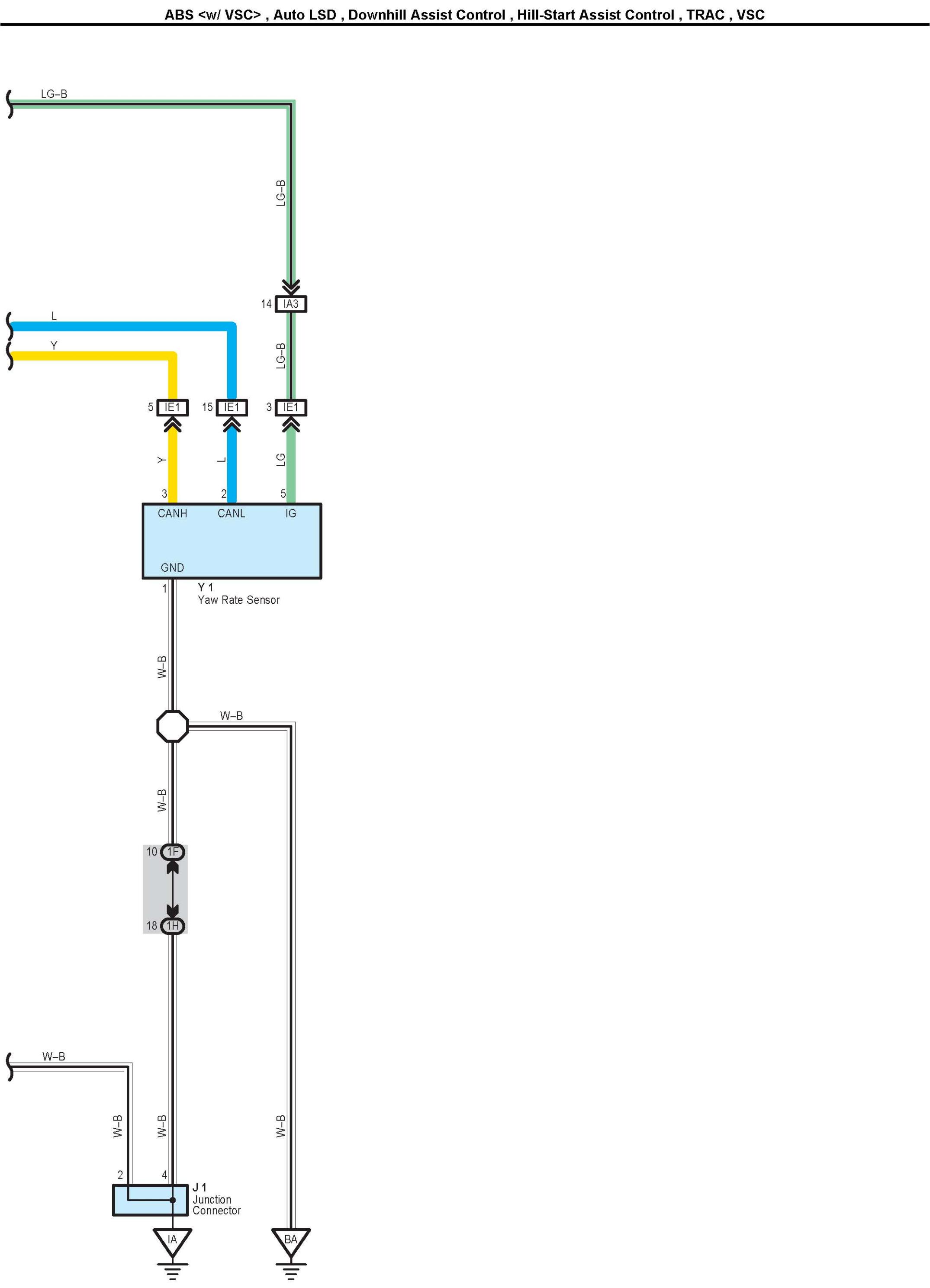

ABS (w/ VSC), Auto LSD, Downhill Assist Control, Hill-start Assist Control, TRAC, VSC Part 4:

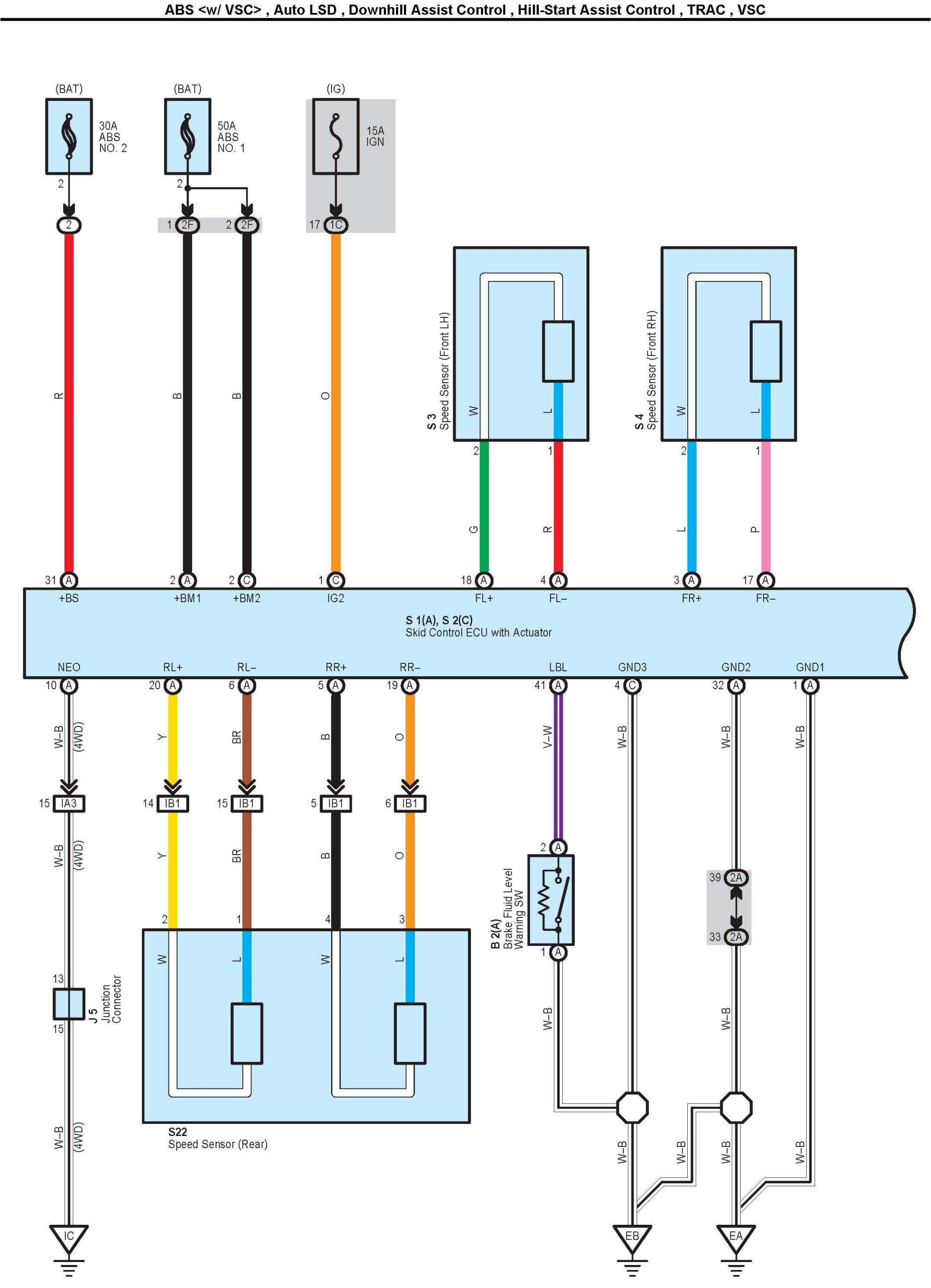

ABS (w/ VSC), Auto LSD, Downhill Assist Control, Hill-start Assist Control, TRAC, VSC Part 5:

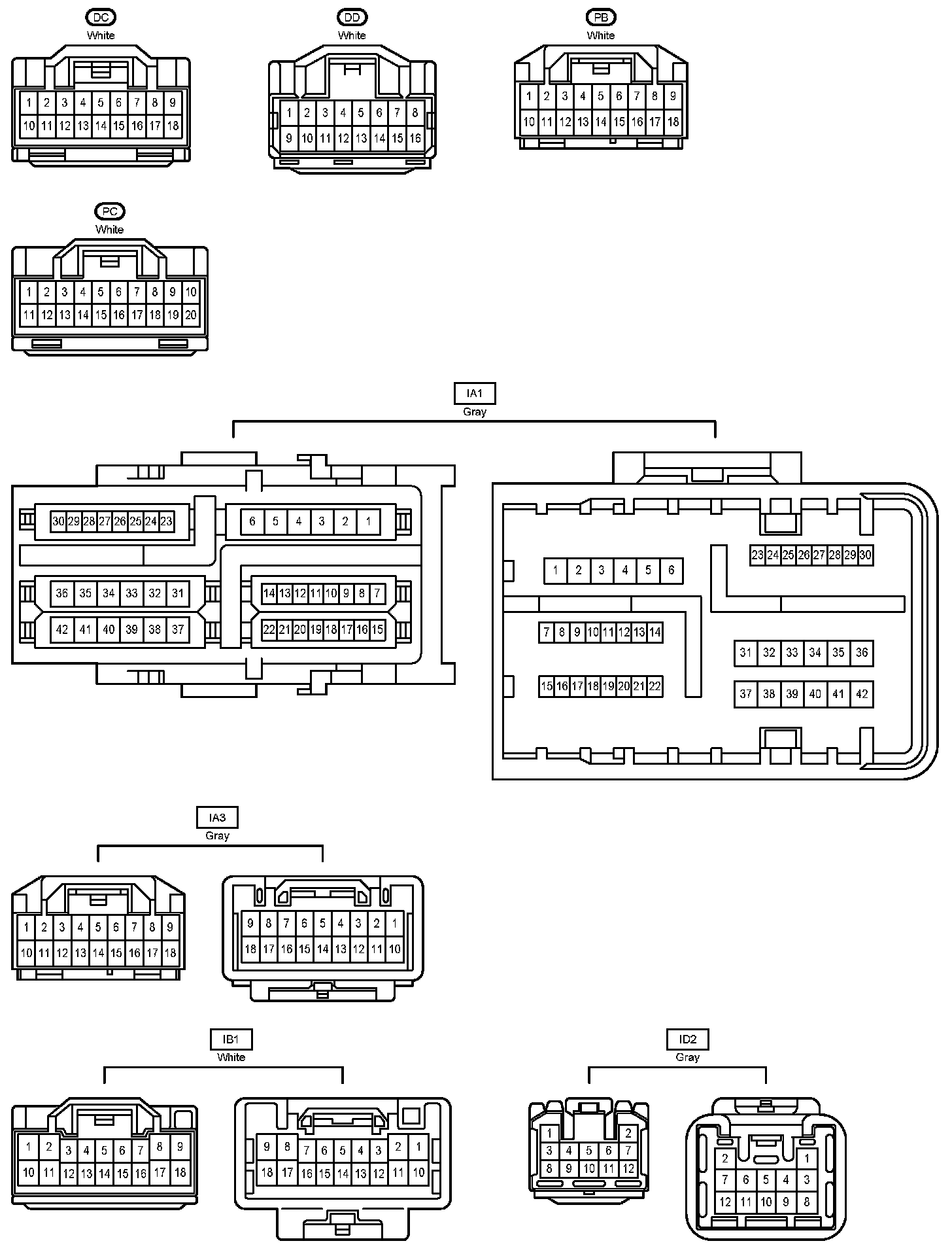

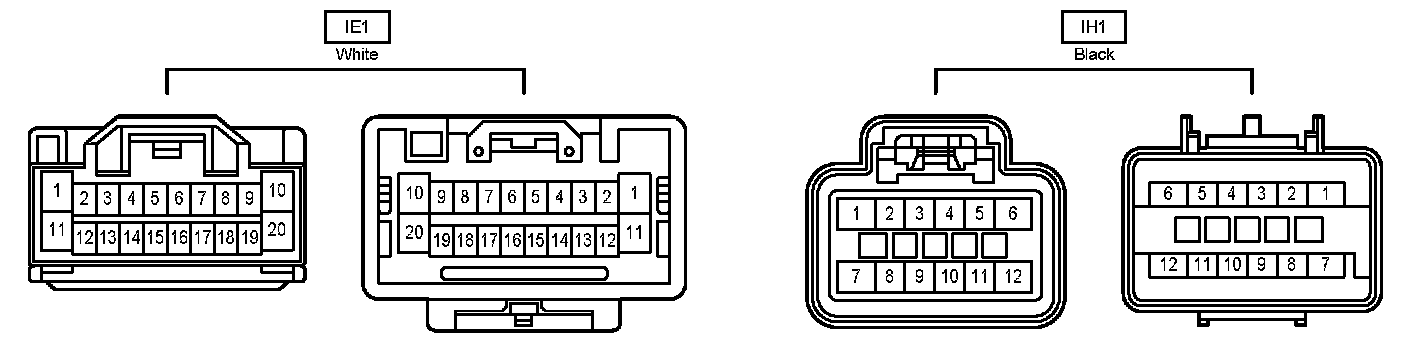

Connector Pin Outs Part 1:

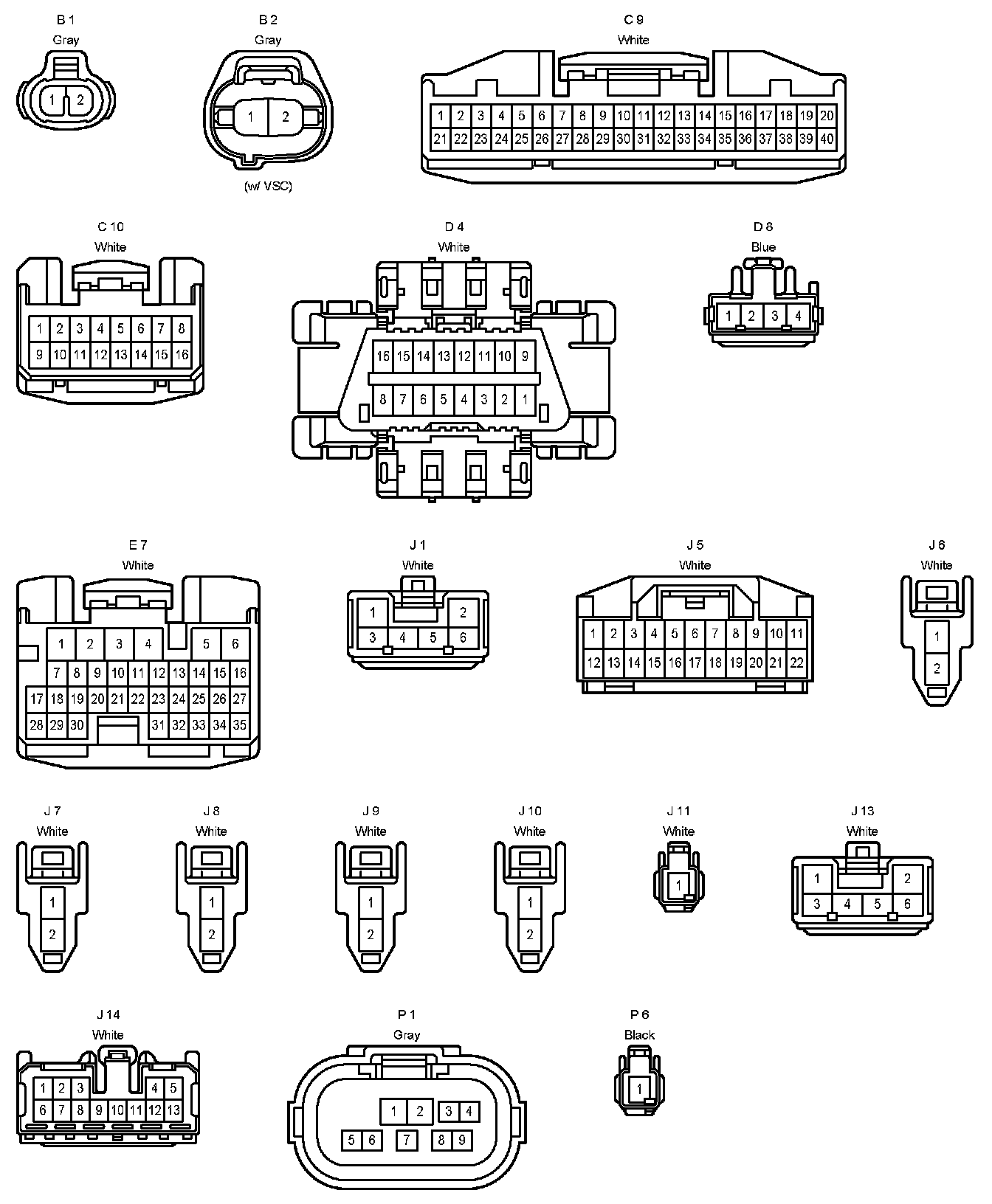

Connector Pin Outs Part 2:

Connector Pin Outs Part 3:

Connector Pin Outs Part 4:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
