Installation

BRAKE CONTROL: REAR SPEED SENSOR:

INSTALLATION

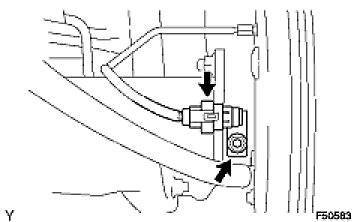

1. INSTALL REAR SPEED SENSOR
(a) Install the rear speed sensor with the nut.
Torque: 8.0 Nm (82 kgf-cm, 71 in-lbf)

NOTE: Make sure that the sensor tip is clean.

(b) Connect the speed sensor connector.
2. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 3.9 Nm (40 kgf-cm, 35 in-lbf)

3. CHECK VSC SENSOR SIGNAL (w/ VSC) (Test Mode Procedure)

4. CHECK ABS SENSOR SIGNAL (w/o VSC) (Test Mode Procedure)
