Installation

BRAKE CONTROL: FRONT SPEED SENSOR:

INSTALLATION





1. INSTALL FRONT SPEED SENSOR

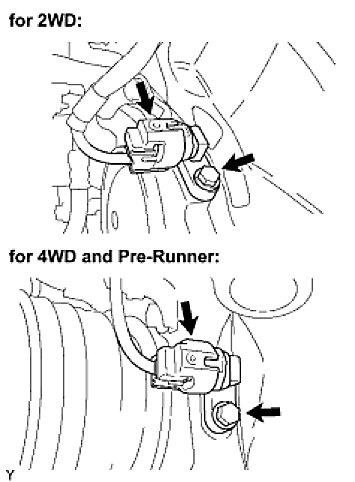

(a) Install the front speed sensor with the bolt.
Torque: 8.3 Nm (85 kgf-cm, 73 in-lbf)

NOTE: Make sure that the sensor tip is clean.

(b) Connect the speed sensor connector.
2. INSTALL FRONT WHEEL
Torque: 113 Nm (1152 kgf-cm, 83 ft-lbf)
3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 3.9 Nm (40 kgf-cm, 35 in-lbf)

4. CHECK VSC SENSOR SIGNAL (w/ VSC) (Test Mode Procedure)

5. CHECK ABS SENSOR SIGNAL (w/o VSC) (Test Mode Procedure)
