Removal

BRAKE CONTROL: BRAKE ACTUATOR (w/o VSC):

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. DRAIN BRAKE FLUID

NOTE: Immediately wash off any brake fluid that comes into contact with any painted surfaces.

3. REMOVE AIR INJECTION CONTROL DRIVER (for 2TR-FE)

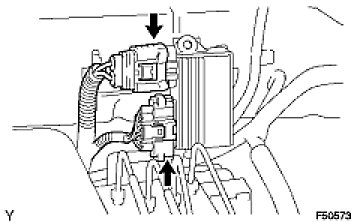

(a) Disconnect the 2 connectors.





(b) Remove the 2 bolts and air injection control driver.
4. REMOVE BRAKE ACTUATOR

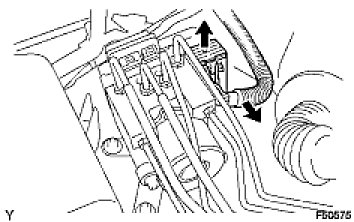

(a) Release the connector lock lever.
(b) Disconnect the brake actuator connector.

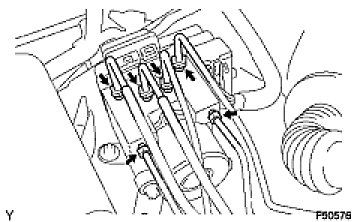

(c) Using a union nut wrench, disconnect the brake tubes from the brake actuator.

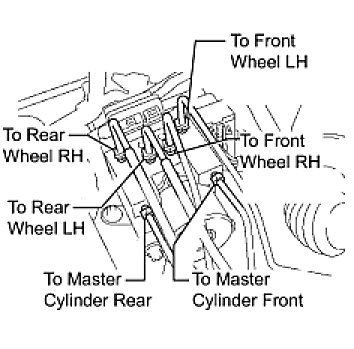

(d) Use tags or labels to identify the place to reconnect each line.

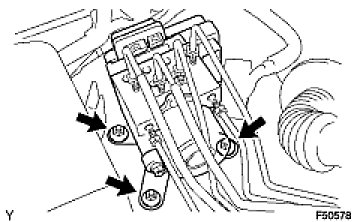

(e) Remove the 3 nuts and brake actuator with bracket.
5. REMOVE BRAKE ACTUATOR BRACKET ASSEMBLY

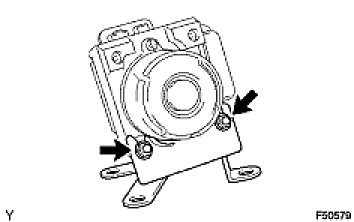

(a) Remove the 2 nuts and bracket.
