Tailgate Cover: Service and Repair

TAILGATE PROTECTOR

REMOVAL

1. REMOVE TAILGATE PROTECTOR

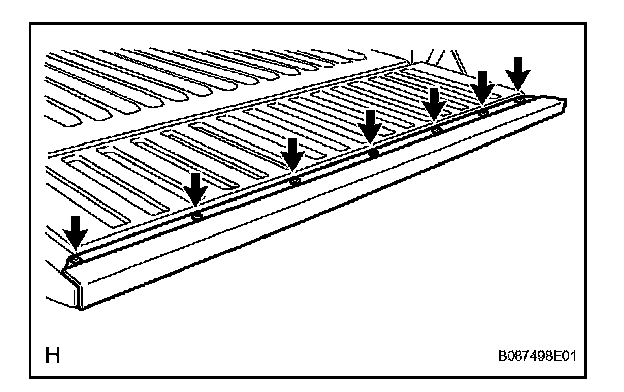

a. Using "Torx" socket wrench T30, remove the 7 screws.

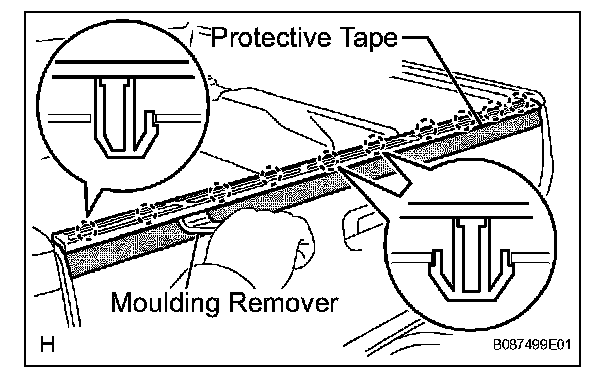

b. Apply protective tape to the outer circumference of the tailgate protector.
c. Using a moulding remover, disengage the 10 claws and remove the tailgate protector.

INSTALLATION

1. INSTALL TAILGATE PROTECTOR

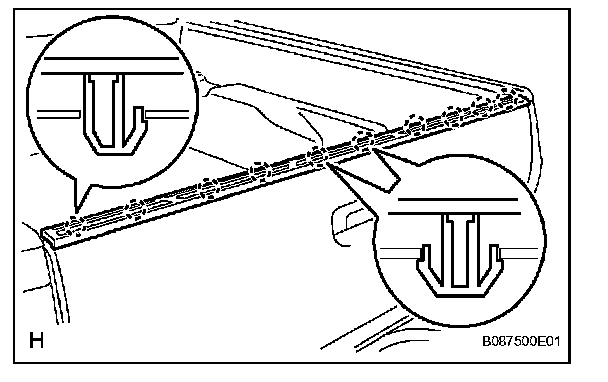

a. Engage the 10 claws and install the tailgate protector.

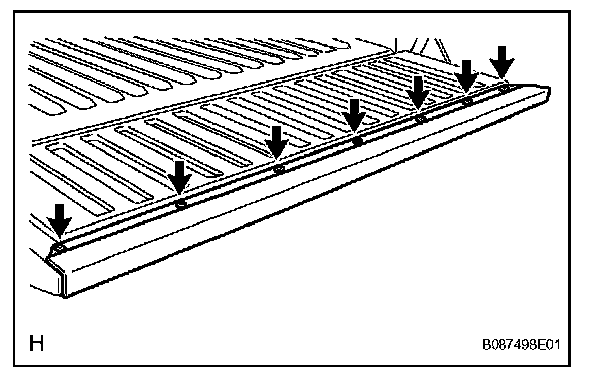

b. Using "Torx" socket wrench T30, tighten the 7 screws.
