Audio System - Distorted Sound From The Sub-Woofer

T-SB-0164-09

Rev1

May 14, 2009

Abnormal Sound from JBL Subwoofer

Service Category

Audio/Visual/Telematics

Section
Audio/Video

Market
USA

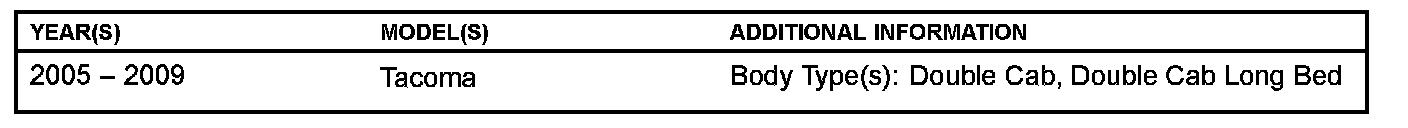

Applicability

TSB REVISION NOTICE

January 22, 2010 Rev1:

^ Applicability has been updated to include 2005 - 2008 model year Tacoma vehicles.

^ Production Change Information has been updated.

Any previous printed versions of this service bulletin should be discarded.

Introduction

Some customers may experience a distortion noise from the JBL sub-woofer. This condition can occur when listening to the CD Satellite or Auxiliary audio modes. An updated JBL amplifier is available to address this situation.

Production Change Information

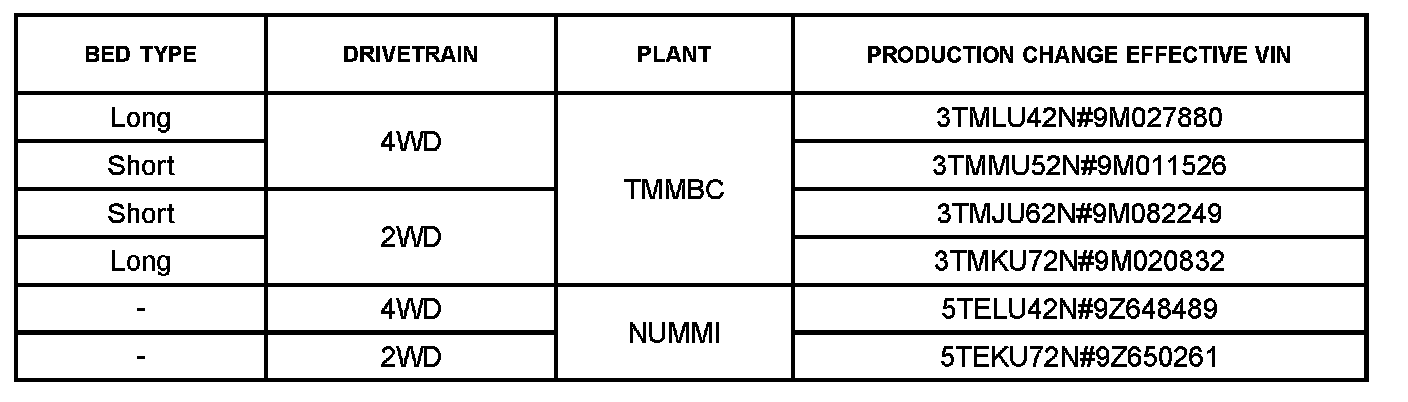

This TSB applies to all 2005 - 2009 Double Cab Tacoma vehicles equipped with JBL subwoofers and produced BEFORE the Production Change Effective VINs shown.

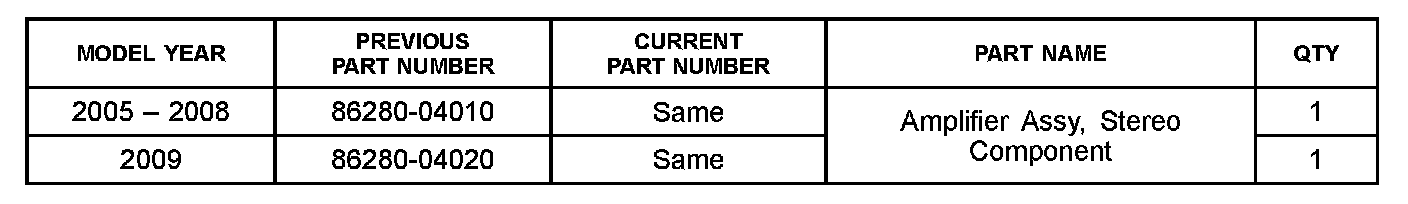

Parts Information

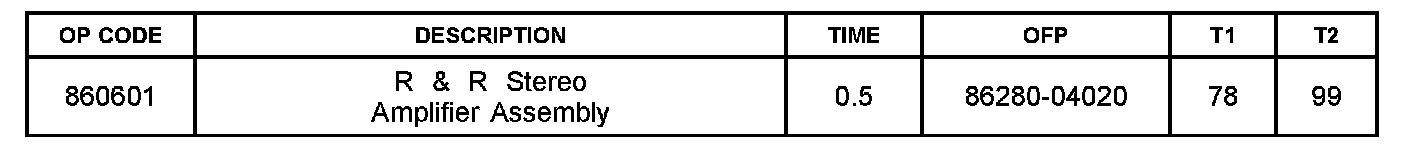

Warranty Information

APPLICABLE WARRANTY

^ This repair is covered under the Toyota Comprehensive Warranty. This warranty is in effect for 36 months or 36,000 miles, whichever occurs first, from the vehicle's in-service date.

^ Warranty application is limited to occurrence of the specified condition described in this bulletin.

Repair Procedure

1. Order a replacement amplifier through the JBL exchange program.

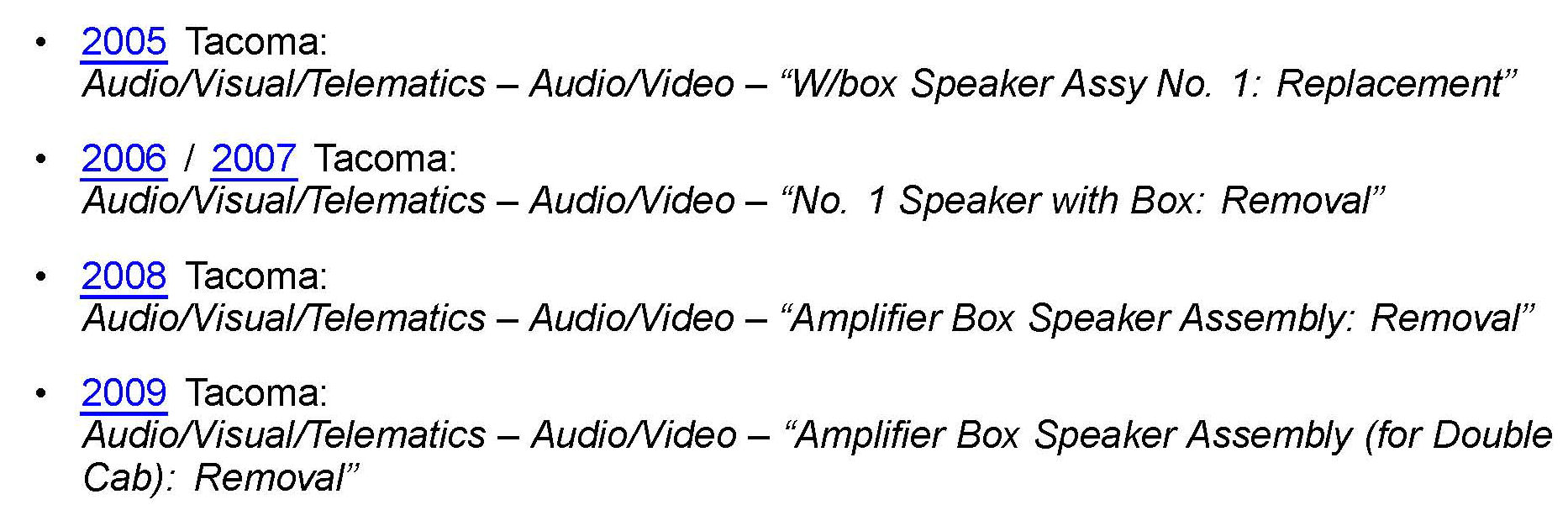

2. Remove the original JBL amplifier per the Technical Information System (TIS) applicable model year Tacoma Repair Manual:

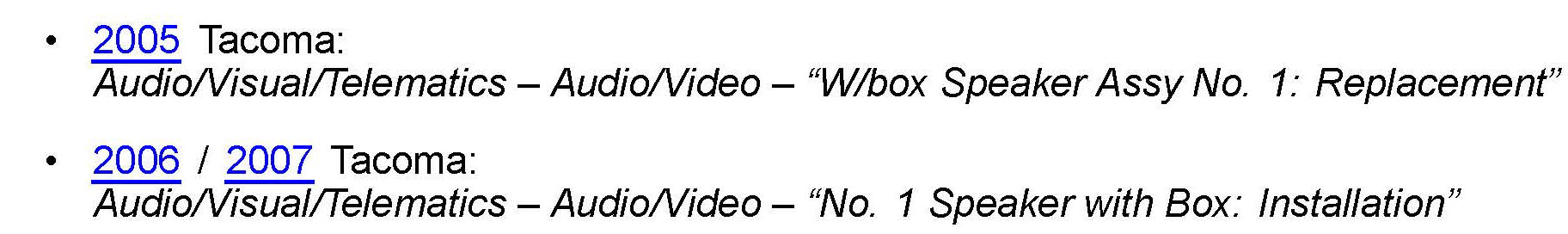

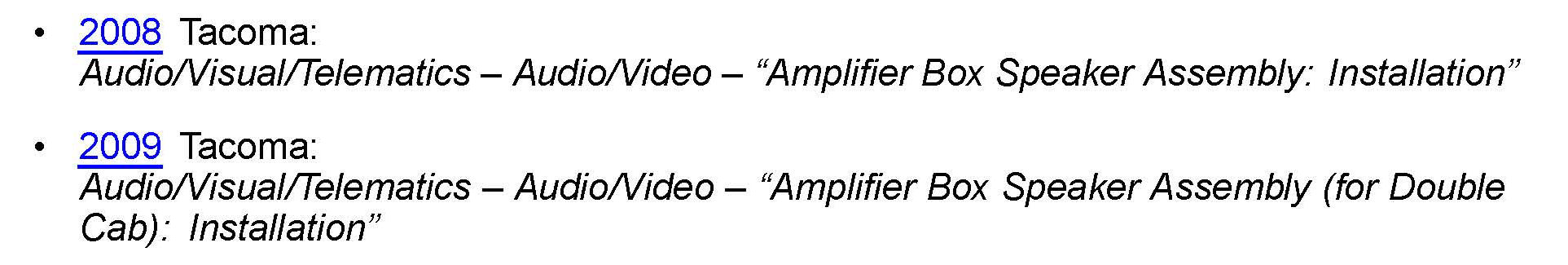

3. Install the updated JBL amplifier per TIS applicable model year Tacoma Repair Manual:

4. After replacing the amplifier confirm that the audio distortion noise condition is no longer present.
