Body - Moonroof Initialization Procedure

PRE-DELIVERY SERVICE
PD110-07

Title:
INITIALIZATION OF MOON ROOF

Models:
'08 Sienna

August 9, 2007

Introduction
As a result of the removal of the Short Pin, the "one-touch tilt up and down," "one-touch slide open and close," and lam protection" functions of the moon roof will be inoperative due to loss of the moon roof position memory stored in the microcomputer.

Initialize the moon roof after installing the Short Pin in its original location during Pre-Delivery Service (PDS).

NOTE:
Any time the battery terminal has been disconnected, the moon roof MUST be re-initialized.

Applicable Vehicles

^ 2008 model year Sienna vehicles.

Initialization Procedure





1. Turn the ignition switch to the "IG-ON" position.

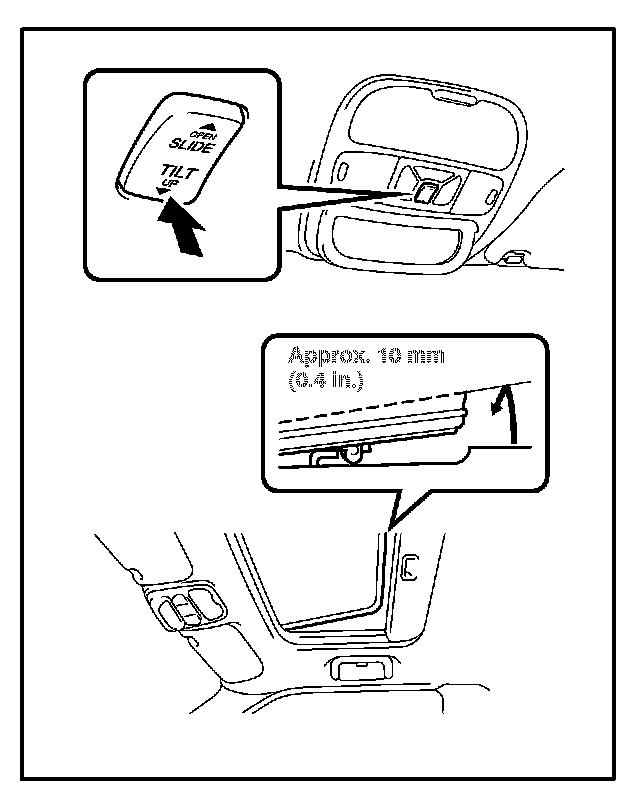

2. Push and hold the TILT UP" side of the switch until the moon roof tilts all the way up and then tilts down slightly (approximately 10 mm [0.4 in.] at rear end).

3. Check for proper operation of the "one-touch slide open and close" and "one-touch tilt up and down" functions by pushing the switch briefly to the "SLIDE OPEN" and "TILT UP" positions.

NOTE:
Jam protection function becomes enabled through the above initialization procedure.

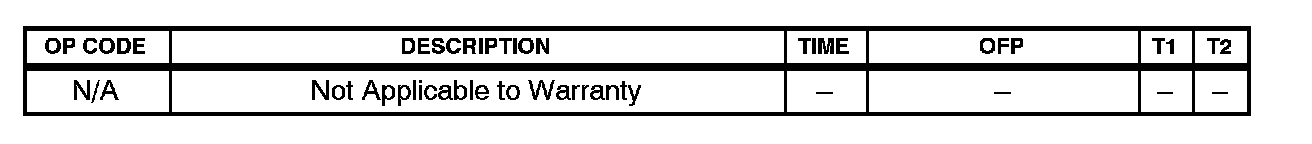

Warranty Information
