Rear Speed Sensor

BRAKE CONTROL: REAR SPEED SENSOR (for 2WD): INSPECTION

INSPECTION

1. INSPECT REAR SPEED SENSOR
(a) Disconnect the skid control sensor connector.

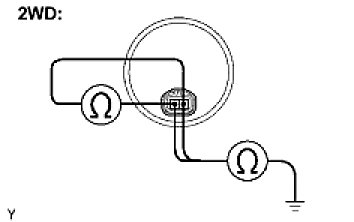

(b) Measure the resistance between terminals 1 and 2 of the skid control sensor connector.
OK:
Resistance
less than 2.2 kOhms
(c) Measure resistance between each of terminals 1 and 2 of the skid control sensor connector and body ground.
OK:
Resistance
1MOhms or higher
