Installation

BRAKE CONTROL: REAR SPEED SENSOR (for 2WD): INSTALLATION

INSTALLATION
HINT: Install the RH side by the same procedure as the LH side.

1. INSTALL REAR SPEED SENSOR






(a) Clean the contacting surface of the axle hub and a new skid control sensor.
NOTE: Keep the sensor rotor clean.

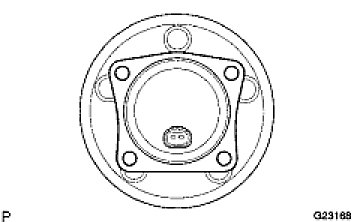

(b) Place the speed sensor on the axle hub so that the connector is positioned as shown in the illustration.

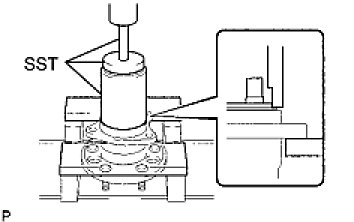

(c) Using SST and a press, install the skid control sensor to the axle hub.
SST: 09214-76011
- Do not tap the skid control sensor with a hammer directly.
- Check that there is no foreign matter on the skid control sensor detection portion.
- Press in the skid control sensor straight and slowly.

2. INSTALL REAR AXLE HUB & BEARING ASSEMBLY LH Installation

3. INSTALL REAR BRAKE DRUM SUB-ASSEMBLY (for Drum Type)
(a) Aligning the matchmarks, install the rear brake drum sub-assembly.
4. INSTALL REAR DISC (for Disc Type)
(a) Aligning the matchmarks, install the rear disc.
5. INSTALL REAR DISC BRAKE CALIPER ASSEMBLY LH (for Disc Type)
(a) Install the rear disc brake caliper assembly LH with the 2 bolts.
6. SKID CONTROL SENSOR WIRE
(a) Connect the connector to the skid control sensor connector.
7. INSTALL REAR WHEEL
8. INSPECT AND ADJUST REAR WHEEL ALIGNMENT Service and Repair.

9. CHECK ABS SPEED SENSOR SIGNAL ABS (Antilock Brake System).
