Installation

WIPER AND WASHER: FRONT WIPER RUBBER: INSTALLATION

INSTALLATION

1. INSTALL FRONT WIPER RUBBER

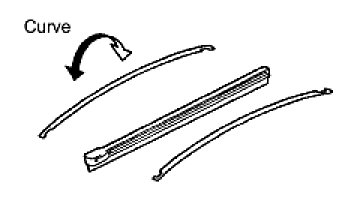

(a) Install the wiper rubber backing plates to the front wiper rubber.
NOTE: Be careful about the right side and the wrong side of the backing plates.

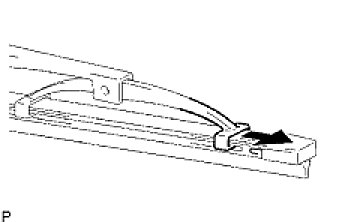

(b) Install the front wiper rubber so that the head part (Larger side) of the wiper rubber faces the arm axle side.
NOTE: Push the front wiper blade into the grooves of the wiper rubber to engage them completely.
