WINDSHIELD / WINDOWGLASS: REAR SIDE WINDOW GLASS: REMOVAL

REMOVAL
HINT: On the RH side, use the same procedures as on the LH side.

1. REMOVE REAR NO. 1 SEAT ASSEMBLY LH
HINT:
- Captain seat type: Removal
- Center seat type: Removal

2. REMOVE REAR DOOR WEATHERSTRIP LH
3. REMOVE ROPE HOOK ASSEMBLY
4. REMOVE BACK DOOR SCUFF PLATE Removal

5. REMOVE ROOF HEADLINING GARNISH REAR
6. REMOVE REAR DOOR SCUFF PLATE LH
7. REMOVE QUARTER TRIM PANEL ASSEMBLY LH
8. REMOVE RR WINDOW SIDE GARNISH ASSEMBLY NO.2 LH
9. REMOVE RR WINDOW SIDE GARNISH ASSEMBLY LH

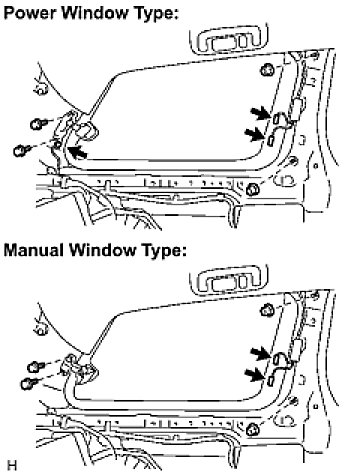

10. REMOVE SIDE WINDOW ASSEMBLY REAR LH






(a) Disconnect the connectors.
(b) Remove the 2 nuts and 2 bolts.
Bolt - Torque: 5.5 Nm (56 kgf-cm, 49 in-lbf)
(c) Remove the window.
11. REMOVE POWER VENT WINDOW MOTOR ASSEMBLY LH (POWER WINDOW TYPE)

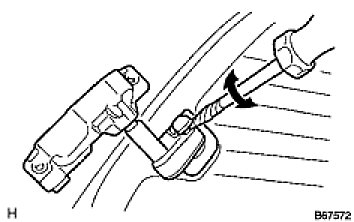

(a) Using a screwdriver, remove the window motor.
12. REMOVE QUARTER WINDOW LOCK ASSEMBLY LH (MANUAL WINDOW TYPE)
(a) Remove the screw and window lock.
13. REMOVE SIDE REAR WINDOW WEATHERSTRIP LH
